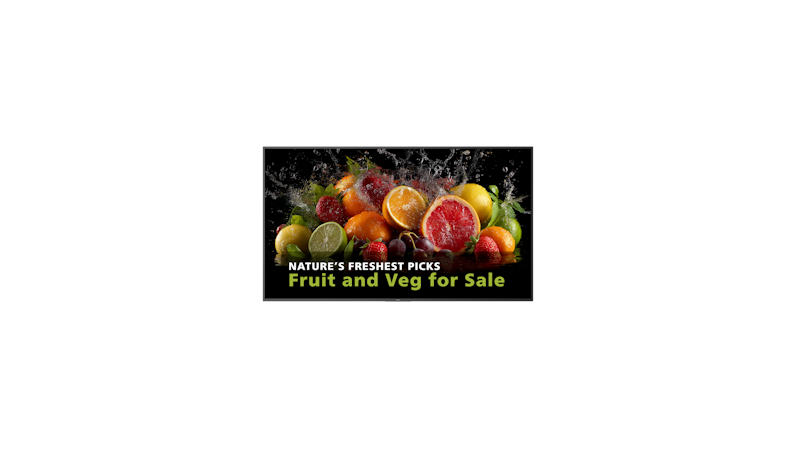

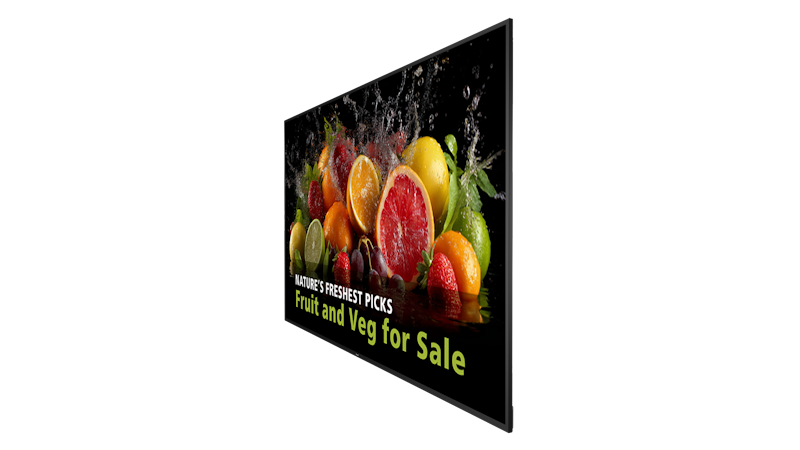

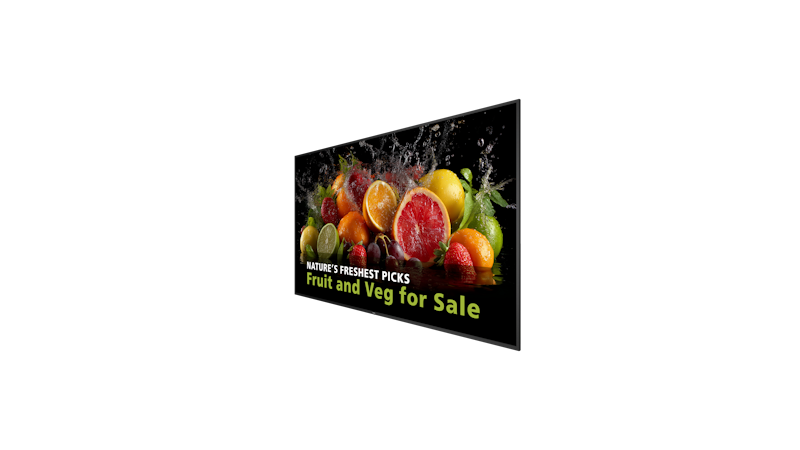

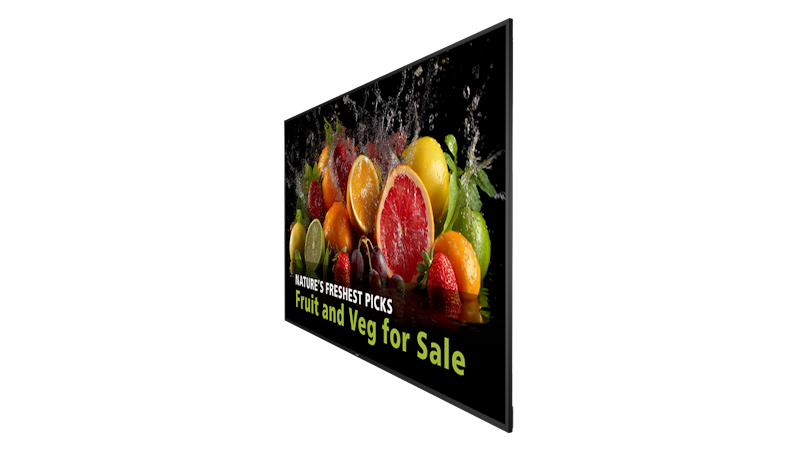

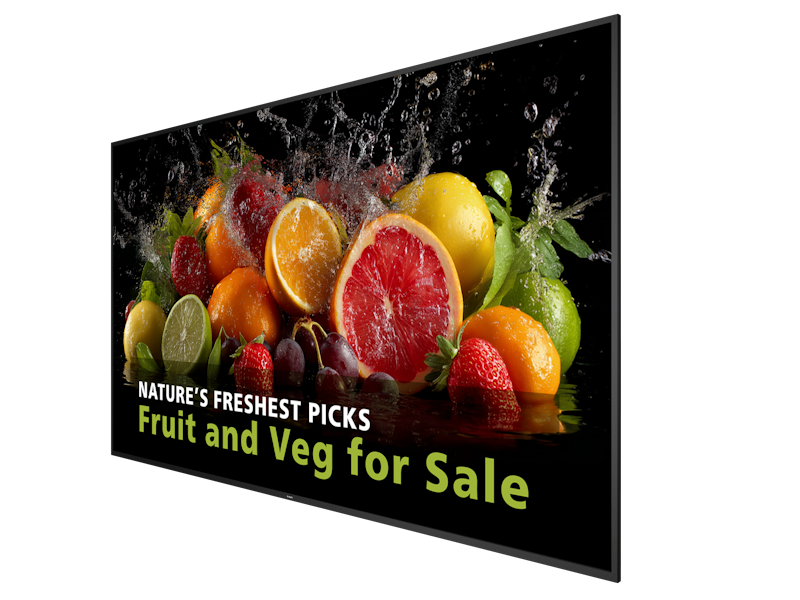

98BDL5050D/00

5000 Series / D-Line

Go beyond the ordinary. Captivate audiences and elevate their experience with the Philips Signage 5000. Powered by Android 14 for smooth integrations, this versatile 24/7 display steps up to deliver exceptional performance in any setting.

Size: 98”

98” 86” 75” 65” 55” 50” 43” 32”

Get a quote

Connectivity Toggle

Video output	HDMI 2.0
Audio output	3.5 mm jack
Other connections	4G/LTE antenna connectors, Micro USB, USB 3.0,
External control	RJ45, RS232C 2.5 mm jack, IR 3.5 mm jack, Wi-Fi 6, Bluetooth 5.2,
Video input	DisplayPort 1.4, HDMI 2.0, USB-C,

Convenience Toggle

Network controllable	RS232, External 4G mPCIe slot, RJ45,
Tiled Matrix	Up to 10 x 15
Energy-saving functions	Smart Power
Signal loop through	RS232, IR Loop through, HDMI1, HDMI 2, Android SoC,
Keyboard control	Hidden, Lockable,
Screen-saving functions	Pixel Shift
Placement	Landscape, Portrait,

Accessories Toggle

Included Accessories	RS232 daisy-chain cable, Philips logo, AC Switch Cover, USB Cover, Screws, AC Power Cord, IR sensor cable, Quick start guide, Remote control and AAA batteries, RS232 cable, CRD32 Wi-Fi and BT module,

Dimensions Toggle

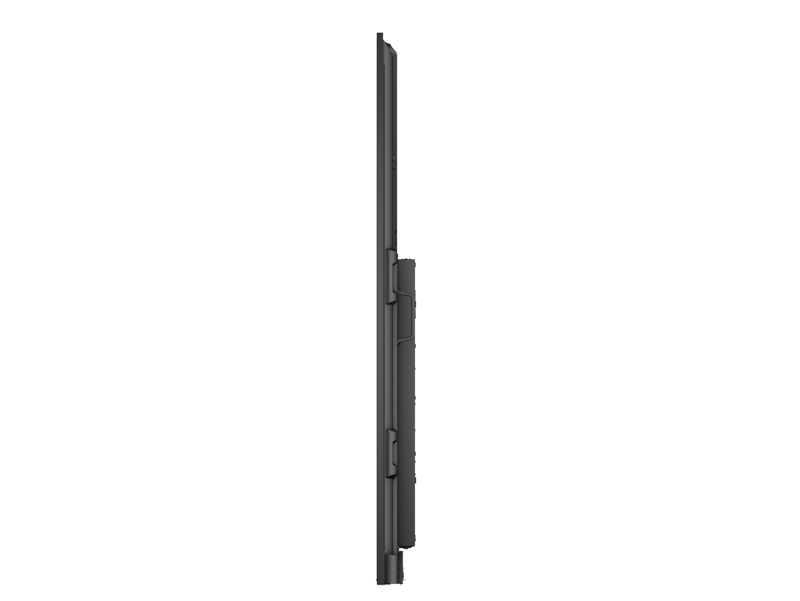

Set Depth	90/94.1 mm

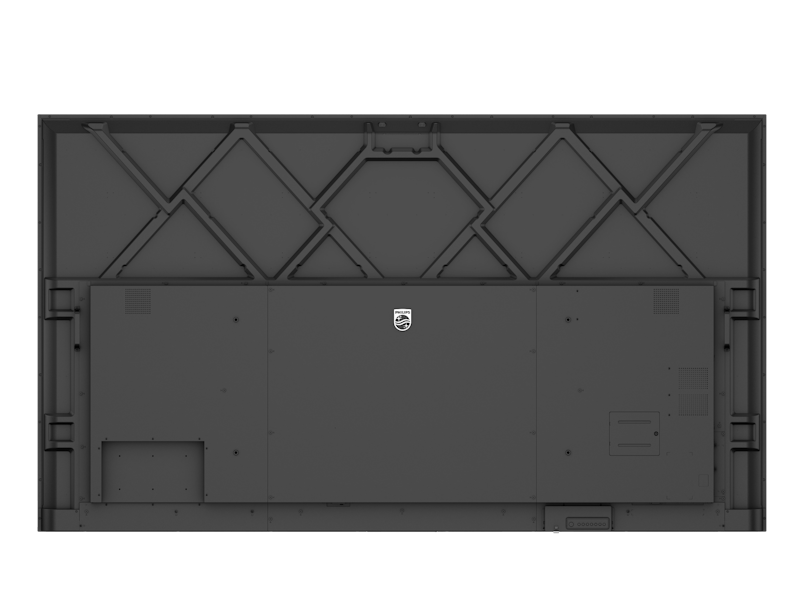

Wall Mount	1000 x 400 mm, M8
Set Height	1255.3 mm
Set Width	2193.4 mm
Set Width (inch)	86.35 inch
Set Height (inch)	49.42 inch
Bezel width	16.0 mm
Product weight	65.64 kg
Set Depth (inch)	3.54 / 3.70 inch
Product weight (lb)	144.71 lb

Internal Player Toggle

Storage	32 GB
GPU	ARM Mali G52 MC3
Memory	4 GB RAM
CPU	4 x A72 + 4 x A53 RK3576 + MT9800

Sound

Built-in speakers	2 x 10 W RMS

Power

Energy Label Class	E
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Standby power consumption	<0.5 W
Consumption	EEI lot5 127 W

Multimedia Applications Toggle

USB Playback Video	MPEG, H.263, H.264, H.265, AVI, MP4, MPEG4, VP8, VP9, WEBM,
USB Playback Picture	BMP, JPEG, PNG,
USB Playback Audio	AAC, HEAAC, MPEG,

Miscellaneous Toggle

On-Screen Display Languages	English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish,
Warranty	3 year warranty
Regulatory approvals	CE, RoHS, CB,

Operating conditions Toggle

Temperature range (storage)	-20 ~ 60 °C
MTBF	50,000 hour
Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	5–95% RH
Humidity range (operation)[RH]	20–80% RH
Ingress protection	IP5X
Altitude	0 ~ 3000 m

Picture/Display Toggle

Pixel pitch	0.56 x 0.56 mm
Panel resolution	3840 x 2160
Dynamic contrast ratio	500,000:1
Aspect ratio	16:9
Viewing angle (horizontal)	178 degree
Diagonal screen size (metric)	247.7 cm
Brightness	600 cd/m²
Display colours	1.07 Billion
Picture enhancement	3/2 - 2/2 motion pull down, Motion compens. deinterlacing, Dynamic contrast enhancement, Progressive scan,
Operating system	Android 14
Haze	25%
Diagonal screen size (inch)	97.5 inch
Contrast ratio (typical)	1200:1
Viewing angle (vertical)	178 degree
Panel technology	ADS
Response time (typical)	8 ms
Optimum resolution	3840 x 2160 @ 60 Hz

Supported Display Resolution Toggle

Video formats	1080p, 50, 60 Hz, 1080i, 50, 60 Hz, 480p, 60 Hz, 576i, 50 Hz, 576p, 50 Hz, 720p, 50,60 Hz, 480i, 60 Hz,
Computer formats	1024 x 768, 60 Hz, 1280 x 1024, 60 Hz, 1280 x 720, 60 Hz, 1440 x 900, 60 Hz, 1600 x 900, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, 640 x 480, 60 Hz, 800 x 600, 60 Hz,
