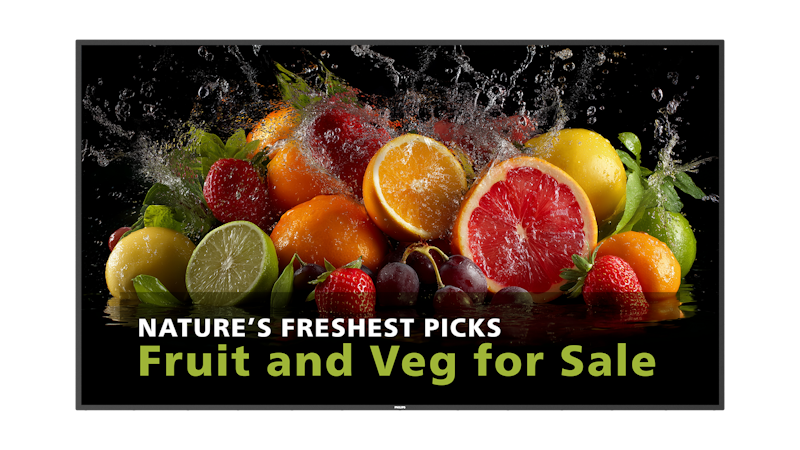

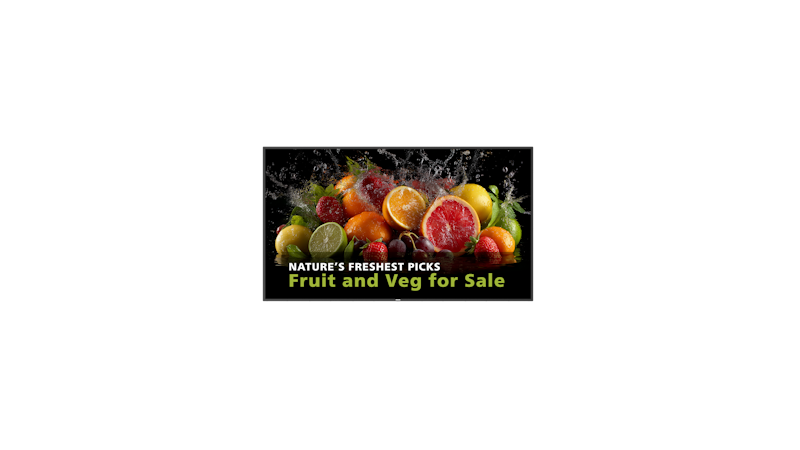

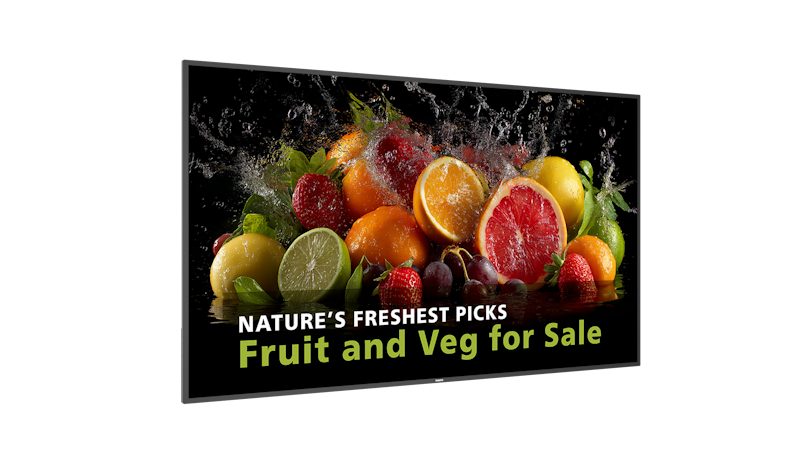

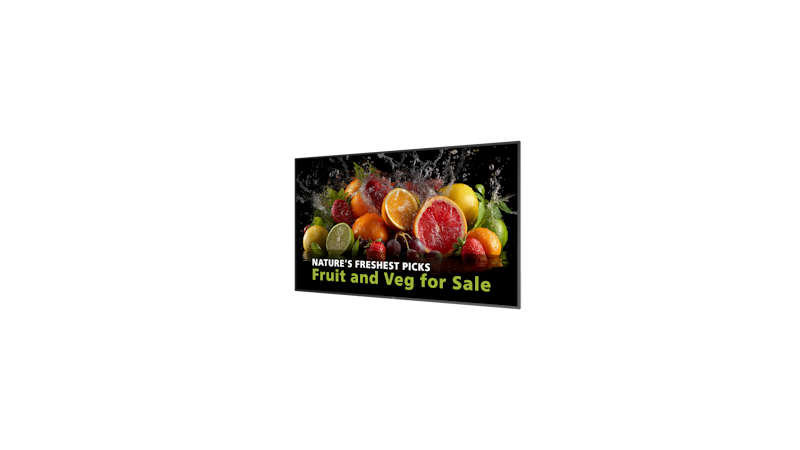

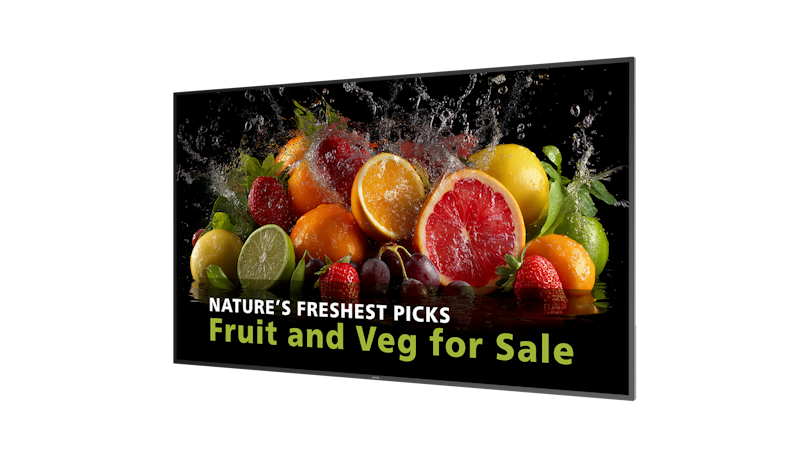

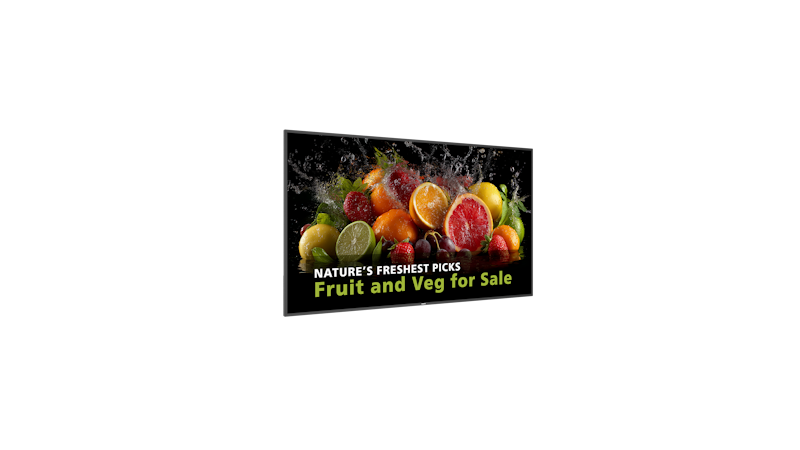

86BDL5050D/00

5000 Series / D-Line

Go beyond the ordinary. Captivate audiences and elevate their experience with the Philips Signage 5000. Powered by Android 14 for smooth integrations, this versatile 24/7 display steps up to deliver exceptional performance in any setting.

Size: 86”

98” 86” 75” 65” 55” 50” 43” 32”

Get a quote

Connectivity Toggle

Audio output	3.5 mm jack
Video output	HDMI 2.0
Video input	DisplayPort 1.4, HDMI 2.0, USB-C,
Other connections	4G/LTE antenna connectors, Micro USB, USB 3.0,
External control	RJ45, RS232C 2.5 mm jack, IR 3.5 mm jack, Wi-Fi 6, Bluetooth 5.2,

Convenience Toggle

Network controllable	RS232, External 4G mPCIe slot, RJ45,
Tiled Matrix	Up to 10 x 15
Placement	Landscape, Portrait,
Signal loop through	RS232, IR Loop through, HDMI1, HDMI 2, Android SoC,
Keyboard control	Hidden, Lockable,
Screen-saving functions	Pixel Shift
Energy-saving functions	Smart Power

Accessories Toggle

Included Accessories	RS232 daisy-chain cable, Philips logo, AC Switch Cover, USB Cover, Screws, AC Power Cord, IR sensor cable, Quick start guide, Remote control and AAA batteries, RS232 cable, CRD32 Wi-Fi and BT module,

Internal Player Toggle

Storage	32 GB
CPU	4 x A72 + 4 x A53 RK3576 + MT9800
GPU	ARM Mali G52 MC3
Memory	4 GB RAM

Dimensions Toggle

Product weight (lb)	106.51 lb
Set Height	1100 mm
Wall Mount	600 x 400 mm, M8
Set Width (inch)	75.94 inch
Set Depth	95.3/69.5 mm
Set Height (inch)	43.31 inch
Set Width	1929.0 mm
Set Depth (inch)	3.75 / 2.74 inch
Bezel width	15.5 mm
Product weight	48.31 kg

Sound

Built-in speakers	2 x 10 W RMS

Power

Energy Label Class	F
Standby power consumption	<0.5 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Consumption	EEI lot5 153 W

Multimedia Applications Toggle

USB Playback Video	MPEG, H.263, H.264, H.265, AVI, MP4, MPEG4, VP8, VP9, WEBM,
USB Playback Picture	BMP, JPEG, PNG,
USB Playback Audio	AAC, HEAAC, MPEG,

Operating conditions Toggle

Temperature range (storage)	-20 ~ 60 °C
Humidity range (operation)[RH]	20–80% RH
MTBF	50,000 hour
Altitude	0 ~ 3000 m
Ingress protection	IP5X
Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	5–95% RH

Miscellaneous Toggle

On-Screen Display Languages	English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish,
Regulatory approvals	CE, RoHS, CB,
Warranty	3 year warranty

Picture/Display Toggle

Response time (typical)	8 ms
Brightness	600 cd/m²
Diagonal screen size (metric)	217.4 cm
Pixel pitch	0.4935 x 0.4935 mm
Panel resolution	3840 x 2160
Picture enhancement	3/2 - 2/2 motion pull down, Motion compens. deinterlacing, Dynamic contrast enhancement, Progressive scan,
Viewing angle (horizontal)	178 degree
Dynamic contrast ratio	500,000:1
Aspect ratio	16:9
Contrast ratio (typical)	1200:1
Viewing angle (vertical)	178 degree
Diagonal screen size (inch)	85.6 inch
Haze	25%
Optimum resolution	3840 x 2160 @ 60 Hz
Display colours	1.07 Billion
Operating system	Android 14
Panel technology	ADS

Supported Display Resolution Toggle

Computer formats	1024 x 768, 60 Hz, 1280 x 1024, 60 Hz, 1280 x 720, 60 Hz, 1440 x 900, 60 Hz, 1600 x 900, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, 640 x 480, 60 Hz, 800 x 600, 60 Hz,
Video formats	1080p, 50, 60 Hz, 1080i, 50, 60 Hz, 480p, 60 Hz, 576i, 50 Hz, 576p, 50 Hz, 720p, 50,60 Hz, 480i, 60 Hz,
