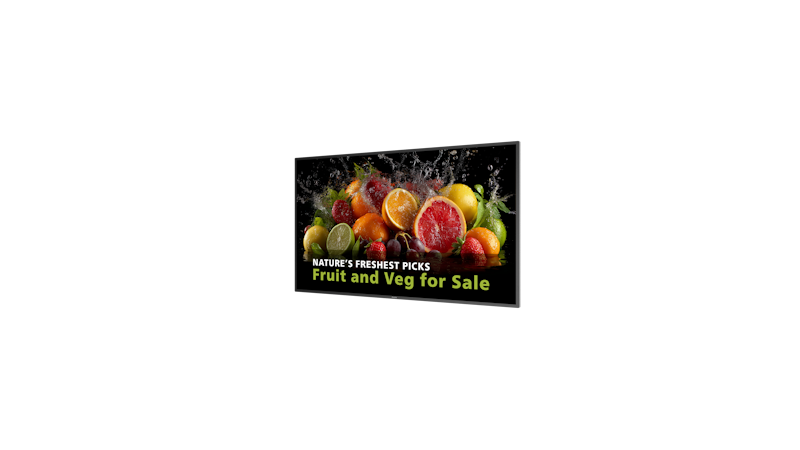

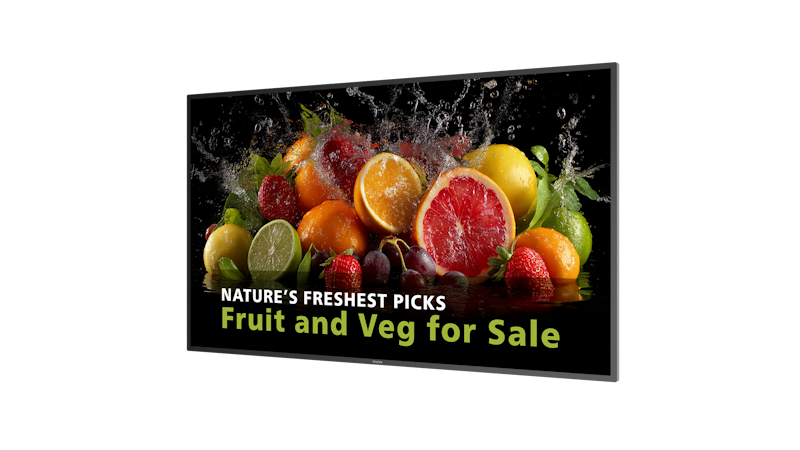

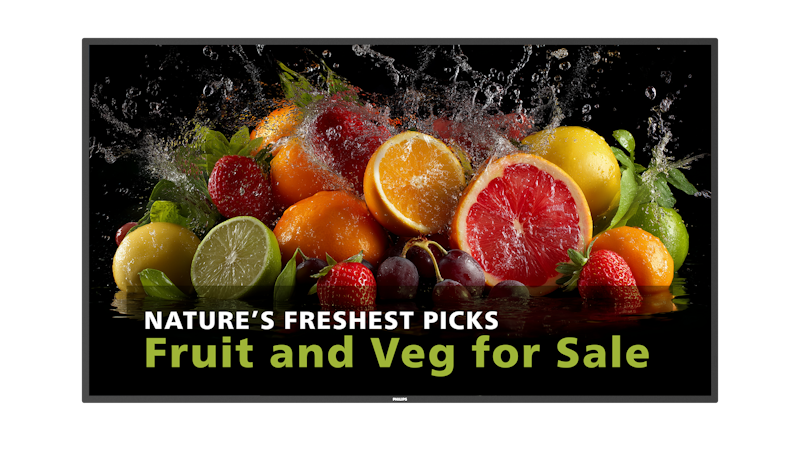

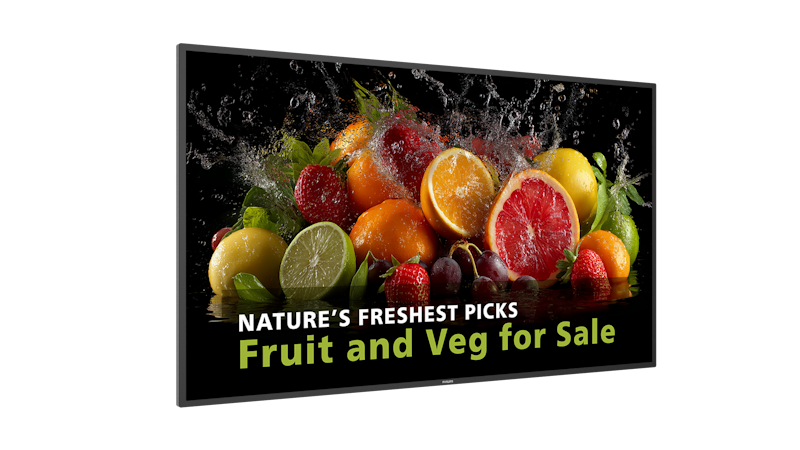

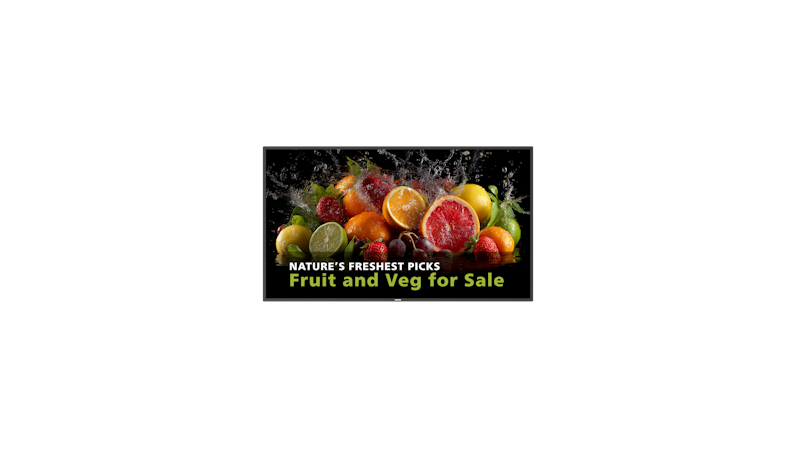

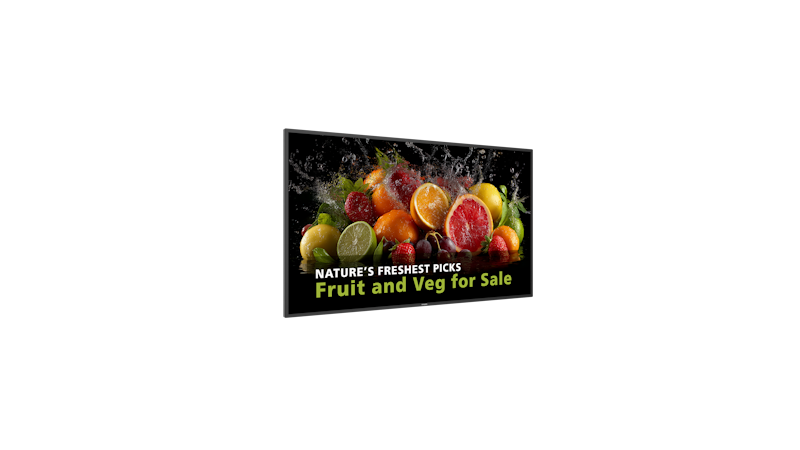

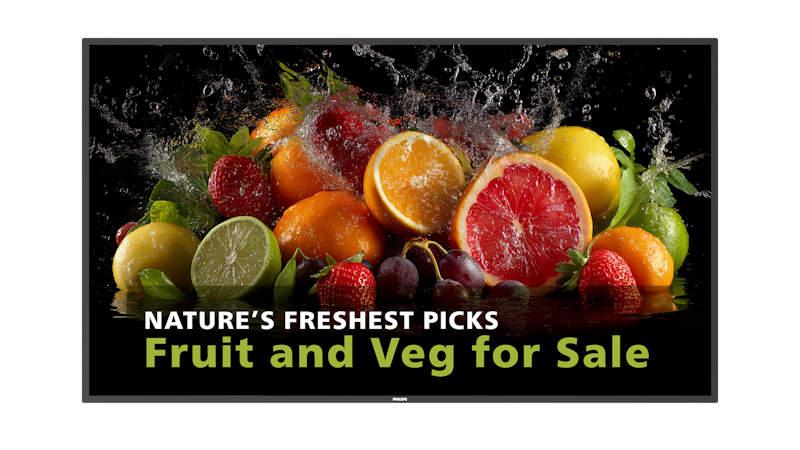

55BDL5050D/00

5000 Series / D-Line

Go beyond the ordinary. Captivate audiences and elevate their experience with the Philips Signage 5000. Powered by Android 14 for smooth integrations, this versatile 24/7 display steps up to deliver exceptional performance in any setting.

Size: 55”

98” 86” 75” 65” 55” 50” 43” 32”

Get a quote

Connectivity Toggle

Video input	DisplayPort 1.4, HDMI 2.0, USB-C,
Other connections	4G/LTE antenna connectors, Micro USB, USB 3.0,
External control	RJ45, RS232C 2.5 mm jack, IR 3.5 mm jack, Wi-Fi 6, Bluetooth 5.2,
Audio output	3.5 mm jack
Video output	HDMI 2.0

Convenience Toggle

Placement	Landscape, Portrait,
Keyboard control	Hidden, Lockable,
Signal loop through	RS232, IR Loop through, HDMI1, HDMI 2, Android SoC,
Tiled Matrix	Up to 10 x 15
Network controllable	RS232, External 4G mPCIe slot, RJ45,
Screen-saving functions	Pixel Shift
Energy-saving functions	Smart Power

Accessories Toggle

Included Accessories	RS232 daisy-chain cable, Philips logo, AC Switch Cover, USB Cover, Screws, AC Power Cord, IR sensor cable, Quick start guide, Remote control and AAA batteries, RS232 cable, CRD32 Wi-Fi and BT module,

Internal Player Toggle

CPU	4 x A72 + 4 x A53 RK3576 + MT9800
GPU	ARM Mali G52 MC3
Memory	4 GB RAM
Storage	32 GB

Dimensions Toggle

Set Height (inch)	28.20 inch
Set Width (inch)	48.89 inch
Product weight (lb)	36.60 lb
Product weight	16.6 kg
Set Depth	63.6 mm
Set Depth (inch)	2.50 inch
Bezel width	13.9 mm
Set Width	1241.8 mm
Set Height	712.6 mm
Wall Mount	400 x 400 mm, M6

Power

Standby power consumption	<0.5 W
Consumption	EEI lot5 72 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Energy Label Class	F

Sound

Built-in speakers	2 x 10 W RMS

Multimedia Applications Toggle

USB Playback Audio	AAC, HEAAC, MPEG,
USB Playback Video	MPEG, H.263, H.264, H.265, AVI, MP4, MPEG4, VP8, VP9, WEBM,
USB Playback Picture	BMP, JPEG, PNG,

Miscellaneous Toggle

Warranty	3 year warranty
Regulatory approvals	CE, RoHS, CB,
On-Screen Display Languages	English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish,

Picture/Display Toggle

Optimum resolution	3840 x 2160 @ 60 Hz
Haze	25%
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	5000:1
Diagonal screen size (inch)	54.6 inch
Aspect ratio	16:9
Viewing angle (horizontal)	178 degree
Dynamic contrast ratio	500,000:1
Panel technology	VA
Response time (typical)	8 ms
Operating system	Android 14
Picture enhancement	3/2 - 2/2 motion pull down, Motion compens. deinterlacing, Dynamic contrast enhancement, Progressive scan,
Display colours	1.07 Billion
Diagonal screen size (metric)	138.7 cm
Brightness	600 cd/m²
Pixel pitch	0.315 × 0.315 mm
Panel resolution	3840 x 2160

Operating conditions Toggle

Ingress protection	IP5X
Altitude	0 ~ 3000 m
MTBF	50,000 hour
Temperature range (operation)	0 ~ 40 °C
Humidity range (operation)[RH]	20–80% RH
Humidity range (storage) [RH]	5–95% RH
Temperature range (storage)	-20 ~ 60 °C

Supported Display Resolution Toggle

Video formats	1080p, 50, 60 Hz, 1080i, 50, 60 Hz, 480p, 60 Hz, 576i, 50 Hz, 576p, 50 Hz, 720p, 50,60 Hz, 480i, 60 Hz,
Computer formats	1024 x 768, 60 Hz, 1280 x 1024, 60 Hz, 1280 x 720, 60 Hz, 1440 x 900, 60 Hz, 1600 x 900, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, 640 x 480, 60 Hz, 800 x 600, 60 Hz,
