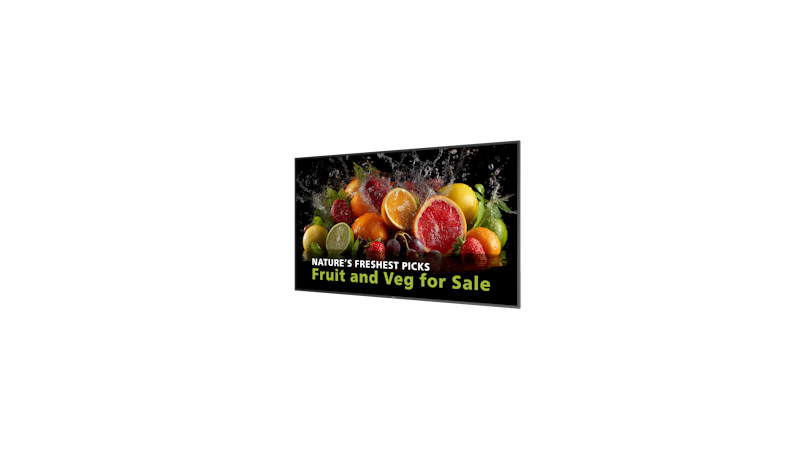

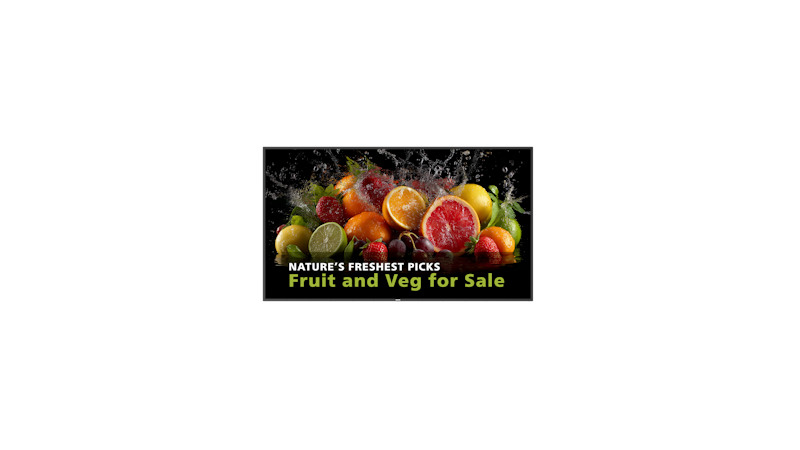

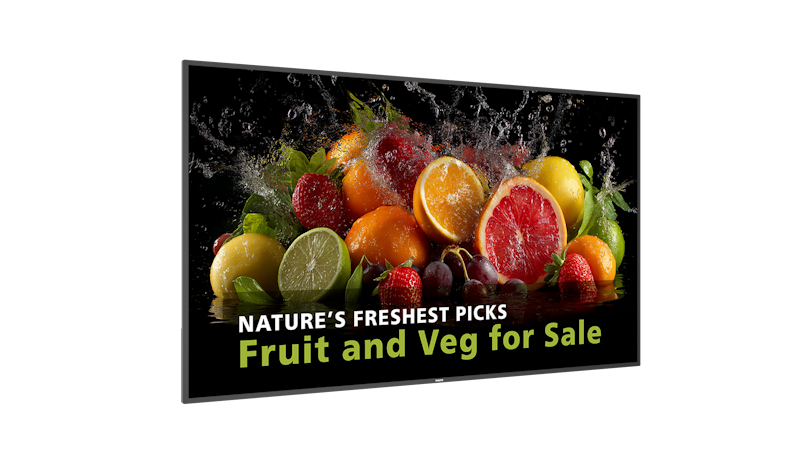

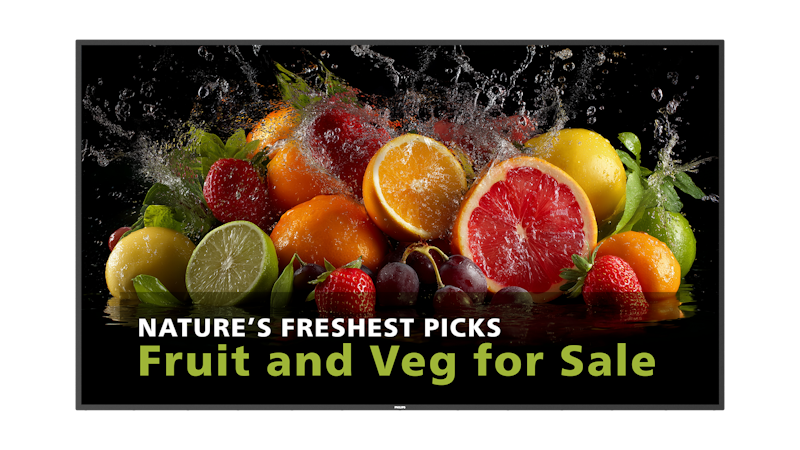

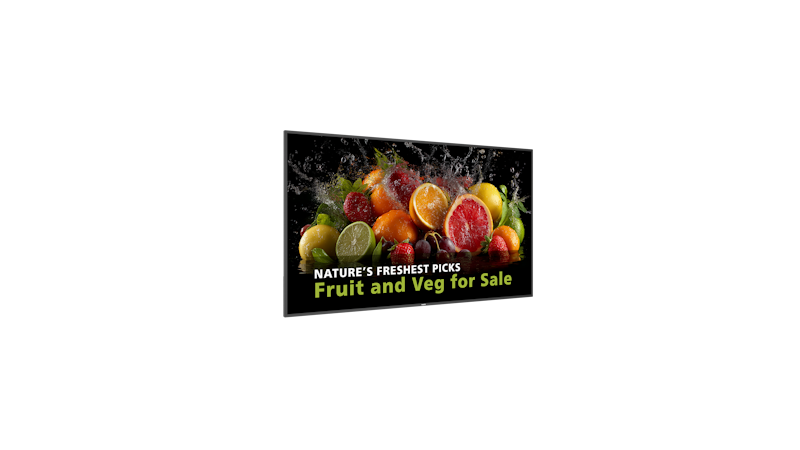

75BDL5050D/00

5000 Series / D-Line

Go beyond the ordinary. Captivate audiences and elevate their experience with the Philips Signage 5000. Powered by Android 14 for smooth integrations, this versatile 24/7 display steps up to deliver exceptional performance in any setting.

Size: 75”

98” 86” 75” 65” 55” 50” 43” 32”

Get a quote

Connectivity Toggle

Video output	HDMI 2.0
Video input	DisplayPort 1.4, HDMI 2.0, USB-C,
External control	RJ45, RS232C 2.5 mm jack, IR 3.5 mm jack, Wi-Fi 6, Bluetooth 5.2,
Audio output	3.5 mm jack
Other connections	4G/LTE antenna connectors, Micro USB, USB 3.0,

Convenience Toggle

Placement	Landscape, Portrait,
Screen-saving functions	Pixel Shift
Network controllable	RS232, External 4G mPCIe slot, RJ45,
Tiled Matrix	Up to 10 x 15
Energy-saving functions	Smart Power
Signal loop through	RS232, IR Loop through, HDMI1, HDMI 2, Android SoC,
Keyboard control	Hidden, Lockable,

Accessories Toggle

Included Accessories	RS232 daisy-chain cable, Philips logo, AC Switch Cover, USB Cover, Screws, AC Power Cord, IR sensor cable, Quick start guide, Remote control and AAA batteries, RS232 cable, CRD32 Wi-Fi and BT module,

Internal Player Toggle

CPU	4 x A72 + 4 x A53 RK3576 + MT9800
Storage	32 GB
GPU	ARM Mali G52 MC3
Memory	4 GB RAM

Dimensions Toggle

Set Width (inch)	66.28 inch
Product weight	37 kg
Set Depth (inch)	3.75 / 2.74 inch
Set Depth	95.3/69.5 mm
Product weight (lb)	81.48 lb
Bezel width	14.9 mm
Wall Mount	600 x 400 mm, M8
Set Height	961.7 mm
Set Width	1683.5 mm
Set Height (inch)	37.86 inch

Sound

Built-in speakers	2 x 10 W RMS

Power

Consumption	EEI lot5 112 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Energy Label Class	F
Standby power consumption	<0.5 W

Multimedia Applications Toggle

USB Playback Video	MPEG, H.263, H.264, H.265, AVI, MP4, MPEG4, VP8, VP9, WEBM,
USB Playback Picture	BMP, JPEG, PNG,
USB Playback Audio	AAC, HEAAC, MPEG,

Miscellaneous Toggle

Regulatory approvals	CE, RoHS, CB,
On-Screen Display Languages	English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish,
Warranty	3 year warranty

Operating conditions Toggle

Temperature range (storage)	-20 ~ 60 °C
Ingress protection	IP5X
Altitude	0 ~ 3000 m
MTBF	50,000 hour
Humidity range (storage) [RH]	5–95% RH
Humidity range (operation)[RH]	20–80% RH
Temperature range (operation)	0 ~ 40 °C

Picture/Display Toggle

Operating system	Android 14
Response time (typical)	8 ms
Panel resolution	3840 x 2160
Pixel pitch	0.4296 x 0.4296 mm
Optimum resolution	3840 x 2160 @ 60 Hz
Dynamic contrast ratio	500,000:1
Viewing angle (horizontal)	178 degree
Aspect ratio	16:9
Panel technology	ADS
Brightness	600 cd/m²
Diagonal screen size (metric)	189.3 cm
Picture enhancement	3/2 - 2/2 motion pull down, Motion compens. deinterlacing, Dynamic contrast enhancement, Progressive scan,
Display colours	1.07 Billion
Viewing angle (vertical)	178 degree
Diagonal screen size (inch)	74.5 inch
Haze	25%
Contrast ratio (typical)	1200:1

Supported Display Resolution Toggle

Video formats	1080p, 50, 60 Hz, 1080i, 50, 60 Hz, 480p, 60 Hz, 576i, 50 Hz, 576p, 50 Hz, 720p, 50,60 Hz, 480i, 60 Hz,
Computer formats	1024 x 768, 60 Hz, 1280 x 1024, 60 Hz, 1280 x 720, 60 Hz, 1440 x 900, 60 Hz, 1600 x 900, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, 640 x 480, 60 Hz, 800 x 600, 60 Hz,
