Operating conditions
| Temperature range (storage) | -20~60 °C |
|---|---|
| MTBF | 50,000 hour |
| Altitude | 0 ~ 3000 m |
| Temperature range (operation) | 0 ~ 40 °C |
| Humidity range (storage) [RH] | 5–95% |
| Humidity range (operation)[RH] | 20–80% |
Miscellaneous
| Warranty | 5-year warranty |
|---|---|
| Regulatory approvals | CE, FCC, Class A, RoHS, CB, EAC, EMF, ETL, |
| On-Screen Display Languages | Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese, |
Picture/Display
| Diagonal screen size (inch) | 86 inch |
|---|---|
| Viewing angle (vertical) | 178 degree |
| Contrast ratio (typical) | 4000:1 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Diagonal screen size (metric) | 218.44 cm |
| Pixel pitch | 0.4935 x 0.4935 [mm] |
| Panel resolution | 3840 x 2160 |
| Viewing angle (horizontal) | 178 degree |
| Aspect ratio | 16:9 |
| Brightness (after glass) | 380 cd/m² |
| Display colours | 1.07 B |
| OS UI resolution | 1920 x 1080 @ 60 Hz |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement, |
| Brightness (before glass) | 410 cd/m² |
| Response time (typical) | 8 ms |
| Operating system | Android 8.0 |
| Panel technology | VA |
Weight
| Product without stand (lb) | 163.98 lb |
|---|---|
| Product with packaging (lb) | 199.96 lb |
| Product without stand (kg) | 74.38 kg |
| Product with packaging (kg) | 90.7 kg |
Supported Display Resolution
| Video formats | 480i, 60 Hz, 480p, 60 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, 2160p, 30, 60 Hz, 576i, 50 Hz, 576p, 50 Hz, |
|---|---|
| Computer formats | 720 x 400, 70 Hz, 832 x 624, 75 Hz, 1440 x 900, 60 Hz, 1600 x 900, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, 1024 x 768, 60 Hz, 1152 x 870, 75 Hz, 1280 x 1024, 60 Hz, 1280 x 720, 60 Hz, 3840 x 2160, 30, 60 Hz, 640 x 480, 60, 67, 75 Hz, 800 x 600, 60 Hz, |
Interactivity
| Touchpoints | 20 simultaneous touch points |
|---|---|
| Multi-touch technology | 0-gap Infrared touch |
| Protection glass | Anti-Glare, Tempered safety glass 7 MOHS, |
| Plug and play | HID compliant |
Connectivity
| Other connections | OPS, micro SD, USB-B, |
|---|---|
| Video input | DVI-D, HDMI 2.0, VGA, USB 2.0, USB-C, |
| Audio output | 3.5 mm Mini Jack |
| External control | IR 3.5 mm jack, RJ45, RS232C 2.5 mm jack, |
| Audio input | 3.5 mm mini jack |
Convenience
| Signal loop through | RS232, IR Loop through, |
|---|---|
| Keyboard control | Lockable |
| Screen-saving functions | Pixel Shift, Low Brightness |
| Ease of installation | AC Out, Smart Insert, |
| Remote control signal | Lockable |
| Network controllable | RS232, RJ45, |
| Placement | Landscape |

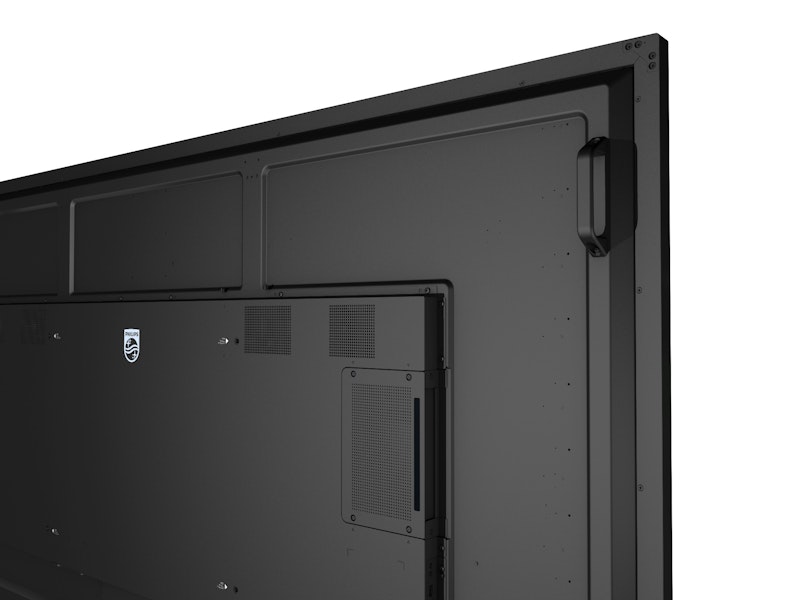

| Other convenience | Carrying handles |
Accessories
| Optional accessories | Interact dongles |
|---|---|
| Included Accessories | Cleaning cloth, HDMI Cable, IR sensor cable, Philips logo, Quick start guide, Remote control and AAA batteries, RS232 daisy chain cable, Touch Pen, USB A to B cable, RS232 cable, AC Power Cord, Cable clip, AC switch cover and Screw x 1, DVI-D cable, USB cover and screws, |
Internal Player
| CPU | 2 x A53 + 2 x A73 |
|---|---|
| Storage | 16 GB EMMC |
| GPU | ARM Mali G51 |
| Memory | 3 GB DDR3 |
Dimensions
| Set Width (inch) | 77.19 inch |
|---|---|
| Smart Insert mount | 100 x 100 mm, 6xM4L6 |
| Set Height (inch) | 45.11 inch |
| Set Height | 1145.7 mm |
| Wall Mount | 600 x 400 mm, M8 |
| Set Depth | 101.3 mm/79.0 mm mm |
| Set Width | 1960.8 mm |
| Bezel width | 17.8 mm x 31.7 mm |
| Set Depth (inch) | 3.98/3.11 inch |
| Weight | 74.38 kg |
Sound
| Built-in speakers | 2 x 15 W |
|---|
Power
| Power Saving Features | Smart Power |
|---|---|
| Standby power consumption | <0.5 W |
| Consumption (Typical) | 250 W |
| Consumption (Max) | 507 W |
| Energy Label Class | G |
| Mains power | 100 ~ 240 VAC, 50/60 Hz |
Multimedia Applications
| USB Playback Picture | BMP, JPEG, PNG, |
|---|---|
| USB Playback Video | H.263, H.264, H.265, MPEG1/2, MPEG4, VP9, |
| USB Playback Audio | AAC, MPEG, HEAAC, |
