75BDL3052E/00

3000 Series / E-Line

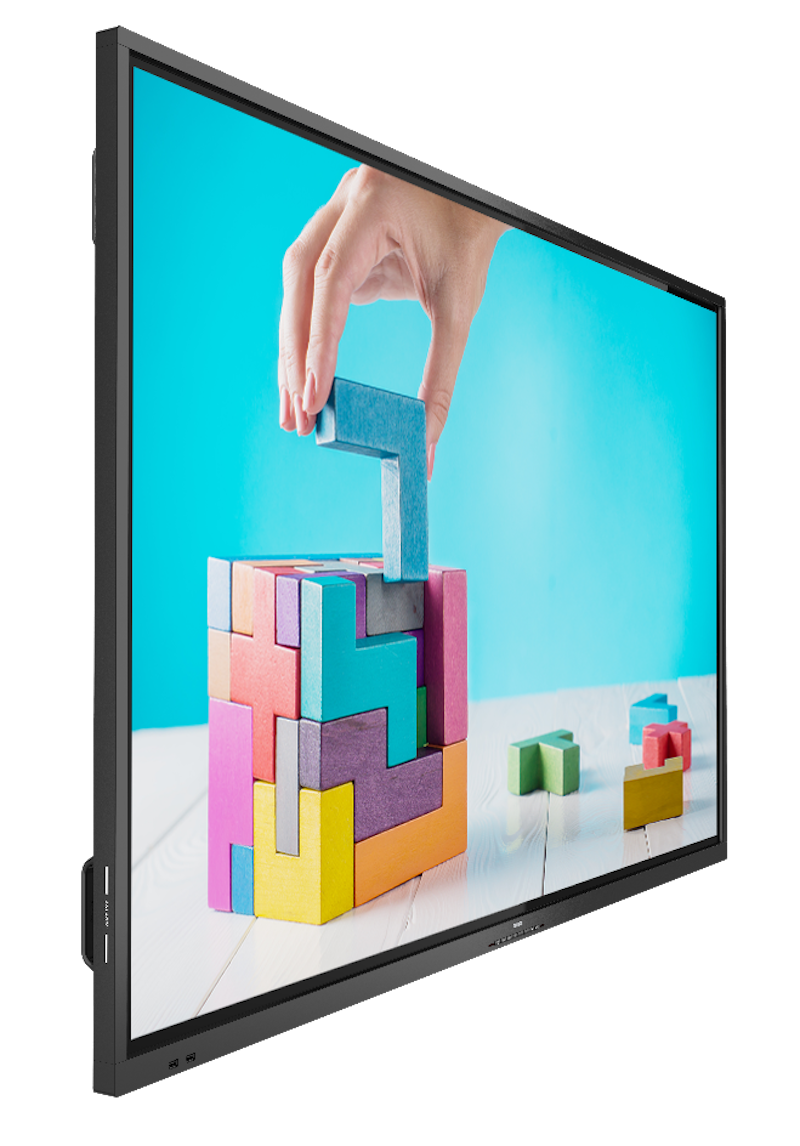

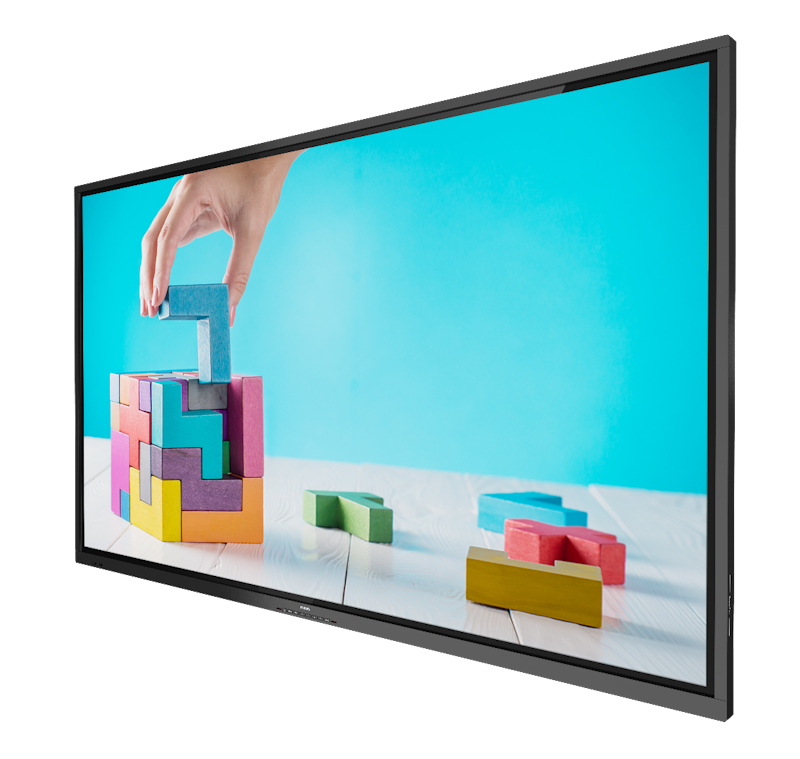

The Philips E-Line touch display maximises engagement and inspires collaboration with up to 20 touchpoints. Powered by Android and featuring a toughened anti-glare glass, it's made to withstand heavy daily usage in the classroom.

Size: 75”

86” 75” 65”

Get a quote

Operating conditions Toggle

Humidity range (operation)[RH]	20–80%
Humidity range (storage) [RH]	5–95%
Temperature range (operation)	0 ~ 40 °C
Temperature range (storage)	-20~60 °C
MTBF	50,000 hour
Altitude	0 ~ 3000 m

Picture/Display Toggle

Diagonal screen size (metric)	189.3 cm
Response time (typical)	8 ms
Brightness (after glass)	380 cd/m²
Picture enhancement	3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement,
Display colours	1.07 B
OS UI resolution	1920 x 1080 @ 60 Hz
Brightness (before glass)	410 cd/m²
Panel resolution	3840 x 2160
Pixel pitch	0.4296 x 0.4296 [mm]
Aspect ratio	16:9
Viewing angle (horizontal)	178 degree
Panel technology	ADS
Operating system	Android 8.0
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	1200:1
Diagonal screen size (inch)	74.5 inch
Optimum resolution	3840 x 2160 @ 60 Hz

Miscellaneous Toggle

On-Screen Display Languages	Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese,
Warranty	5-year warranty
Regulatory approvals	CE, FCC, Class A, RoHS, CB, EAC, EMF, ETL,

Weight

Product without stand (lb)	122.95 lb
Product without stand (kg)	55.77 kg
Product with packaging (kg)	67.60 kg
Product with packaging (lb)	149.03 lb

Supported Display Resolution Toggle

Video formats	480i, 60 Hz, 480p, 60 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, 2160p, 30, 60 Hz, 576i, 50 Hz, 576p, 50 Hz,
Computer formats	720 x 400, 70 Hz, 832 x 624, 75 Hz, 1440 x 900, 60 Hz, 1600 x 900, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, 1024 x 768, 60 Hz, 1152 x 870, 75 Hz, 1280 x 1024, 60 Hz, 1280 x 720, 60 Hz, 3840 x 2160, 30, 60 Hz, 640 x 480, 60, 67, 75 Hz, 800 x 600, 60 Hz,

Interactivity Toggle

Protection glass	Anti-Glare, Tempered safety glass 7 MOHS,
Plug and play	HID compliant
Touchpoints	20 simultaneous touch points
Multi-touch technology	0-gap Infrared touch

Connectivity Toggle

Audio output	3.5 mm Mini Jack
External control	IR 3.5 mm jack, RJ45, RS232C 2.5 mm jack,
Audio input	3.5 mm mini jack
Other connections	OPS, micro SD, USB-B,
Video input	DVI-D, HDMI 2.0, VGA, USB 2.0, USB-C,

Convenience Toggle

Ease of installation	AC Out, Smart Insert,

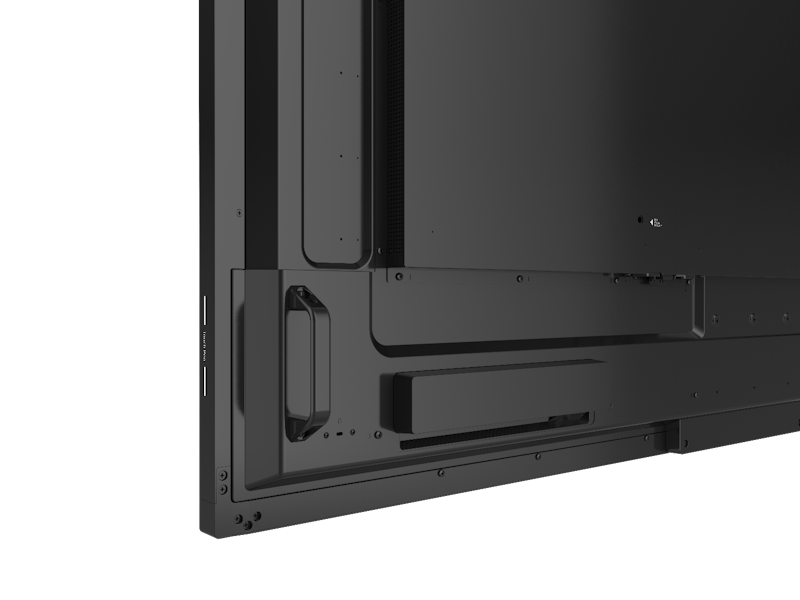

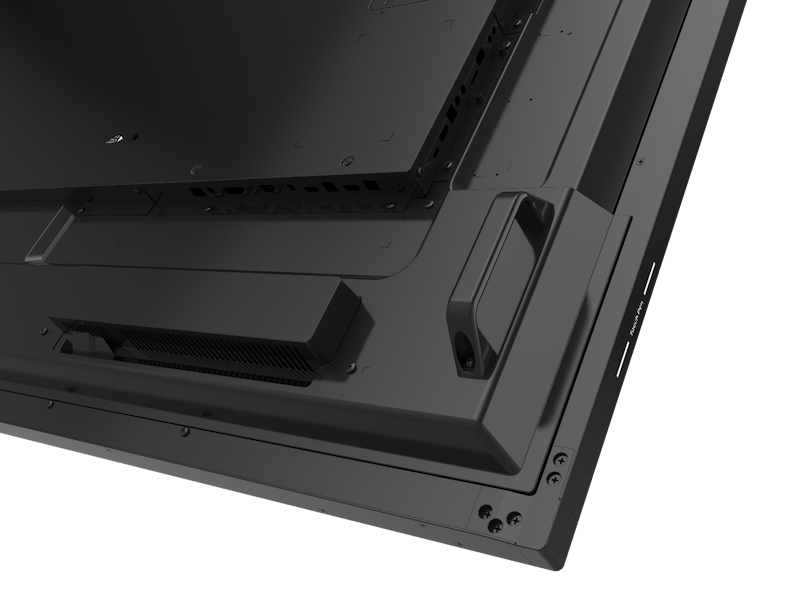

Other convenience	Carrying handles
Remote control signal	Lockable
Network controllable	RS232, RJ45,

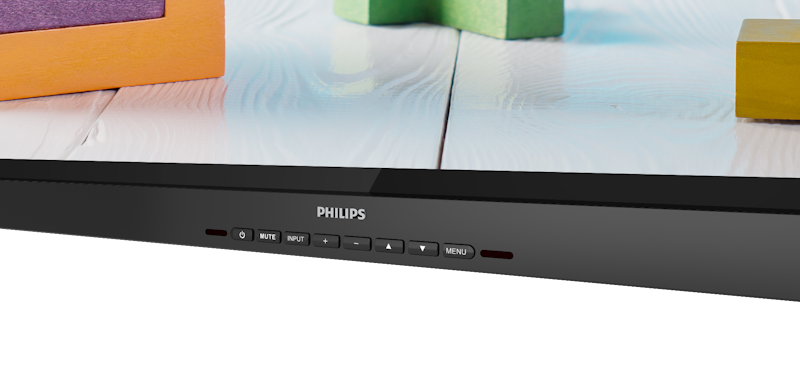

Keyboard control	Lockable
Signal loop through	RS232, IR Loop through,
Screen-saving functions	Pixel Shift, Low Brightness
Placement	Landscape

Accessories Toggle

Included Accessories	Cleaning cloth, HDMI Cable, IR sensor cable, Philips logo, Quick start guide, Remote control and AAA batteries, RS232 daisy chain cable, Touch Pen, USB A to B cable, RS232 cable, AC Power Cord, Cable clip, AC switch cover and Screw x 1, DVI-D cable, USB cover and screws,
Optional accessories	Interact dongles

Internal Player Toggle

CPU	2 x A53 + 2 x A73
Memory	3 GB DDR3
Storage	16 GB EMMC
GPU	ARM Mali G51

Dimensions Toggle

Set Width	1715.5 mm
Set Width (inch)	67.54 inch

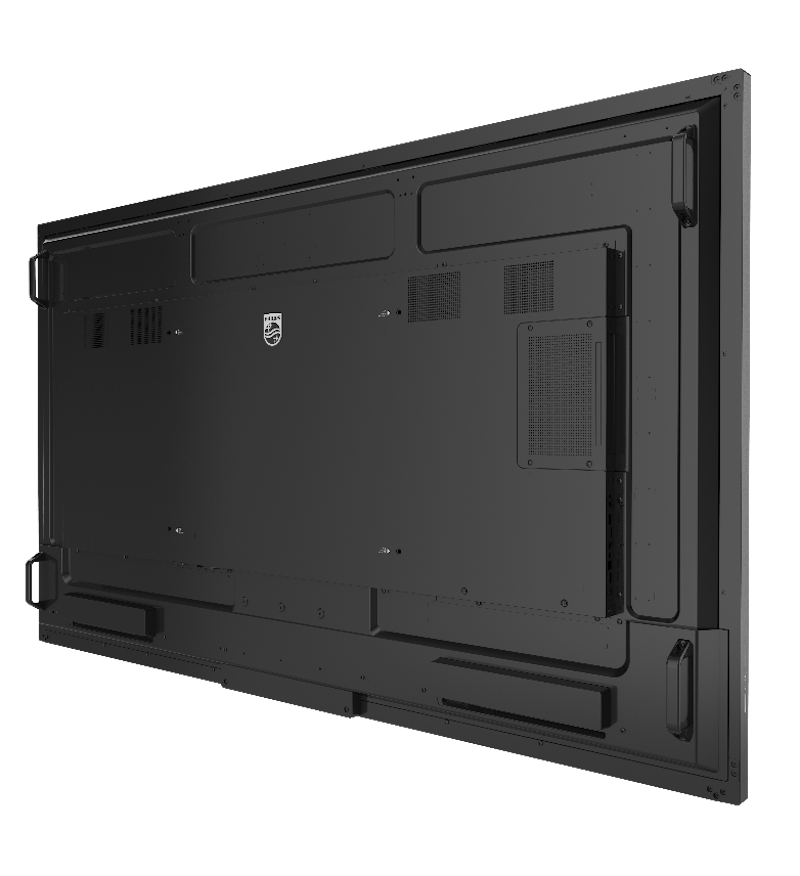

Wall Mount	600 x 400 mm, M8
Set Height	1007.6 mm
Weight	55.77 kg

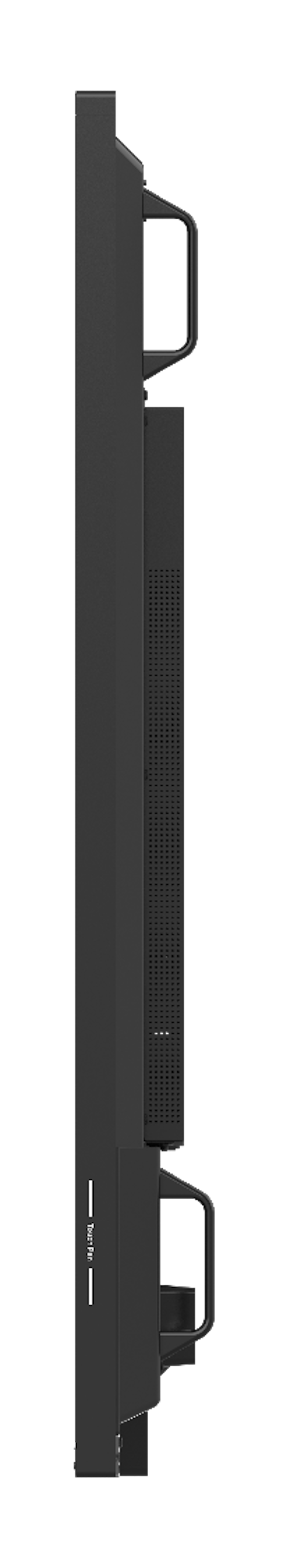

Set Depth	101.5 mm/79.2 mm mm
Set Depth (inch)	3.99/3.12 inch
Bezel width	17.8 mm x 31.7 mm
Set Height (inch)	39.67 inch
Smart Insert mount	100 x 100 mm, 6xM4L6

Sound

Built-in speakers	2 x 15 W

Power

Power Saving Features	Smart Power
Mains power	100 ~ 240 VAC, 50/60 Hz
Energy Label Class	G
Consumption (Typical)	155 W
Consumption (Max)	400 W
Standby power consumption	<0.5 W

Multimedia Applications Toggle

USB Playback Video	H.263, H.264, H.265, MPEG1/2, MPEG4, VP9,
USB Playback Picture	BMP, JPEG, PNG,
USB Playback Audio	AAC, MPEG, HEAAC,
