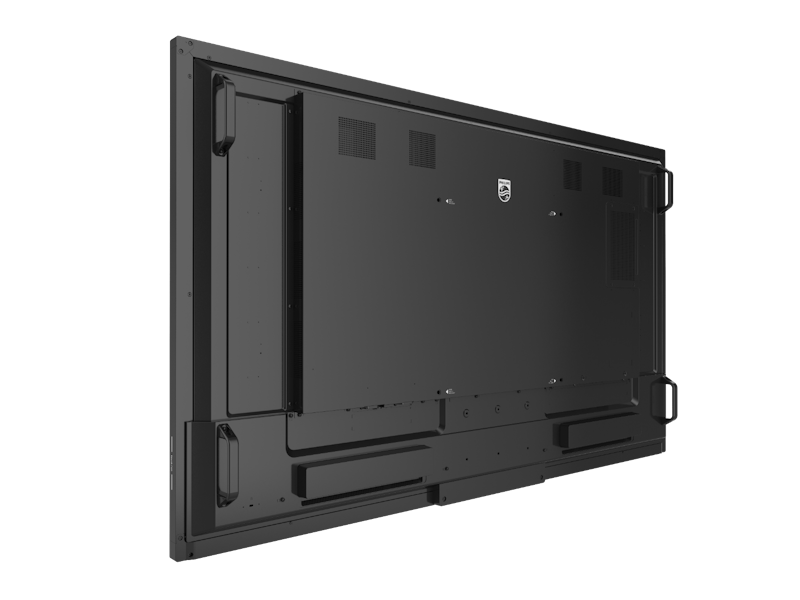

65BDL3052E/00

3000 Series / E-Line

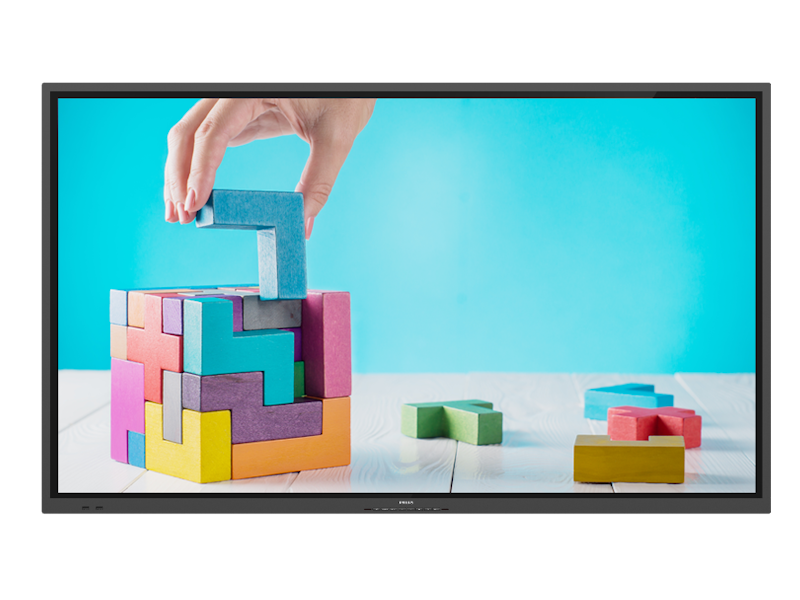

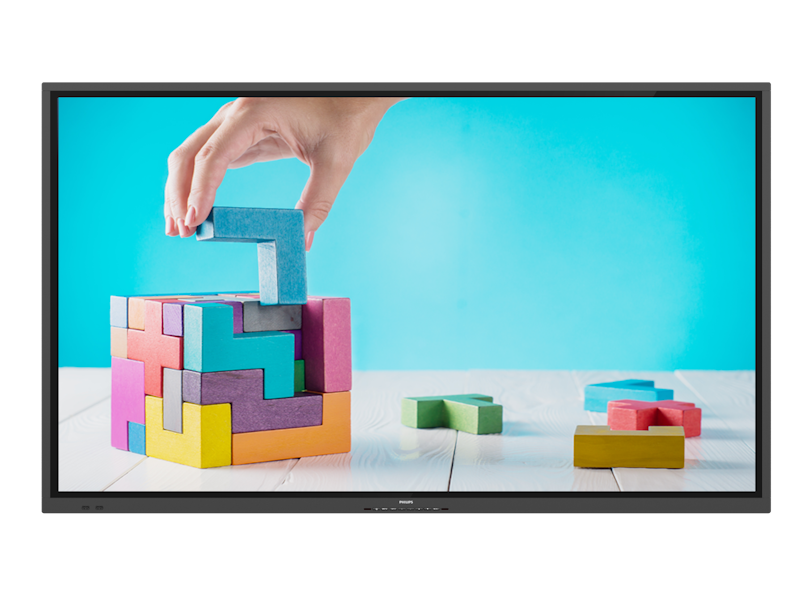

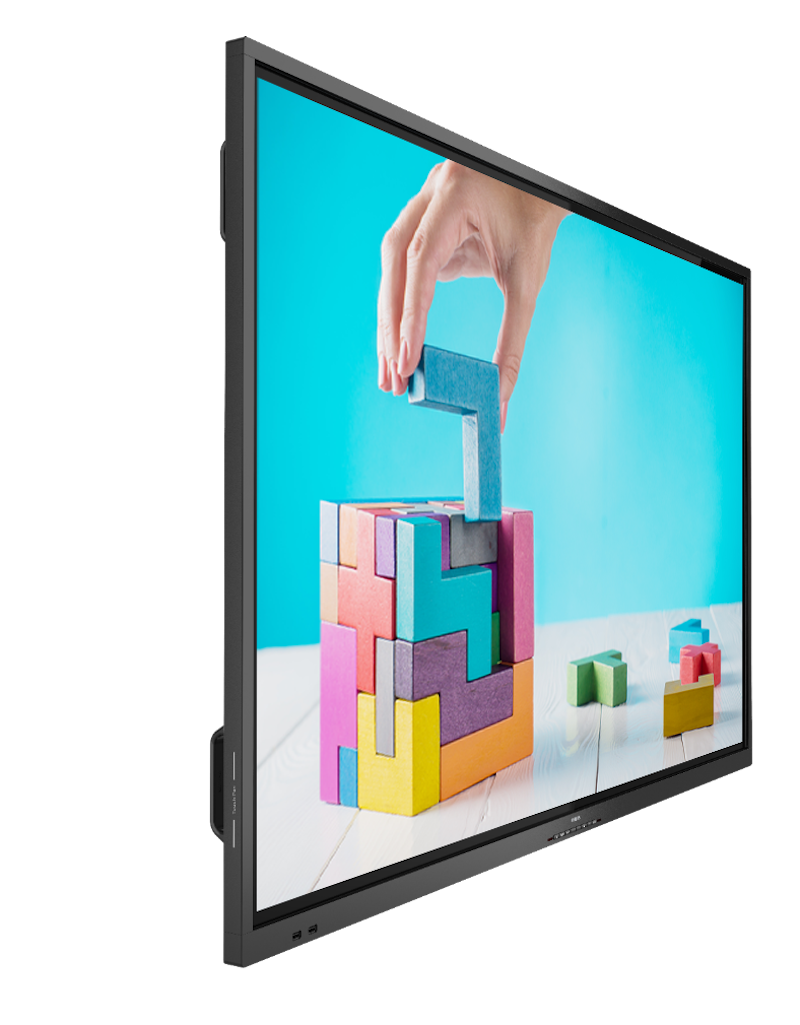

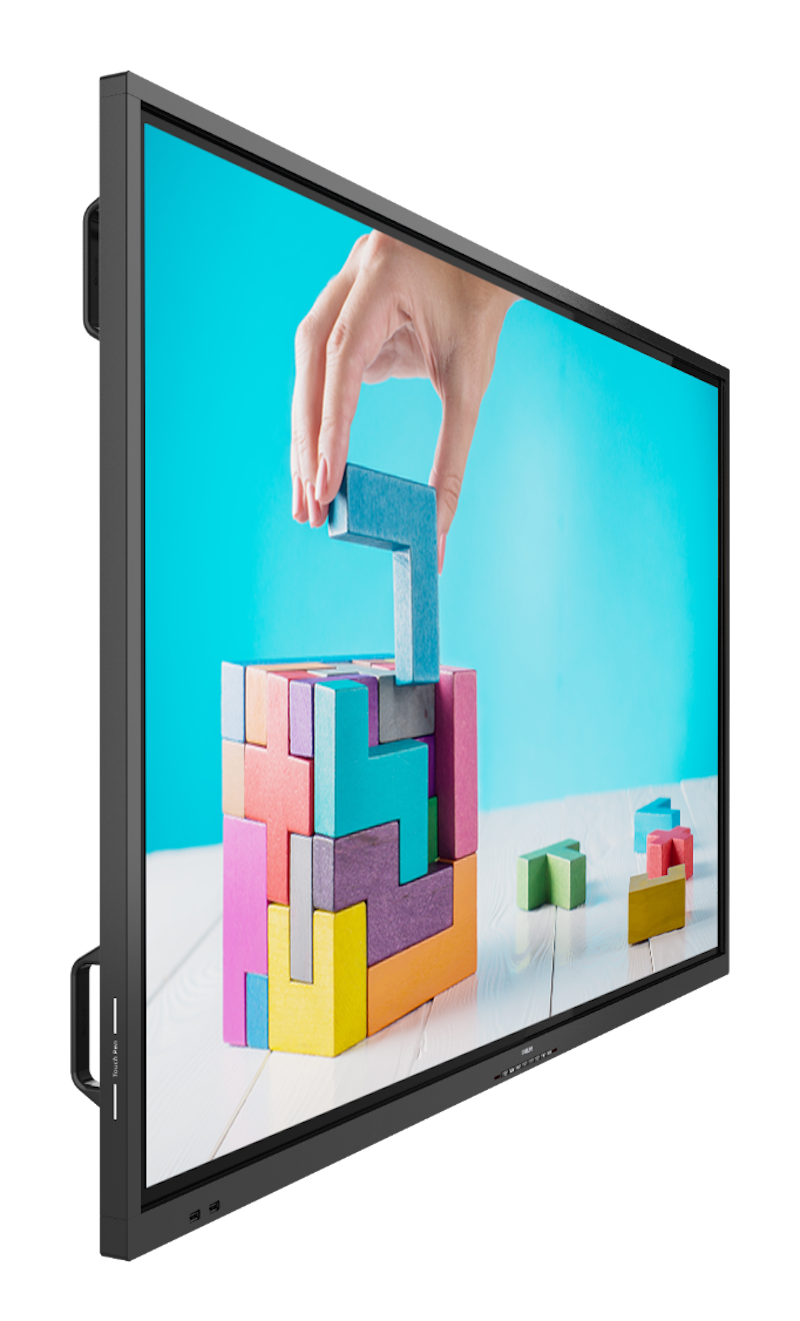

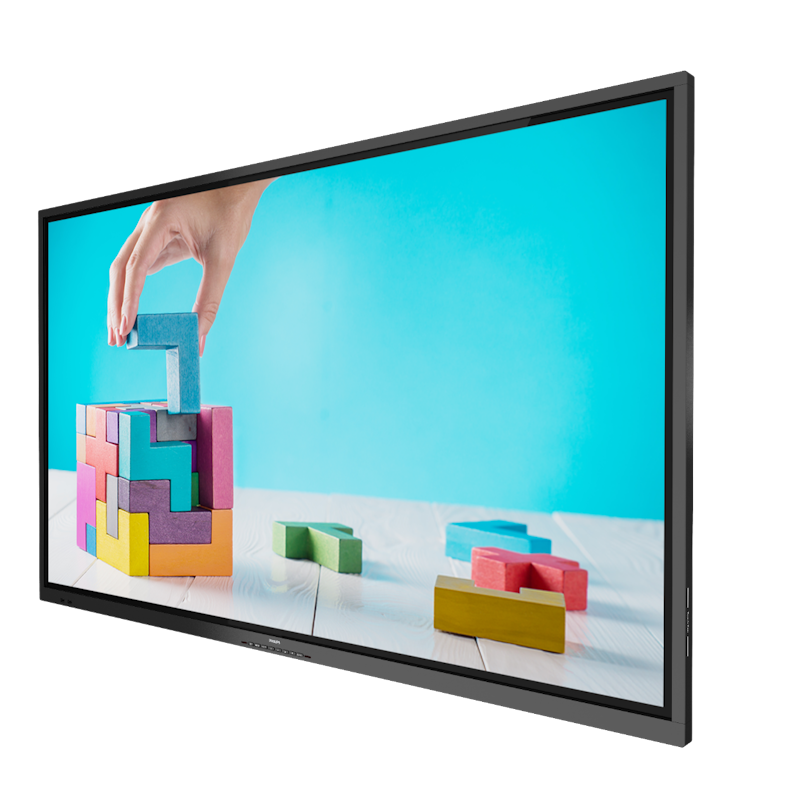

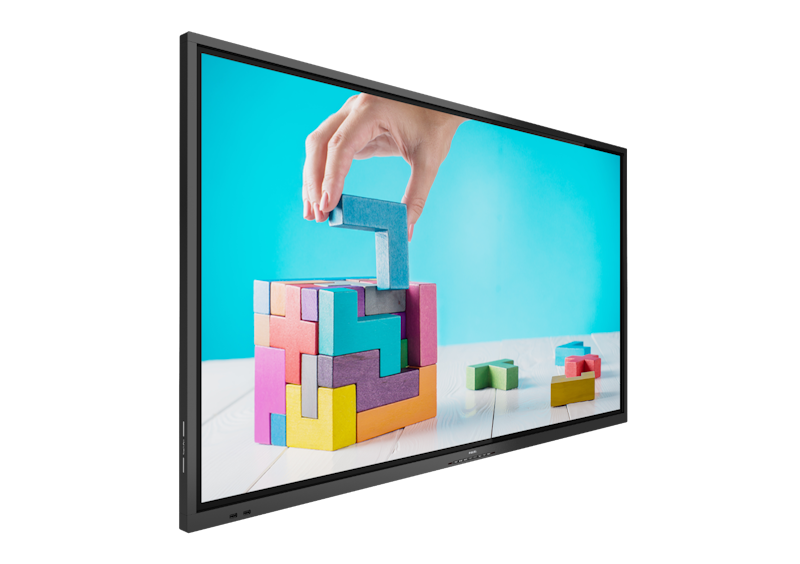

The Philips E-Line touch display maximises engagement and inspires collaboration with up to 20 touchpoints. Powered by Android and featuring a toughened anti-glare glass, it's made to withstand heavy daily usage in the classroom.

Size: 65”

86” 75” 65”

Get a quote

Operating conditions Toggle

Temperature range (storage)	-20~60 °C
MTBF	50,000 hour
Altitude	0 ~ 3000 m
Humidity range (storage) [RH]	5–95%
Humidity range (operation)[RH]	20–80%
Temperature range (operation)	0 ~ 40 °C

Miscellaneous Toggle

On-Screen Display Languages	Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese,
Regulatory approvals	CE, FCC, Class A, RoHS, CB, EAC, EMF, ETL,
Warranty	5 year warranty

Weight

Product without stand (lb)	95.13 lb
Product without stand (kg)	43.15 kg
Product with packaging (lb)	116.18 lb
Product with packaging (kg)	52.7 kg

Picture/Display Toggle

Diagonal screen size (inch)	65 inch
Brightness	350 cd/m²
Diagonal screen size (metric)	163.9 cm
Panel resolution	3840 x 2160
Pixel pitch	0.372 x 0.372 [mm]
Viewing angle (horizontal)	178 degree
Aspect ratio	16:9
Optimum resolution	3840 x 2160 @ 60 Hz
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	1200:1
Panel technology	ADS
Response time (typical)	8 ms
Operating system	Android 8.0
OS UI resolution	1920 x 1080 @ 60 Hz
Display colours	1.07 B
Picture enhancement	3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement,

Supported Display Resolution Toggle

Video formats	480i, 60 Hz, 480p, 60 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, 2160p, 30, 60 Hz, 576i, 50 Hz, 576p, 50 Hz,
Computer formats	720 x 400, 70 Hz, 832 x 624, 75 Hz, 1440 x 900, 60 Hz, 1600 x 900, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, 1024 x 768, 60 Hz, 1152 x 870, 75 Hz, 1280 x 1024, 60 Hz, 1280 x 720, 60 Hz, 3840 x 2160, 30, 60 Hz, 640 x 480, 60, 67, 75 Hz, 800 x 600, 60 Hz,

Interactivity Toggle

Protection glass	Anti-Glare, Tempered safety glass 7 MOHS,
Plug and play	HID compliant
Touchpoints	20 simultaneous touch points
Multi-touch technology	0-gap Infrared touch

Connectivity Toggle

Audio output	3.5 mm Mini Jack
Other connections	OPS, micro SD, USB-B,
Video input	DVI-D, HDMI 2.0, VGA, USB 2.0, USB-C,
External control	IR 3.5 mm jack, RJ45, RS232C 2.5 mm jack,
Audio input	3.5 mm mini jack

Convenience Toggle

Ease of installation	AC Out, Smart Insert,
Remote control signal	Lockable
Network controllable	RS232, RJ45,
Placement	Landscape
Screen-saving functions	Pixel Shift, Low Brightness

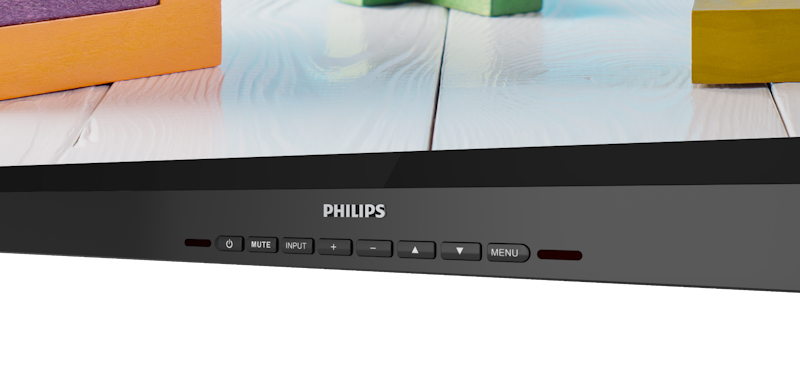

Keyboard control	Lockable
Signal loop through	RS232, IR Loop through,

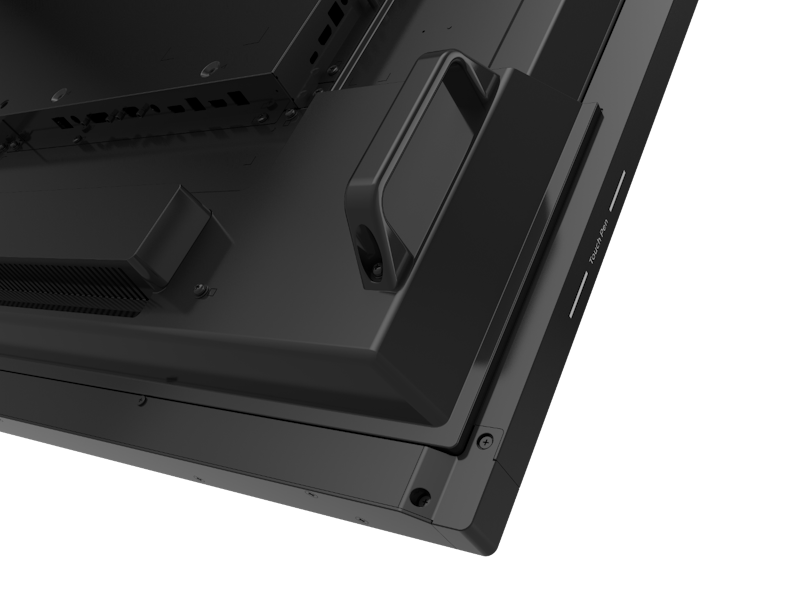

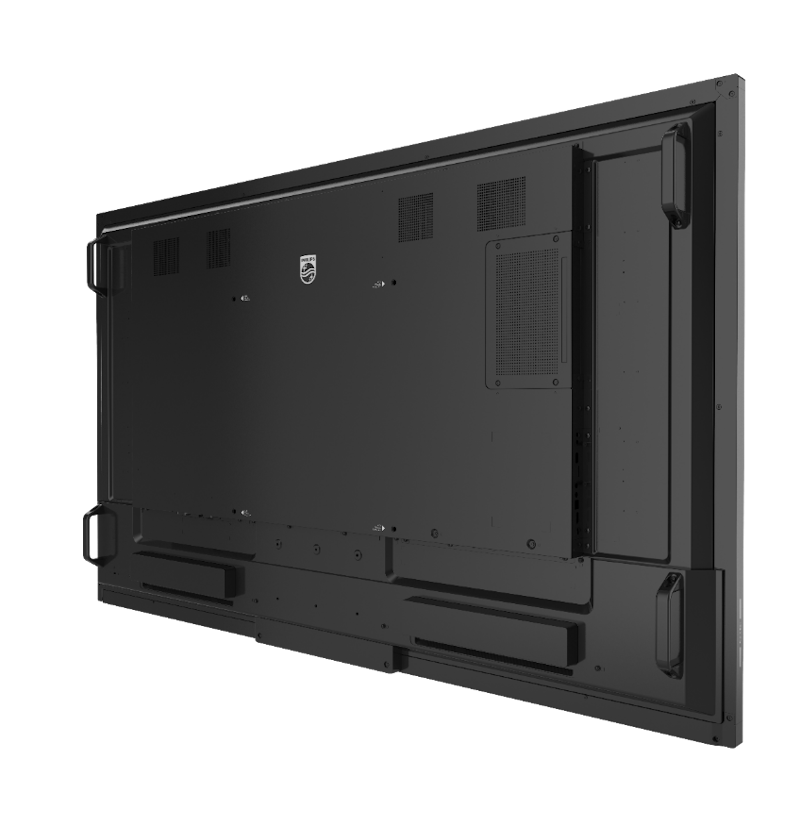

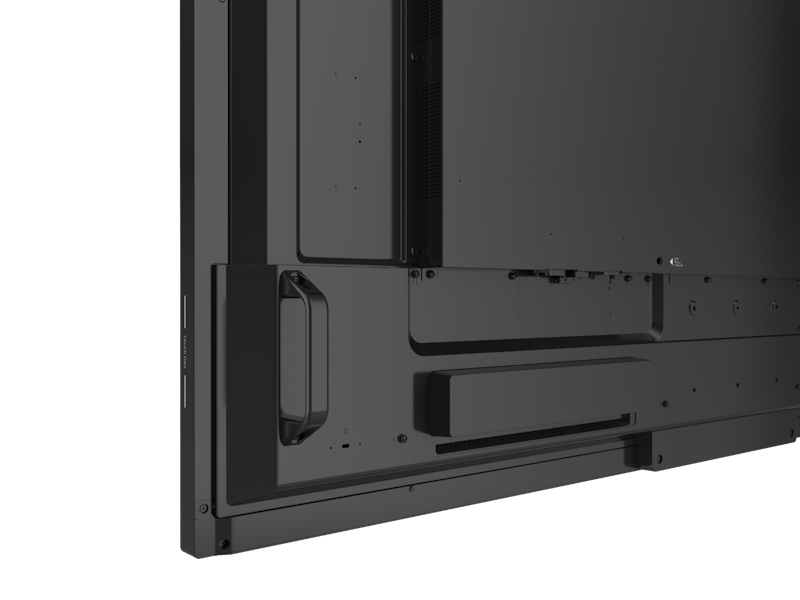

Other convenience	Carrying handles

Accessories Toggle

Optional accessories	Interact dongles
Included Accessories	Cleaning cloth, HDMI Cable, IR sensor cable, Philips logo, Quick start guide, Remote control and AAA batteries, RS232 daisy chain cable, Touch Pen, USB A to B cable, RS232 cable, AC Power Cord, Cable clip, AC switch cover and Screw x 1, DVI-D cable, USB cover and screws,

Dimensions Toggle

Set Width (inch)	58.83 inch

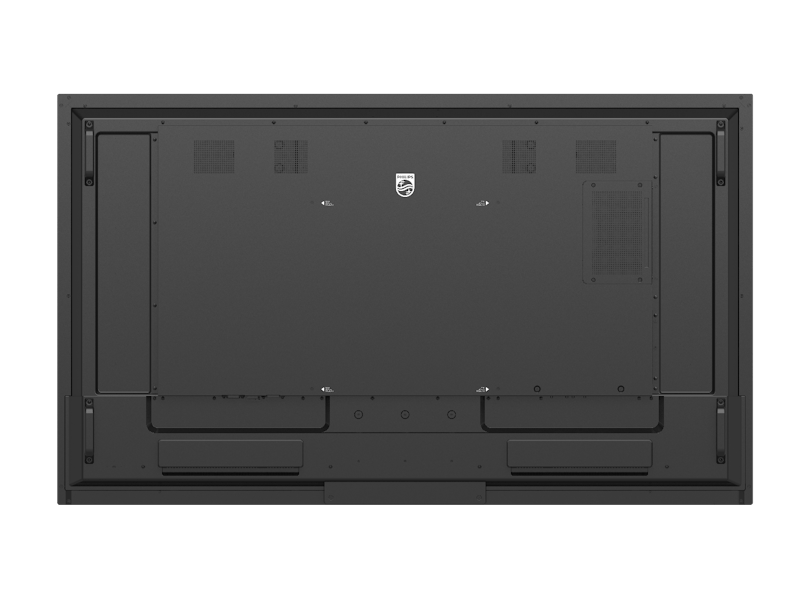

Wall Mount	400 x 400 mm, M8
Set Height	883.2 mm

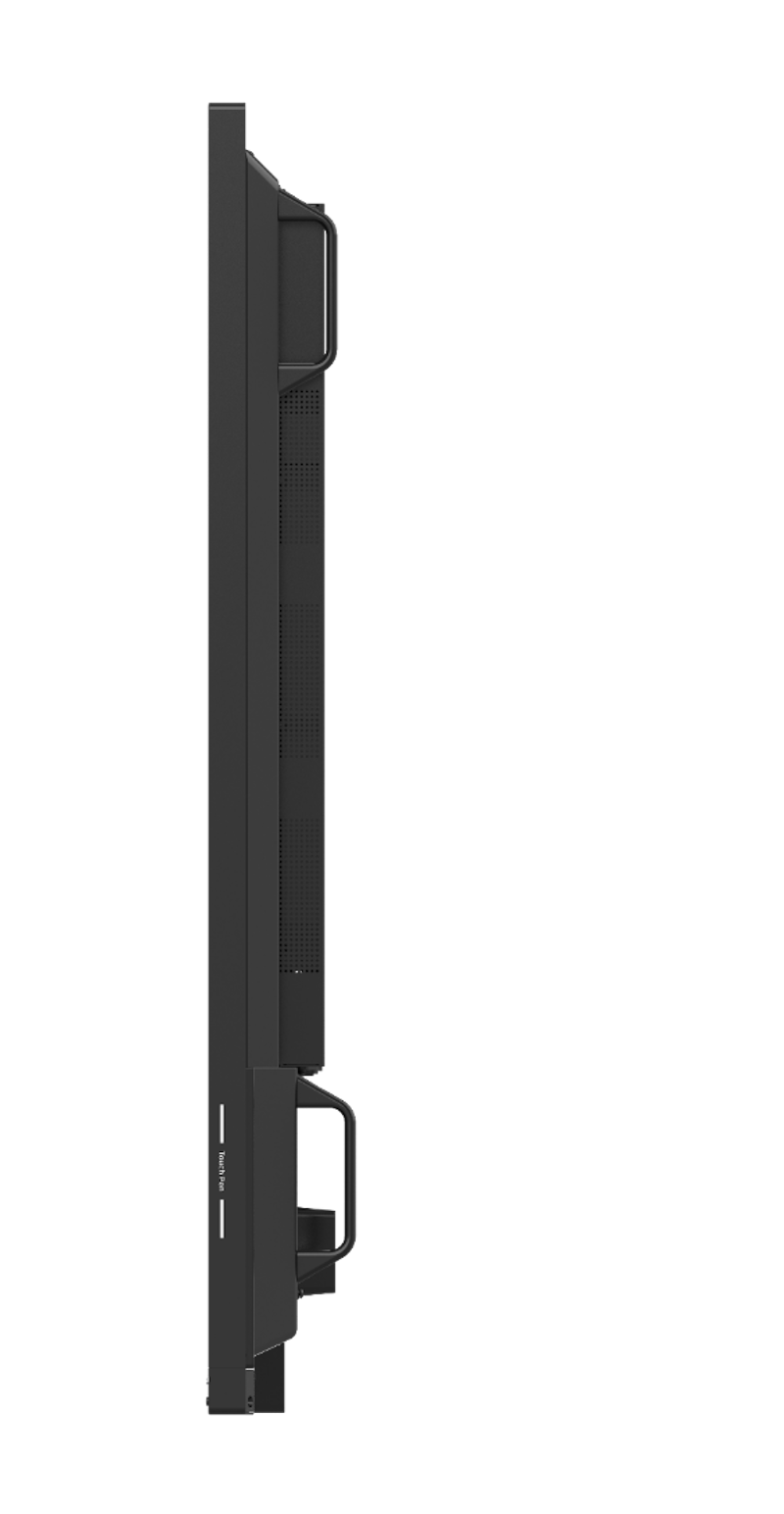

Set Depth	99.5 mm/78.5 mm mm
Smart Insert mount	100 x 100 mm, 6xM4L6
Set Height (inch)	34.77 inch
Bezel width	17.8 mm x 31.7 mm
Set Depth (inch)	3.92/3.09 inch
Weight	43.15 kg
Set Width	1494.3 mm

Internal Player Toggle

CPU	2 x A53 + 2 x A73
Storage	16 GB EMMC
GPU	ARM Mali G51
Memory	3 GB DDR3

Sound

Built-in speakers	2 x 15 W

Power

Power Saving Features	Smart Power
Consumption (Typical)	155 W
Standby power consumption	<0.5 W
Mains power	100 ~ 240 VAC, 50/60 Hz
Consumption (Max)	376 W
Energy Label Class	G

Multimedia Applications Toggle

USB Playback Video	H.263, H.264, H.265, MPEG1/2, MPEG4, VP9,
USB Playback Picture	BMP, JPEG, PNG,
USB Playback Audio	AAC, MPEG, HEAAC,
