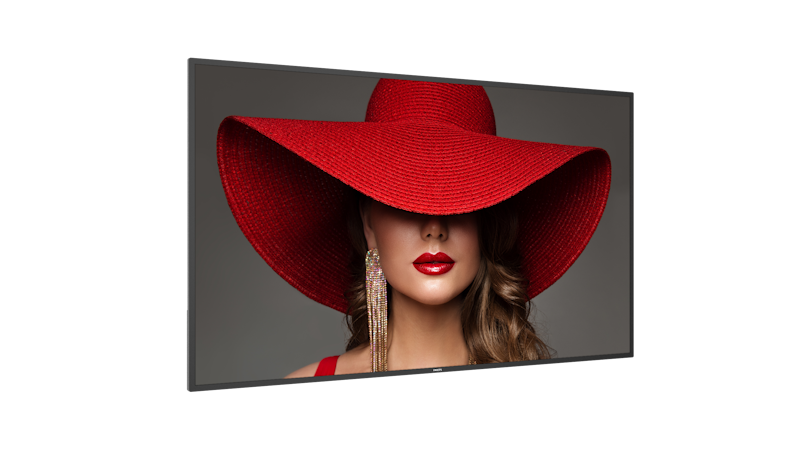

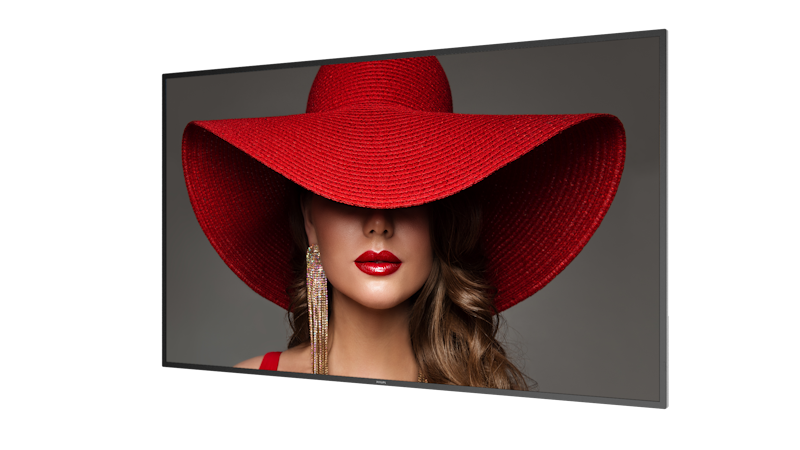

65BDL4650D/00

4000 Series / D-Line

Philips D-Line is designed to engage your audience and delight customers. Powered by Android 11 for easy software integrations, this versatile display is suitable for impact in any setting.

Size: 65”

98” 86” 75” 65” 50” 43”

Get a quote

Connectivity Toggle

Video output	DisplayPort 1.4
WiFi	WiFi 6 + Bluetooth 5.2
Video input	DVI-I, DisplayPort 1.4, HDMI 2.0, USB 3.0, VGA,
Audio input	3.5 mm jack
Audio output	3.5mm jack
External control	RJ45, RS232C 2.5 mm jack, IR 3.5 mm jack,
Other connections	4G/LTE antenna connectors, Micro USB, USB 2.0,

Convenience Toggle

Placement	Landscape, Portrait,
Tiled Matrix	Up to 10 x 15
Network controllable	RS232, External 4G mPCIe slot, RJ45, WiFi,
Energy saving functions	Smart Power
Screen saving functions	Pixel Shift
Signal loop through	IR Loopthrough, DisplayPort, RS232,
Keyboard control	Hidden, Lockable,
WiFi protocol	a b g n, 802.11 ax, 802.11 ac

Accessories Toggle

Included Accessories	RS232 daisy-chain cable, Philips logo, AC Switch Cover, USB Cover, Screws, AC Power Cord, IR sensor cable, Quick start guide, Remote control & AAA batteries, RS232 cable, WiFi module, Wire Clamper,

Dimensions Toggle

Product weight (lb)	61.95 lb
Wall Mount	400mm x 400mm, M8
Set Depth (inch)	3.54/2.71 inch
Set Depth	89.9/68.9 mm
Set Width (inch)	57.57 inch
Set Width	1462.3 mm
Set Height (inch)	32.96 inch
Bezel width	14.9 mm
Set Height	837.3 mm
Product weight	28.1 kg

Internal Player Toggle

Storage	32 GB eMMc
CPU	2x A72 + 4x A53
GPU	ARM Mali-T860 MP4
Memory	4GB RAM

Sound

Built-in speakers	2 x 10W RMS

Power

Energy Label Class	G
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Standby power consumption	<0.5 W
Consumption (Typical)	155 W

Multimedia Applications Toggle

USB Playback Picture	BMP, JPEG, PNG,
USB Playback Video	MPEG, H.263, H.264, H.265, AVI, MP4, MPEG4, VP8, VP9, WEBM,
USB Playback Audio	AAC, HEAAC, MPEG,

Operating conditions Toggle

Temperature range (storage)	-20 ~ 60 °C
Humidity range (storage) [RH]	5 - 95% RH
Humidity range (operation)[RH]	20 - 80% RH
Temperature range (operation)	0 ~ 40 °C
Altitude	0 ~ 3000 m
MTBF	50,000 hour

Miscellaneous Toggle

On-Screen Display Languages	English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish,
Warranty	3 year warranty
Regulatory approvals	CB, CE, FCC, Class A, RoHS, EMF, EnergyStar 8.0, UL,

Picture/Display Toggle

Diagonal screen size (metric)	163.8 cm
Operating system	Android 11
Response time (typical)	8 ms
Pixel pitch	0.372 x 0.3 72 mm
Panel resolution	3840 x 2160
Contrast ratio (typical)	1200:1
Viewing angle (vertical)	178 degree
Picture enhancement	3/2 - 2/2 motion pull down, Dynamic contrast enhancement, Motion compens. deinterlacing, Progressive scan,
Dynamic contrast ratio	500,000:1
Diagonal screen size (inch)	64.5 inch
Brightness	500 cd/m²
Viewing angle (horizontal)	178 degree
Panel technology	ADS
Display colors	1.07 Billion
Optimum resolution	3840 x 2160 @60HZ
Haze	25%
Aspect ratio	16:9

Supported Display Resolution Toggle

Video formats	1080i, 50, 60Hz, 576p, 50Hz, 576i, 50Hz, 480p, 60Hz, 480i, 60Hz, 1080p, 50, 60Hz, 720p, 50,60 Hz, 2160p, 50, 60Hz,
Computer formats	1920 x 1080, 60Hz, 1680 x 1050, 60Hz, 1600 x 900, 60Hz, 1024 x 768, 60Hz, 1280 x 1024, 60Hz, 1280 x 720, 60Hz, 1440 x 900, 60 Hz, 3840 x 2160, 30, 60Hz, 640 x 480, 60Hz, 800 x 600, 60Hz,
