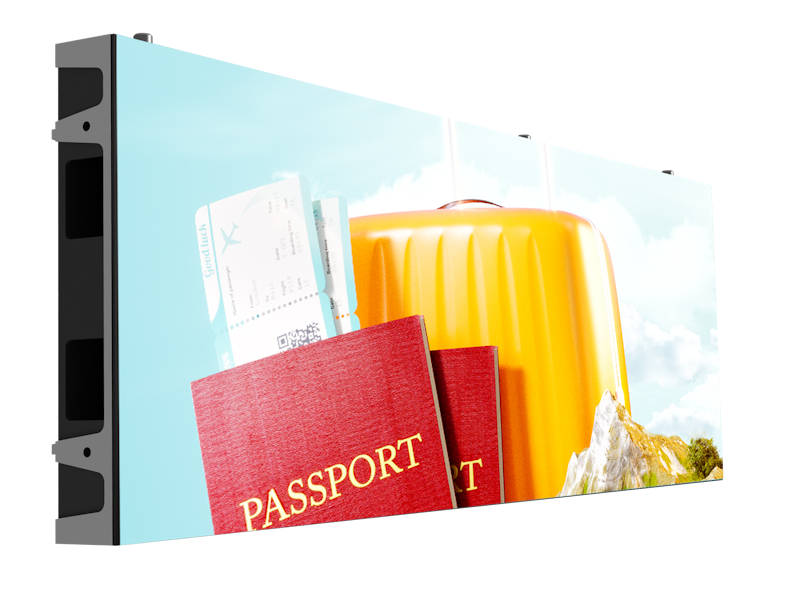

31BDL7424L/00

7000 Series / L-Line

No limits. No boundaries. The Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Size: 31”

41” 31” 22”

Get a quote

Convenience Toggle

Signal control loop through	RJ45
Power loop through	For 230 V environments: 12 cabinets or less, for 110 V environments: 6 cabinets or less, 10 A max
Ease of installation	Guide pins, Light weight,

Accessories Toggle

Power cable	2 pcs
LAN cable (RJ45, CAT-5)	1 pcs
QSG	1 pcs

Cabinet

Side angle (degree)	90
Receiving card spec.	A5S plus
Receiving card quantity	1 pcs
Receiving card brand	NovaStar
Cabinet pixels (Dot)	32.448
Cabinet diagonal (inch)	31.1"
Cabinet resolution (W x H)	312 x 104
Cabinet size (mm)	750 x 250 x 40
Power connector	3 core socket
Cabinet area (m2)	0.1875
Weight (kg)	4.76
Cabinet construction	Die-Casting Aluminium
Data connector	RJ45

Power

Typical power cons. (W)	<39.5
Input voltage	AC100~240 V
Max. power cons. AC (W)	<118.4
Max. power cons. BC (W)	<153.6
Black screen power cons. (W)	<10

Picture/Display Toggle

Calibration (brightness/colour)	Supported
Colour temperature adjust range	4000~9500 K
Aspect ratio	3:1
Viewing angle (horizontal)	160 degree degree
Picture enhancement	Wide colour gamut display
Refresh rate (Hz)	2100~3900
Brightness uniformity	>=97%
Frame frequency (Hz)	50 & 60
Brightness after calibration	2750 nits
Placement	Landscape
Usage	Indoor
Brightness before calibration	3500 nits
Contrast ratio (typical)	11000:1
Colour temperature default	6500±500 K
Viewing angle (vertical)	155 degree degree

Operating conditions Toggle

Temperature range (storage)	-20~50 °C
Temperature range (operation)	-20~45 °C
Humidity range (operation)[RH]	10~80%
Humidity range (storage) [RH]	10~85%

Miscellaneous Toggle

Conformal coating	hub board, backside LED module
Fire retardancy certification	BS 476 Part7:1997, UL94,
Regulatory approvals	EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS, FCC SDOC, Part 15, Class A, EAC,
Warranty	2 years

Module

LED type	SMD 1515 Gold wire
LED lifetime(Hrs)	100,000 at half brightness
Module size (W x H in mm)	249.9*249.9
Pixel constitution	1R1G1B
Pixel pitch (mm)	2.4
Module resolution (WxH pixels)	104 x 104

Packaging Data Toggle

Dimension of packaging (mm)	950x421x224
Gross weight (KG)	9.40
