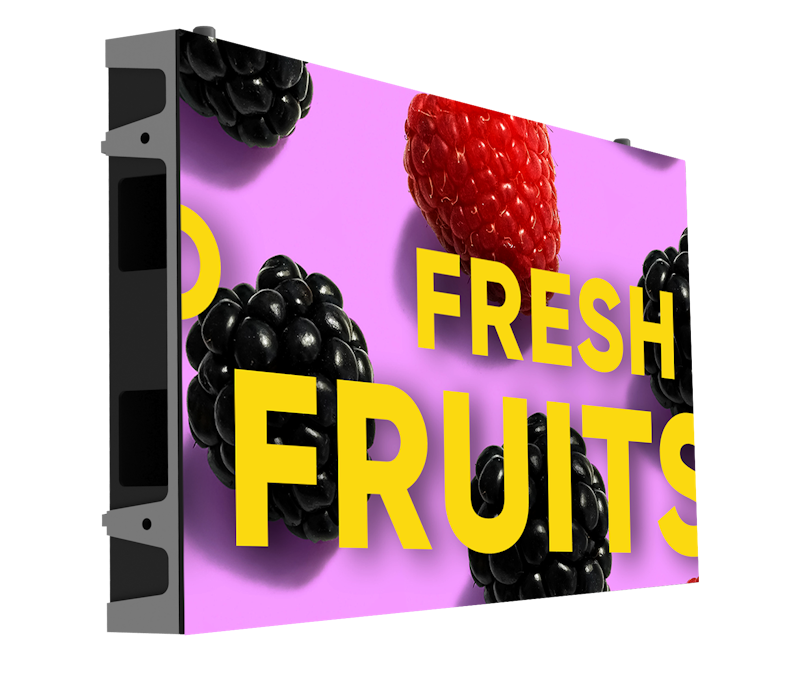

22BDL7424L/00

7000 Series / L-Line

No limits. No boundaries. The Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Size: 22”
41” 31” 22”
Get a quote
Convenience Toggle
Power loop throughFor 230 V environments: 16 cabinets or less, for 110 V environments: 8 cabinets or less, 10 A max
Ease of installationGuide pins, Light weight,
Signal control loop throughRJ45
Accessories Toggle
Power cable1 pcs
LAN cable (RJ45, CAT-5)1 pcs
QSG1 pcs
Cabinet Toggle
Receiving card spec.A5S plus
Side angle (degree)90
Receiving card brandNovaStar
Cabinet pixels (Dot)21.632
Receiving card quantity1 pcs
Cabinet constructionDie-Casting Aluminium
Data connectorRJ45
Cabinet diagonal (inch)22"
Cabinet area (m2)0.125
Weight (kg)3.40
Cabinet resolution (W x H)208 x 104
Cabinet size (mm)500 x 250 x 40
Power connector3 core socket
Power Toggle
Typical power cons. (W)<26.9
Black screen power cons. (W)<9
Max. power cons. BC (W)<103.2
Input voltageAC100~240 V
Max. power cons. AC (W)<80.6
Operating conditions Toggle
Humidity range (storage) [RH]10~85%
Humidity range (operation)[RH]10~80%
Temperature range (storage)-20~50 °C
Temperature range (operation)-20~45 °C
Miscellaneous Toggle
Conformal coatinghub board, backside LED module
Fire retardancy certificationBS 476 Part7:1997, UL94,
Regulatory approvalsEN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS, FCC SDOC, Part 15, Class A, EAC,
Warranty2 years
Picture/Display Toggle
Aspect ratio2:1
Viewing angle (horizontal)160 degree degree
Colour temperature adjust range4000~9500 K
Calibration (brightness/colour)Supported
Brightness before calibration3500 nits
Refresh rate (Hz)2100~3900
Picture enhancementWide colour gamut display
Colour temperature default6500±500 K
PlacementLandscape
UsageIndoor
Brightness after calibration2750 nits
Brightness uniformity>=97%
Frame frequency (Hz)50 & 60
Contrast ratio (typical)11000:1
Viewing angle (vertical)155 degree degree
Module Toggle
LED typeSMD 1515 Gold wire
Module size (W x H in mm)249.9*249.9
LED lifetime(Hrs)100,000 at half brightness
Pixel pitch (mm)2.4
Pixel constitution1R1G1B
Module resolution (WxH pixels)104 x 104
Packaging Data Toggle
Gross weight (KG)7.39
Dimension of packaging (mm)650x421x224
