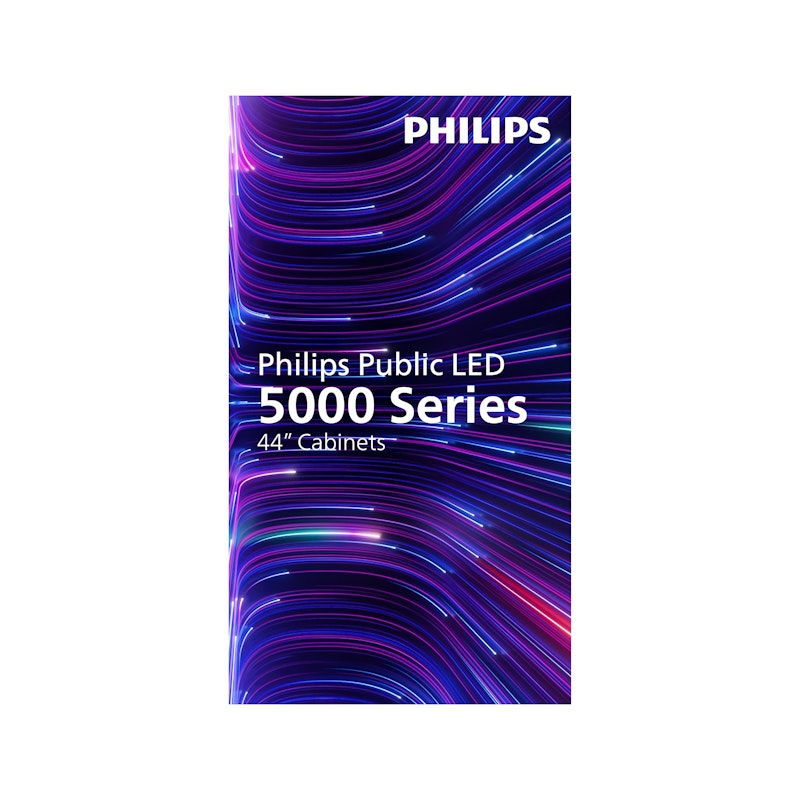

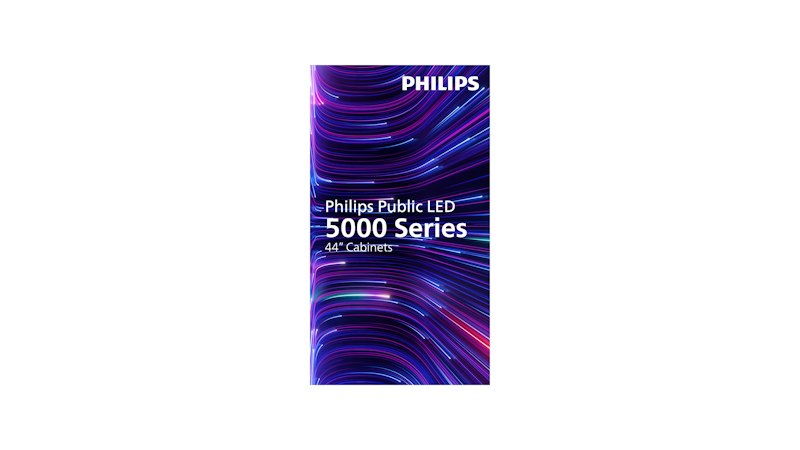

44HDL5000PP/00

5000 Series / L-Line

Empower uniquely crafted Public LED displays that redefine audience engagement. Deliver your immersive visual experiences with seamless connectivity, variable sizing and customisable curvature, allowing you to design a breathtaking display.

Size: 44”

44” 28”

Get a quote

Convenience Toggle

Signal control loop through	RJ45
Power loop through	- for 230 V environments: 8 cabinets or fewer - for 110 V environments: 4 cabinets or fewer
Ease of installation	Guide pins, Light weight, Locking mechanism for cabinet,

Accessories Toggle

LAN cable (RJ45, CAT-5)	1 pcs
QSG	1 pcs

Cabinet

Cabinet diagonal (inch)	44.02
Receiving card brand	NovaStar
Cabinet size (mm)	500 x 1000 x 40
Power connector	In/Out
Data connector	RJ45
Cabinet construction	Die-cast aluminium
Weight (kg)	11.2
Cabinet area (m2)	0.50

Specific module 14HDL5019PM/00 Toggle

Cabinet resolution (W x H)	256 x 512
Max. power cons. BC (W/m²)	388 W
Pixel pitch	1.9 mm
Cabinet pixels (Dot)	131,072
Consumption (Typical W/m²)	120 W
Brightness after calibration	≤ 500 nit
Brightness before calibration	550 nit
Module resolution (W x H)	128 x 128
Max. power cons. AC (W/m²)	340 W

Miscellaneous Toggle

Regulatory approvals	RoHS, EAC, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, EN55032, EN55035, FCC SDOC, Part 15, Class A,
Warranty	2 years

Picture/Display Toggle

Refresh rate (Hz)	3840 Hz
Picture enhancement	Wide colour gamut display
Calibration (brightness/colour)	Supported
Colour temperature adjust range	4000~9500 K
Aspect ratio	1:2
Viewing angle (horizontal)	150 degree
Three specific modules of pixel pitch	1.9 mm, 2.5 mm and 3.9 mm
Frame frequency (Hz)	50 & 60
Brightness Uniformity	>=97%
Colour temperature default	6500±500 K
Contrast ratio (typical)	>=3000:1
Viewing angle (vertical)	150 degree
Placement	Landscape, Portrait,

Operating conditions Toggle

Humidity range (operation)[RH]	10~80%
Humidity range (storage) [RH]	10~85%
Temperature range (operation)	-20~45 °C
LED Lifetime	TBD
Temperature range (storage)	-20~50 °C

Specific module 14HDL5039PM/00 Toggle

Cabinet resolution (W x H)	128 x 256
Max. power cons. BC (W/m²)	340 W
Module resolution (W x H)	64 x 64
Pixel pitch	3.9 mm
Cabinet pixels (Dot)	32,768
Brightness before calibration	550 nit
Max. power cons. AC (W/m²)	300 W
Consumption (Typical W/m²)	100 W
Brightness after calibration	≤ 500 nit

Specific module 14HDL5025PM/00 Toggle

Brightness after calibration	≤ 500 nit
Module resolution (W x H)	100 x 100
Consumption (Typical W/m²)	100 W
Brightness before calibration	550 nit
Cabinet resolution (W x H)	200 x 400
Max. power cons. AC (W/m²)	300 W
Max. power cons. BC (W/m²)	340 W
Cabinet pixels (Dot)	20.000
Pixel pitch	2.5 mm
