55BDL3452T/00

3000 Series / T-Line

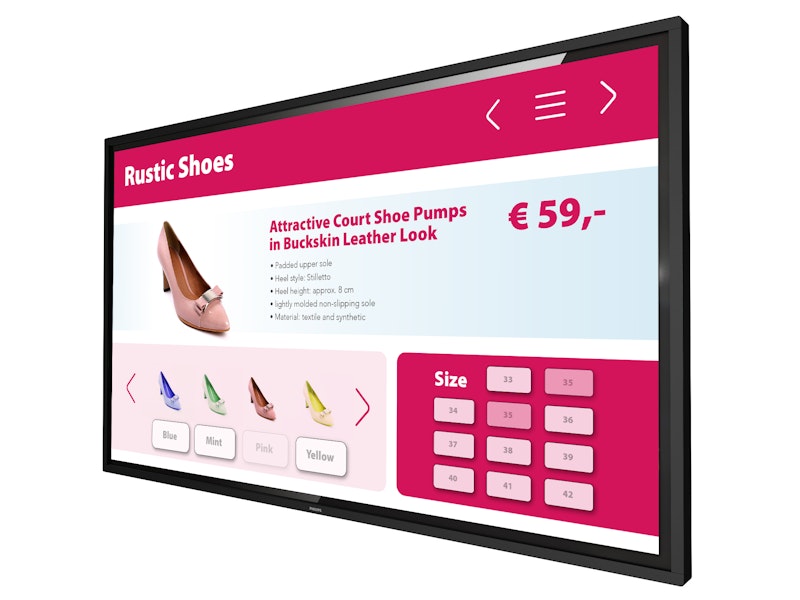

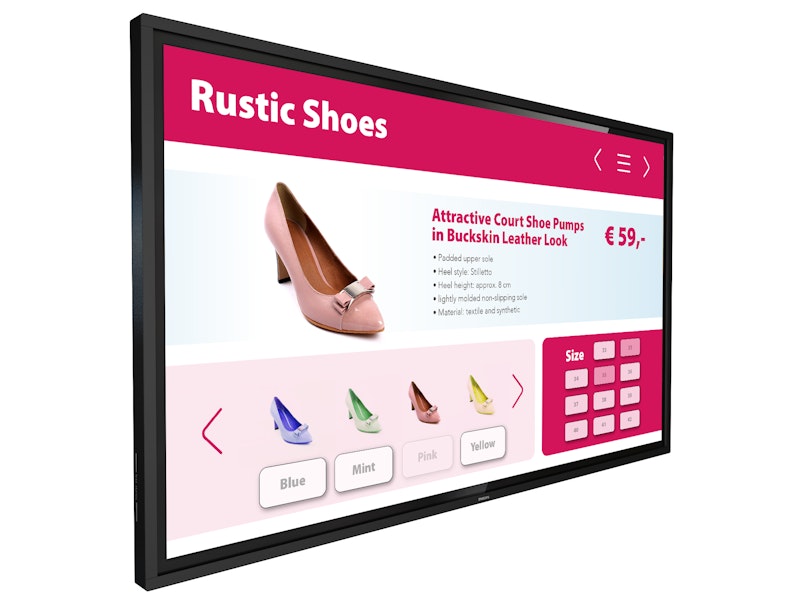

Inspire collaboration. Deliver information. This responsive Philips Multi-Touch Professional UHD Display is ideal for multi-finger, multi-user applications—from wayfinding to presentations. Up to 20 touch points can be active at once.

Size: 55”

55” 43”

Get a quote

Miscellaneous Toggle

Regulatory approvals	BSMI, CB, CE, FCC, Class A, RoHS, CU, ETL, IMDA, PSB,
On-Screen Display Languages	Arabic, English, French, German, Italian, Japanese, Polish, Spanish, Turkish, Russian, Simplified Chinese, Traditional Chinese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish,
Warranty	3 year warranty

Operating conditions Toggle

Temperature range (storage)	-20~60 °C
MTBF	50,000 hour
Humidity range (operation)[RH]	20–80%
Humidity range (storage) [RH]	5–95%
Altitude	0 ~ 3000 m
Temperature range (operation)	0 ~ 40 °C

Picture/Display Toggle

Viewing angle (vertical)	178 degree
Panel resolution	3840 x 2160
Pixel pitch	0.315 x 0.315 mm
Aspect ratio	16:9
Viewing angle (horizontal)	178 degree
Display colours	1.07 B
Picture enhancement	3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement,
Optimum resolution	3840 x 2160 @ 60 Hz
Surface treatment	Anti-Glare coating
Response time (typical)	8 ms
Operating system	Android 8.0
Panel technology	IPS
Diagonal screen size (inch)	55 inch
Contrast ratio (typical)	1300:1
Brightness	400 cd/m²
Diagonal screen size (metric)	138.8 cm

Supported Display Resolution Toggle

Computer formats	640 x 480, 60, 67, 72, 75 Hz, 800 x 600, 56, 60, 72, 75 Hz, 1024 x 768, 60 Hz, 1280 x 768, 60 Hz, 1280 x 800, 60 Hz, 1280 x 1024, 60 Hz, 1360 x 768, 60 Hz, 1366 x 768, 60 Hz, 1440 x 900, 60 Hz, 1600 x 1200, 60 Hz, 1920 x 1080, 60 Hz, 1920 x 1200, 60 Hz, 720 x 400, 70 Hz, 800 x 600, 60, 72, 75 Hz, 3840 x 2160, 60 Hz, 50 Hz,
Video formats	480i, 60 Hz, 480p, 60 Hz, 576p, 50 Hz, 576i, 50 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, 1080i, 25, 30 Hz, 480i, 30, 60 Hz, 576i, 25, 50 Hz, 3840 x 2160, 24, 25 Hz, 3840 x 2160, 30Hz,

Interactivity Toggle

Plug and play	HID compliant
Multi-touch technology	IRHE
Touchpoints	20 simultaneous touch points
Protection glass	3 mm tempered safety glass

Connectivity Toggle

Video input	DVI-D, HDMI 2.0, USB 2.0 Type A, USB 2.0 Type B, VGA,
External control	RJ45, IR 3.5 mm jack, RS232C 2.5 mm jack,
Audio input	3.5 mm jack
Other connections	micro SD, OPS,
Audio output	3.5 mm jack

Convenience Toggle

Remote control signal	Lockable
Network controllable	RS232, RJ45,
Energy-saving functions	Smart Power
Placement	Landscape, Portrait,
Screen-saving functions	Pixel Shift, Low Brightness
Keyboard control	Hidden, Lockable,
Signal loop through	IR Loop through, RS232,

Accessories Toggle

Included Accessories	Cleaning cloth, IR sensor cable, Philips logo, Power supply cable, Quick start guide, Remote control and AAA batteries, RS232 cable, RS232 daisy chain cable, USB Cover and screw x 1,
Stand	BM05922

Internal Player Toggle

GPU	ARM Mali G51
Memory	2 GB DDR3, 8 GB,
Wi-Fi	2.4 G, 5 G,
CPU	2 x A53 + 2 x A73

Dimensions Toggle

Set Depth	75.5/81.7 mm
Set Width	1272.6 mm
Product weight (lb)	59.52 lb
Set Depth (inch)	2.97/3.22 inch
Product weight	27.0 kg
Bezel width	16.3 mm
Set Height	743.4 mm
Set Width (inch)	50.10 inch
Set Height (inch)	29.27 inch
Wall Mount	400 x 400 mm, M6

Sound

Built-in speakers	2 x 10 W

Power

Consumption (Typical)	140 W
Energy Label Class	G
Mains power	100 ~ 240 VAC, 50/60 Hz
Consumption (Max)	270 W
Power Saving Features	Smart Power
Standby power consumption	<0.5 W

Multimedia Applications Toggle

USB Playback Video	M2TS, M4V, MK3D, MKV, MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV,
USB Playback Picture	BMP, GIF, JPEG, JPG, PDF,
USB Playback Audio	AAC, AIF, AIFF, ASF, LPCM, M3U, M4A, MP3, MP4, WAV, WMA,
