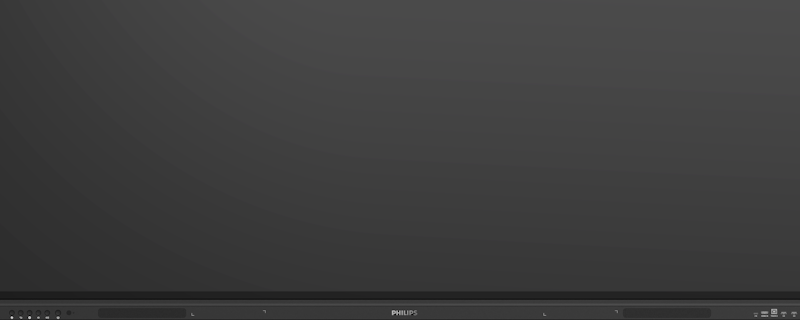

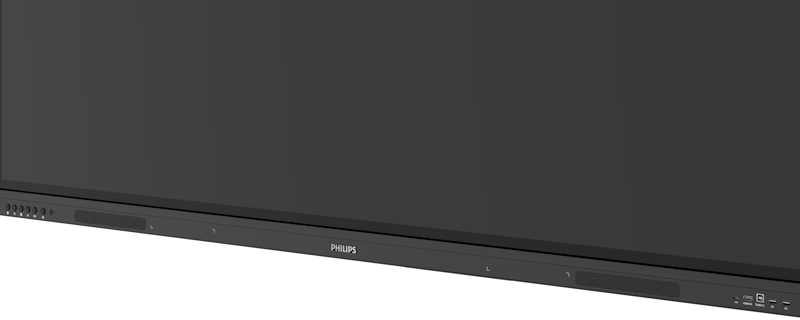

86BDL3152E/00

3000 Series / E-Line

This interactive display maximises engagement and inspires collaboration with up to 40 touchpoints. Powered by Android 13 and with toughened anti-glare and anti-reflection glass, it's made to withstand heavy daily use in busy environments.

Size: 86”

86” 75” 65”

Get a quote

Operating conditions Toggle

Temperature range (storage)	-20~60 °C
Altitude	0 ~ 5000 m
Temperature range (operation)	0 ~ 40 °C
MTBF	30,000 hour
Humidity range (storage) [RH]	10–90%
Humidity range (operation)[RH]	10–90%

Picture/Display Toggle

Diagonal screen size (metric)	218.44 cm
Brightness	400 cd/m²
Panel technology	VA
Operating system	Android 13
Panel resolution	3840 x 2160
Pixel pitch	0.4935 x 0.4935 [mm]
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	5000:1
Response time (typical)	8 ms
Optimum resolution	3840 x 2160 @ 60 Hz
Diagonal screen size (inch)	86 inch
Display colours	1.07 B
Picture enhancement	3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement,
Viewing angle (horizontal)	178 degree
Aspect ratio	16:9
OS UI resolution	1920 x 1080 @ 60 Hz

Miscellaneous Toggle

On-Screen Display Languages	Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese,
Warranty	5-year warranty
Regulatory approvals	CE, FCC, Class A, RoHS, CB, EAC, EMF, ETL, Energy Star 8.0,

Weight

Product without stand (kg)	59.2 kg
Product with packaging (kg)	75 kg
Product without stand (lb)	130.51 lb
Product with packaging (lb)	165.35 lb

Supported Display Resolution Toggle

Video formats	480i, 60 Hz, 480p, 60 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, 2160p, 30, 60 Hz,

Interactivity Toggle

Protection glass	Anti-Glare, Tempered safety glass 7 MOHS,
Touchpoints	50 simultaneous touch points
Multi-touch technology	0-gap Infrared touch
Plug and play	HID compliant

Connectivity Toggle

Audio output	3.5 mm Mini Jack, SPDIF,
External control	RS232C D-Sub9, RJ45 x 2,
Audio input	3.5 mm mini jack
Bluetooth	BT5.2
Other connections	OPS, USB-B,
Video input	HDMI 2.0, VGA, USB-C, USB 2.0, USB 3.0,

Convenience Toggle

Other convenience	Carrying handles
Remote control signal	Lockable
Placement	Landscape
Screen-saving functions	Pixel Shift, Low Brightness
Keyboard control	Lockable
Network controllable	RS232, RJ45,

Accessories Toggle

Accessories	Power code, HDMI cable, USB-A to B, Remote control and AAA batteries, 2 pcs stylus, Quick start guide, Wall mount,

Internal Player Toggle

Storage	32 GB eMMc
Wi-Fi	2.4/5 GHz
CPU	Quad-Core Cortex A55
Memory	4 GB RAM
GPU	Multi-Core Mali-G52

Dimensions Toggle

Wall Mount	800 x 600 mm, M8
Set Height	1159.9 mm
Set Depth (inch)	3.94 inch
Set Height (inch)	45.67 inch
Set Width (inch)	77.05 inch
Set Width	1957 mm
Set Depth	95.5 mm
Bezel width (L/R, T/B)	16.6 mm/45.0 mm

Sound

Built-in speakers	2 x 16 W

Power

Mains power	100 ~ 240 VAC, 50/60 Hz
Standby power consumption	<0.5 W
Power Saving Features	Smart Power
Consumption (Typical)	180 W
Energy Label Class	D

Multimedia Applications Toggle

USB Playback Picture	BMP, JPEG, PNG,
USB Playback Video	H.263, H.264, H.265, MPEG1/2, MPEG4, VP8,
USB Playback Audio	AAC, MPEG, HEAAC,
