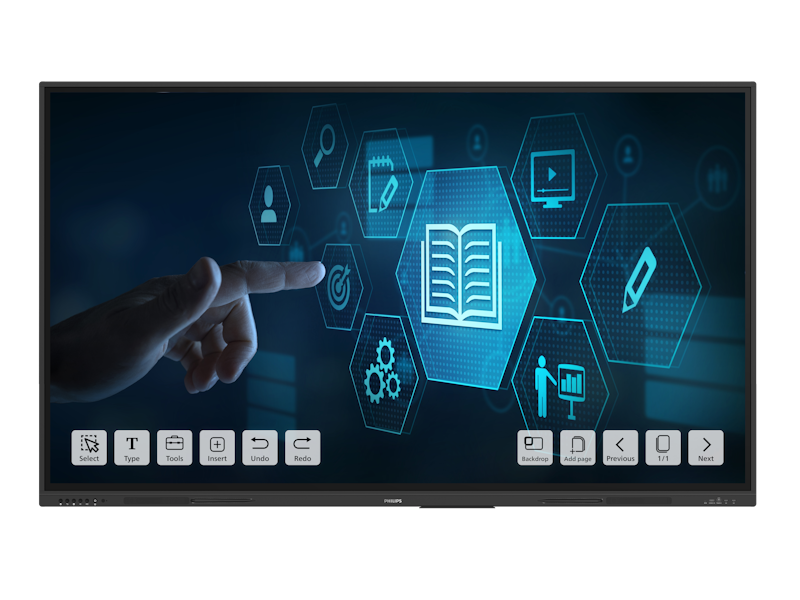

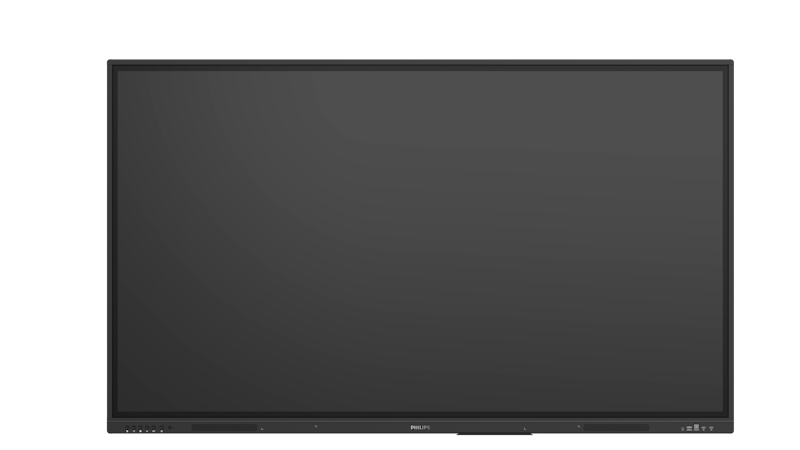

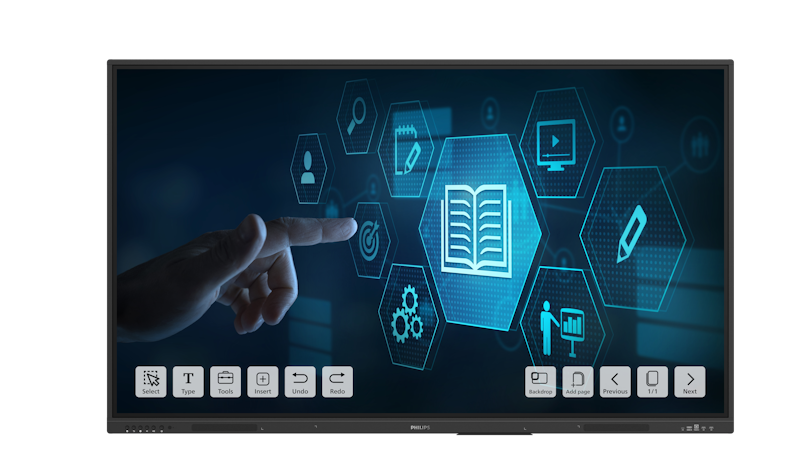

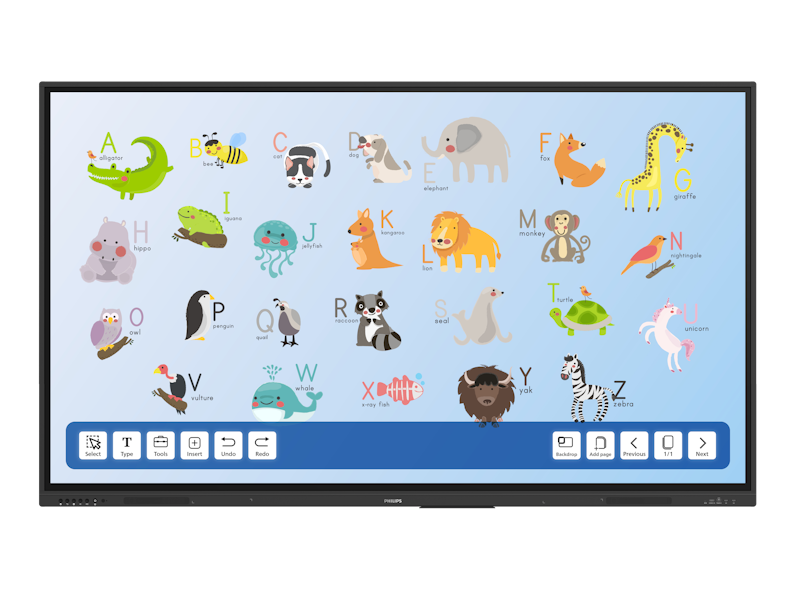

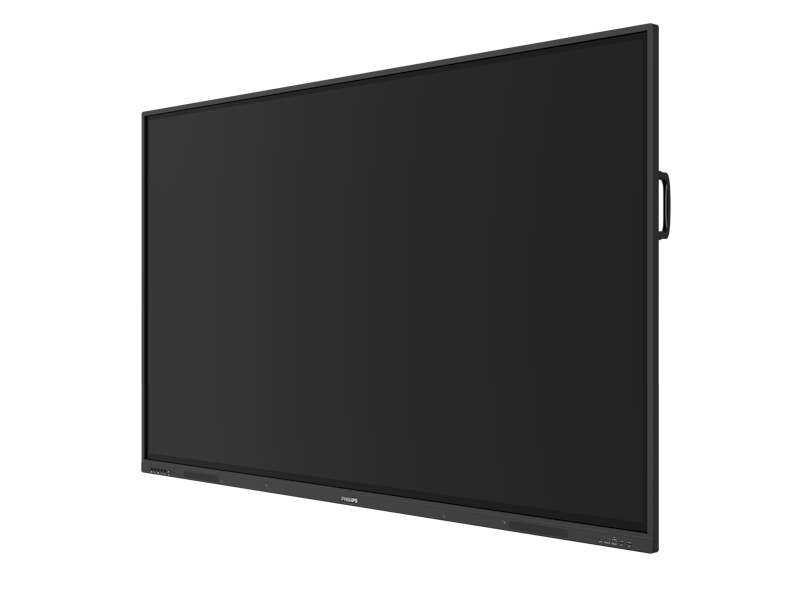

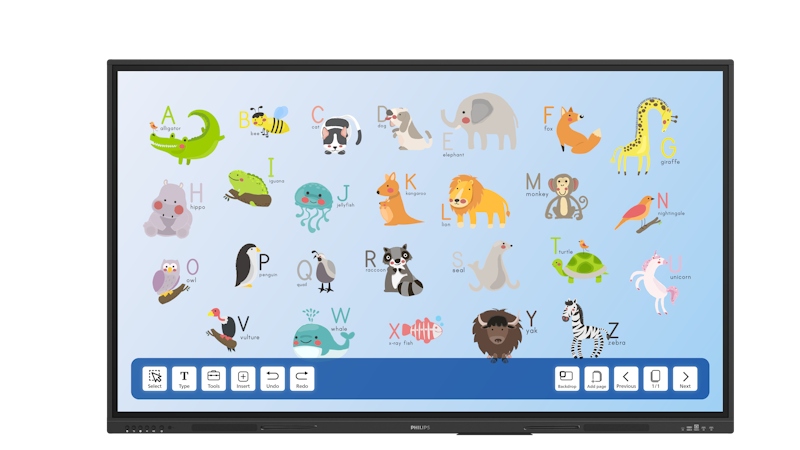

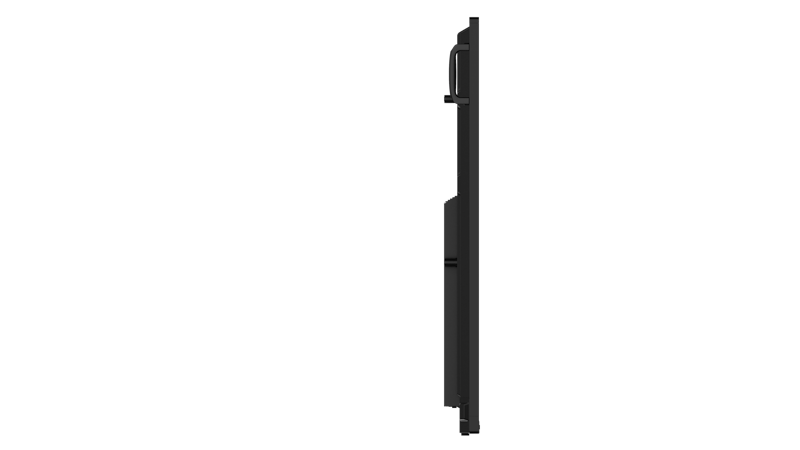

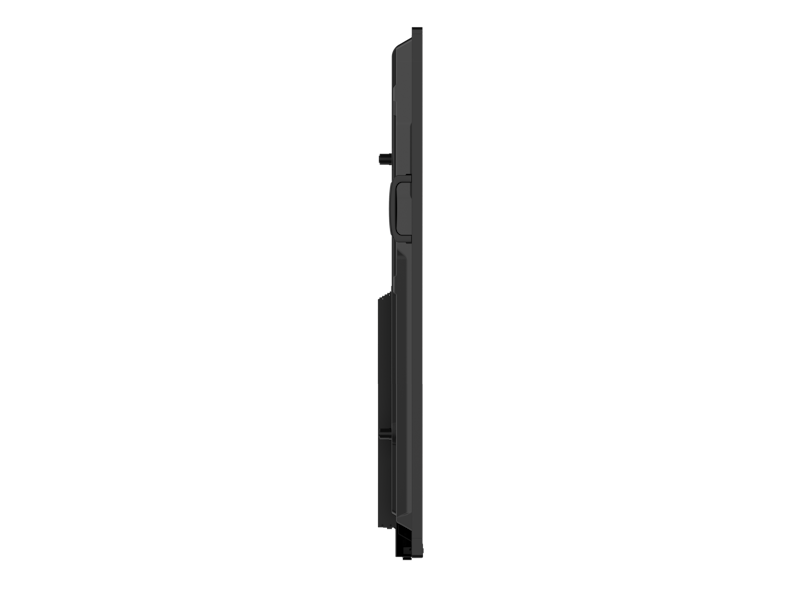

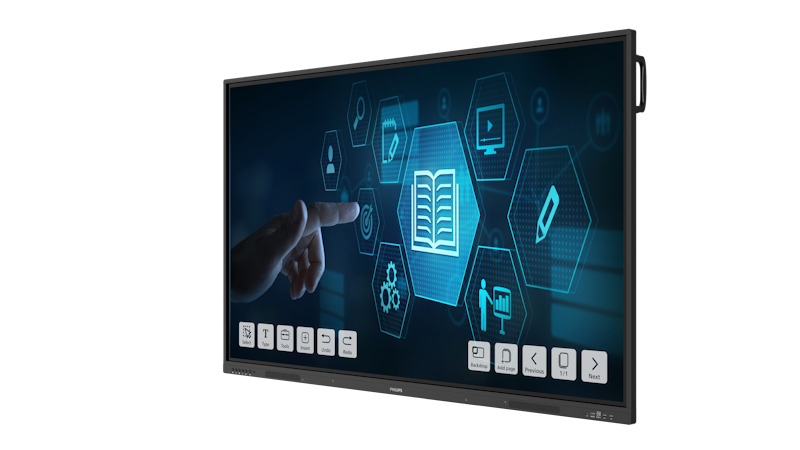

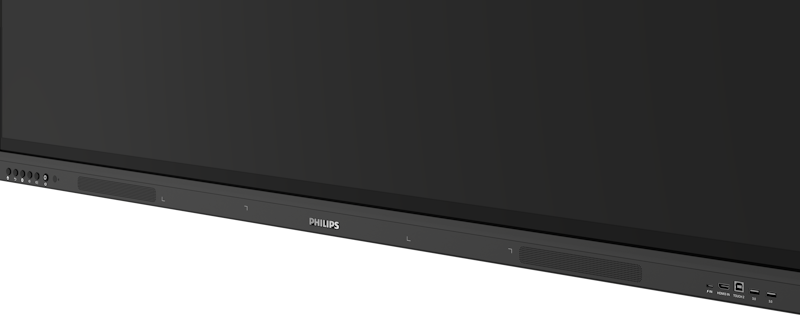

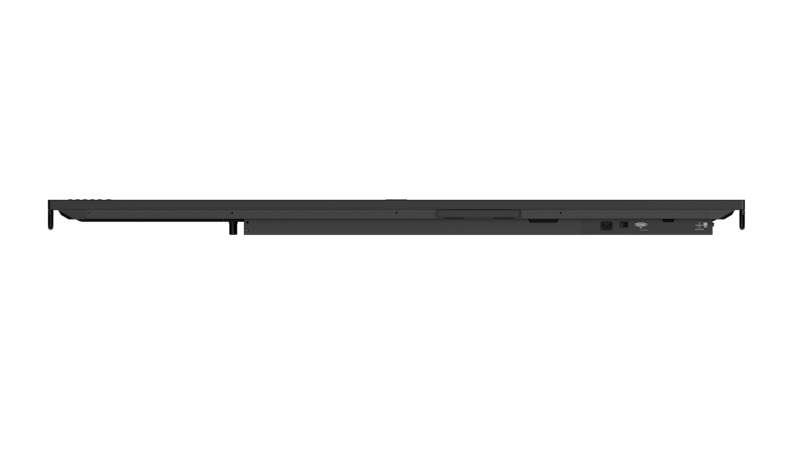

65BDL3152E/00

3000 Series / E-Line

This interactive display maximises engagement and inspires collaboration with up to 40 touchpoints. Powered by Android 13 and with toughened anti-glare and anti-reflection glass, it's made to withstand heavy daily use in busy environments.

Size: 65”

86” 75” 65”

Get a quote

Miscellaneous Toggle

On-Screen Display Languages	Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese,
Regulatory approvals	CE, FCC, Class A, RoHS, CB, EAC, EMF, ETL, Energy Star 8.0,
Warranty	5-year warranty

Weight

Product without stand (kg)	35.45 kg
Product with packaging (lb)	103.62 lb
Product with packaging (kg)	47 kg
Product without stand (lb)	78.15 lb

Picture/Display Toggle

Viewing angle (horizontal)	178 degree
Aspect ratio	16:9
Brightness	400 cd/m²
Diagonal screen size (metric)	163.9 cm
Panel resolution	3840 x 2160
Pixel pitch	0.372 x 0.372 [mm]
OS UI resolution	1920 x 1080 @ 60 Hz
Picture enhancement	3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement,
Optimum resolution	3840 x 2160 @ 60 Hz
Operating system	Android 13
Panel technology	VA
Response time (typical)	6.5 ms
Contrast ratio (typical)	5000:1
Diagonal screen size (inch)	65 inch
Viewing angle (vertical)	178 degree
Display colours	1.07 B

Operating conditions Toggle

MTBF	50,000 hour
Temperature range (storage)	-20~60 °C
Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	10–90%
Altitude	0 ~ 5000 m
Humidity range (operation)[RH]	10–90%

Supported Display Resolution Toggle

Video formats	480i, 60 Hz, 480p, 60 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, 2160p, 30, 60 Hz,

Interactivity Toggle

Plug and play	HID compliant
Protection glass	Anti-Glare, Tempered safety glass 7 MOHS,
Multi-touch technology	0-gap Infrared touch
Touchpoints	50 simultaneous touch points

Connectivity Toggle

Audio output	3.5 mm Mini Jack, SPDIF,
Video input	VGA, USB-C, HDMI 2.0, USB 2.0, USB 3.0,
Audio input	3.5 mm mini jack
Other connections	OPS, USB-B,
Bluetooth	BT5.2
External control	RS232C D-Sub9, RJ45 x 2,

Convenience Toggle

Network controllable	RS232, RJ45,
Remote control signal	Lockable
Placement	Landscape
Screen-saving functions	Pixel Shift, Low Brightness
Other convenience	Carrying handles
Keyboard control	Lockable

Accessories Toggle

Accessories	Power code, HDMI cable, USB-A to B, Remote control and AAA batteries, 2 pcs stylus, Quick start guide, Wall mount,

Dimensions Toggle

Set Depth	86.2 mm
Set Height	896.6 mm

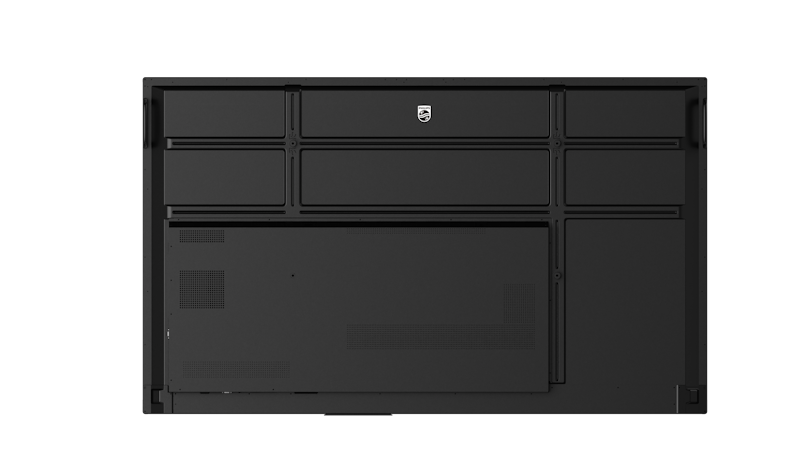

Wall Mount	600 x 400 mm, M8
Set Width	1488.4 mm
Bezel width (L/R, T/B)	16.6 mm/45.0 mm
Set Width (inch)	58.6 inch
Set Height (inch)	35.28 inch
Set Depth (inch)	3.40 inch
Weight	35.45 kg
Bezel width	16.6mm / 45.0 mm(B）

Internal Player Toggle

GPU	Multi-Core Mali-G52
Storage	32 GB eMMc
Memory	4 GB RAM
CPU	Quad-Core Cortex A55
Wi-Fi	2.4/5 GHz

Sound

Built-in speakers	2 x 16 W

Power

Consumption (Typical)	140 W
Energy Label Class	F
Mains power	100 ~ 240 VAC, 50/60 Hz
Power Saving Features	Smart Power
Standby power consumption	<0.5 W

Multimedia Applications Toggle

USB Playback Audio	AAC, MPEG, HEAAC,
USB Playback Picture	BMP, JPEG, PNG,
USB Playback Video	H.263, H.264, H.265, MPEG1/2, MPEG4, VP8,
