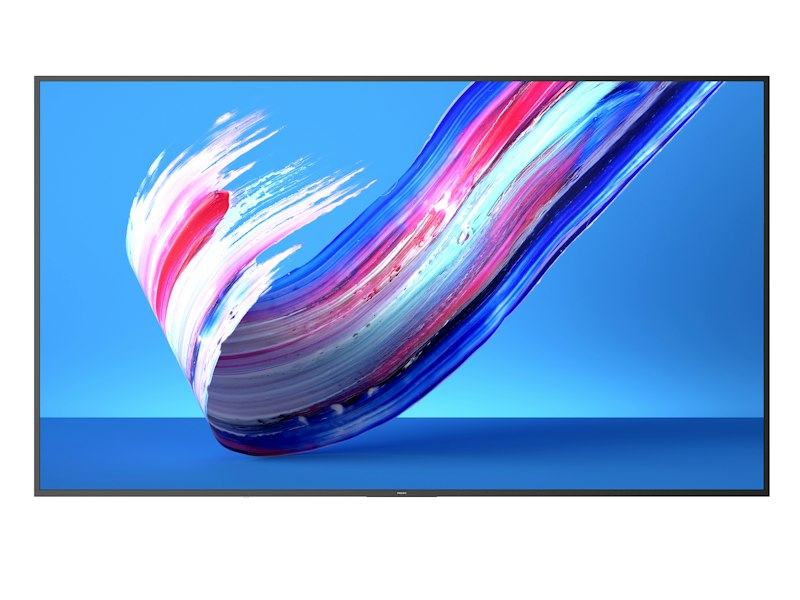

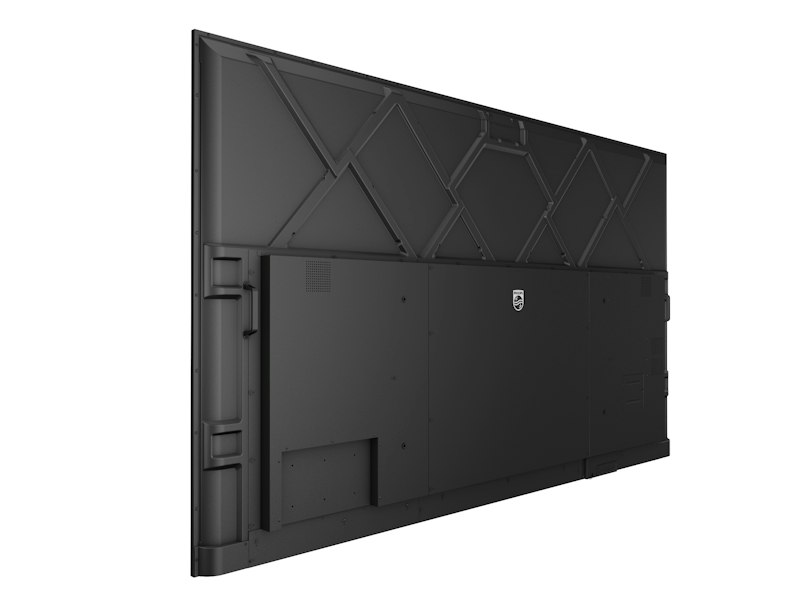

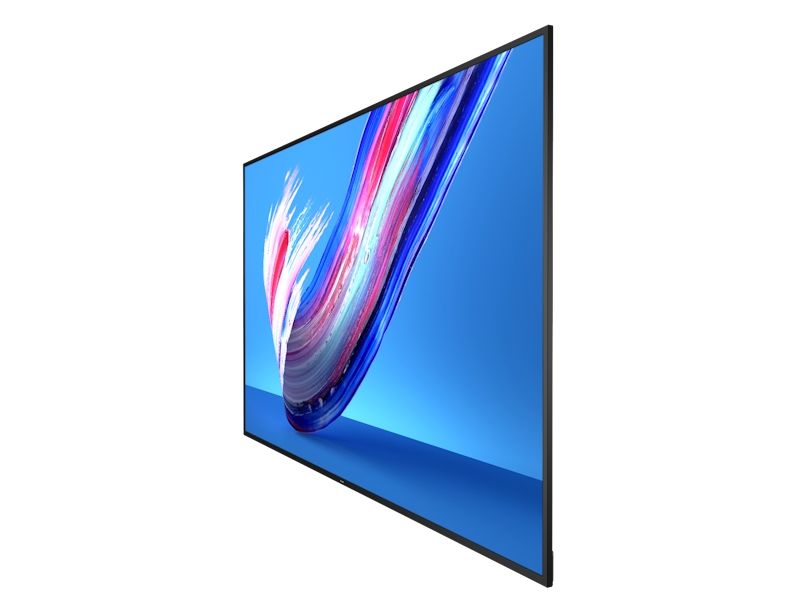

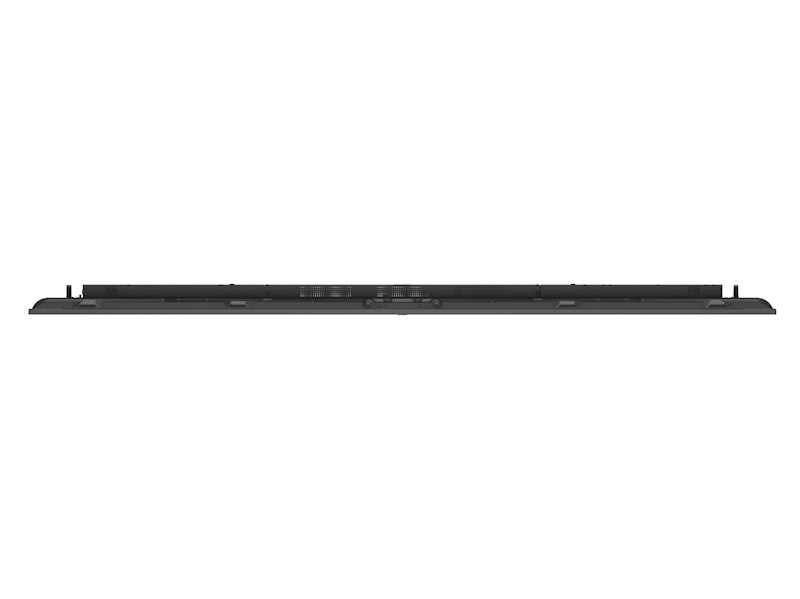

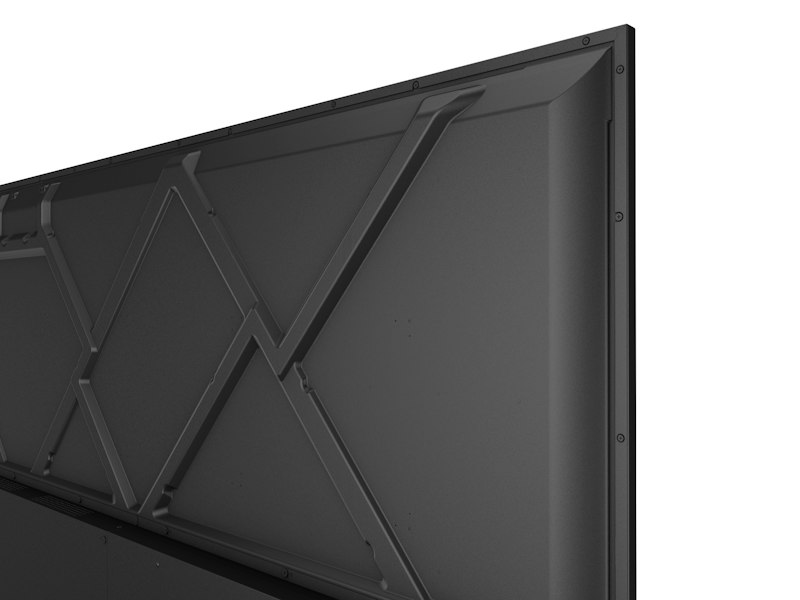

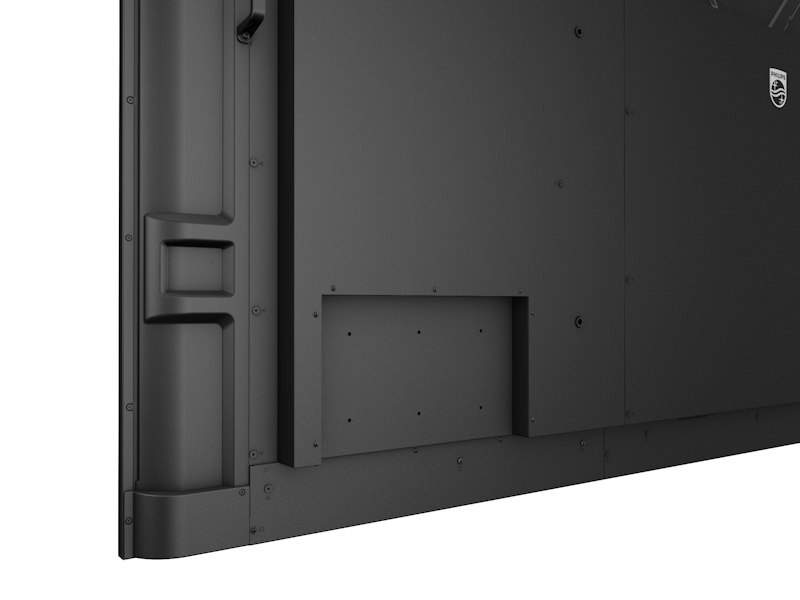

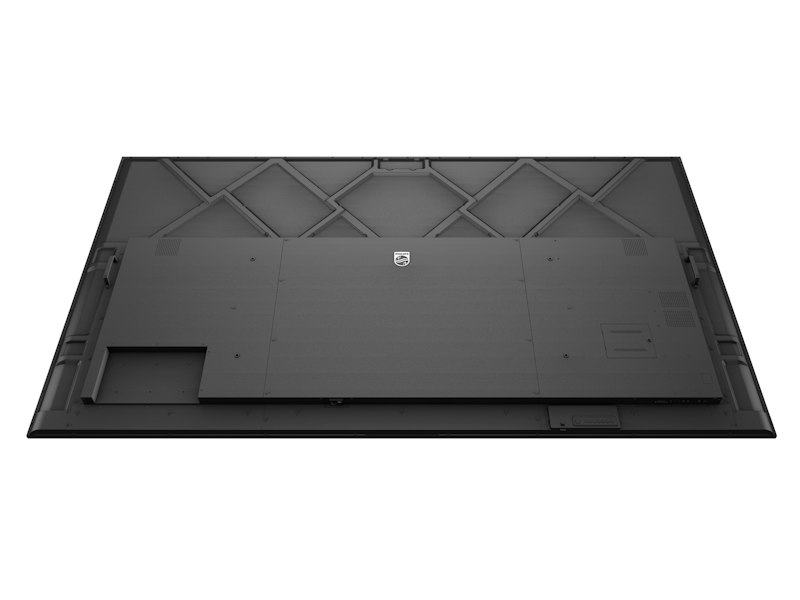

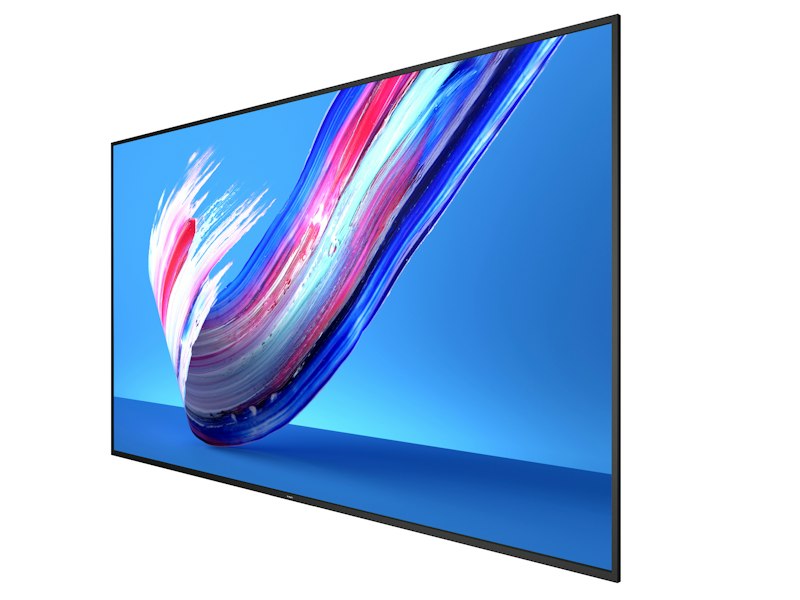

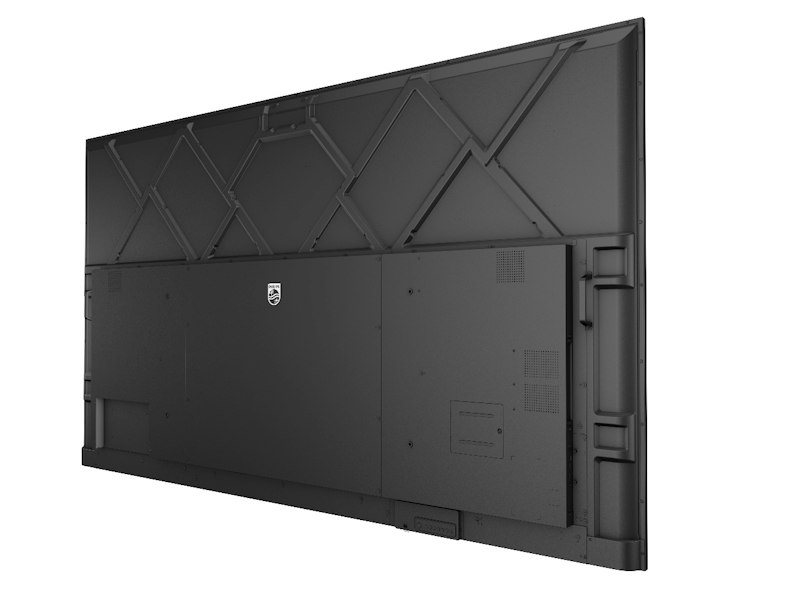

98BDL3650Q/75

3000 Series / Q-Line

Inform and enthral with a Philips Q-Line 4K Ultra HD digital display. This reliable, easy-to-install, Android powered signage solution is Wave-ready for remote management, putting you in full control, any time, anywhere.

Size: 98”

98” 86” 75” 50” 43”

Get a quote

Connectivity Toggle

External control	RS232C 2.5 mm jack, IR 3.5 mm jack, RJ45,
Audio output	3.5mm jack
Video input	USB 2.0, DVI-I, HDMI 2.0, USB 3.0,
Other connections	micro SD, OPS,
Audio input	3.5 mm jack

Convenience Toggle

Tiled Matrix	Up to 3 x 3
Placement	Landscape, Portrait,
Energy saving functions	Smart Power
Ease of installation	Smart Insert
Remote control signal	Lockable
Signal loop through	RS232, IR Loopthrough,
Network controllable	RS232, RJ45,
Keyboard control	Hidden, Lockable,

Accessories Toggle

Included Accessories	IR sensor cable, RS232 daisy-chain cable, Philips logo, AC Power Cord, AC Switch Cover, Quick start guide, Remote control & AAA batteries, RS232 cable, USB cover and screws, Wire Clamper,

Internal Player Toggle

Memory	16GB, 3GB DDR,
CPU	Quad Core Cortex A55
GPU	G52 MC1

Dimensions Toggle

Product weight	65.2 kg
Set Depth (inch)	3.54 inch
Set Height (inch)	49.42 inch
Set Height	1255.3 mm
Set Depth	90 mm

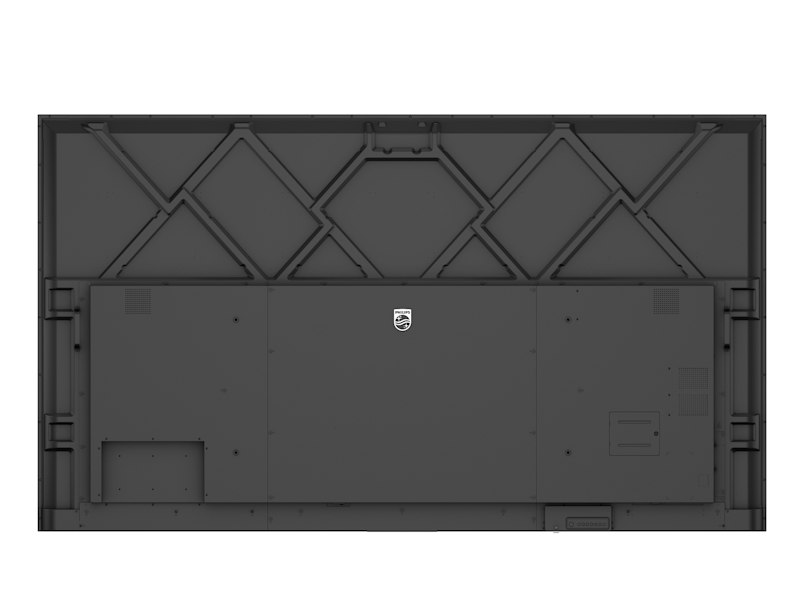

Wall Mount	1000 mm x 400 mm, M8
Set Width (inch)	86.35 inch
Bezel width	15.9mm: L/R/T , 20.1mm: B
Set Width	2193.4 mm
Product weight (lb)	143.74 lb

Sound

Built-in speakers	2 x 10W RMS

Power

Consumption (Typical)	TBD W
Mains power	100 - 240V~, 50/60Hz
Standby power consumption	<0.5W
Power Saving Features	Smart Power
Energy Label Class	G
Consumption (Max)	TBD

Multimedia Applications Toggle

USB Playback Video	MPEG, H.264, H.263, H.265, AVI, MP4, VP8,
USB Playback Audio	AAC, HEAAC, MPEG,
USB Playback Picture	BMP, JPEG, PNG,

Miscellaneous Toggle

Regulatory approvals	CE, CB, FCC, Class A, VCCI, RoHS, UL,
On-Screen Display Languages	Simplified Chinese, Traditional Chinese, English, French, German, Italian, Polish, Russian, Spanish, Turkish, Japanese, Arabic,
Warranty	3 year warranty

Picture/Display Toggle

Display colors	1.07 Billion
Optimum resolution	3840 x 2160 @ 60 Hz
Haze	25%
Pixel pitch	0.56 x 0.56 mm
Brightness	400 cd/m²
Diagonal screen size (inch)	97.5 inch
Viewing angle (vertical)	178 degree
Panel resolution	3840 x 2160
Diagonal screen size (metric)	247.7 cm
Viewing angle (horizontal)	178 degree
Response time (typical)	8 ms
Operating system	Android 10
Panel technology	IPS
Dynamic contrast ratio	500,000:1
Picture enhancement	3/2 - 2/2 motion pull down, Progressive scan, Dynamic contrast enhancement,
Aspect ratio	16:9
Contrast ratio (typical)	1200:1

Operating conditions Toggle

Altitude	0 ~ 3000 m
Temperature range (operation)	0 ~ 40 °C
Humidity range (operation)[RH]	20 ~ 80% RH
Temperature range (storage)	-20 ~ 60 °C
Humidity range (storage) [RH]	5 ~ 95% RH
MTBF	50,000 hour

Supported Display Resolution Toggle

Video formats	1080p, 50, 60Hz, 1080i, 50, 60Hz, 720p, 50,60 Hz, 2160p, 50, 60Hz,
Computer formats	1920 x 1080, 60Hz, 1680 x 1050, 60Hz, 1600 x 1200, 60Hz, 1440 x 900, 60Hz, 1280 x 1024, 60Hz, 1280 x 800, 60Hz, 1280 x 720, 60Hz, 1024 x 768, 60, 70, 75Hz, 3840 x 2160, 60Hz,
