67HUL6583DP/00

6000 Series / L-Line

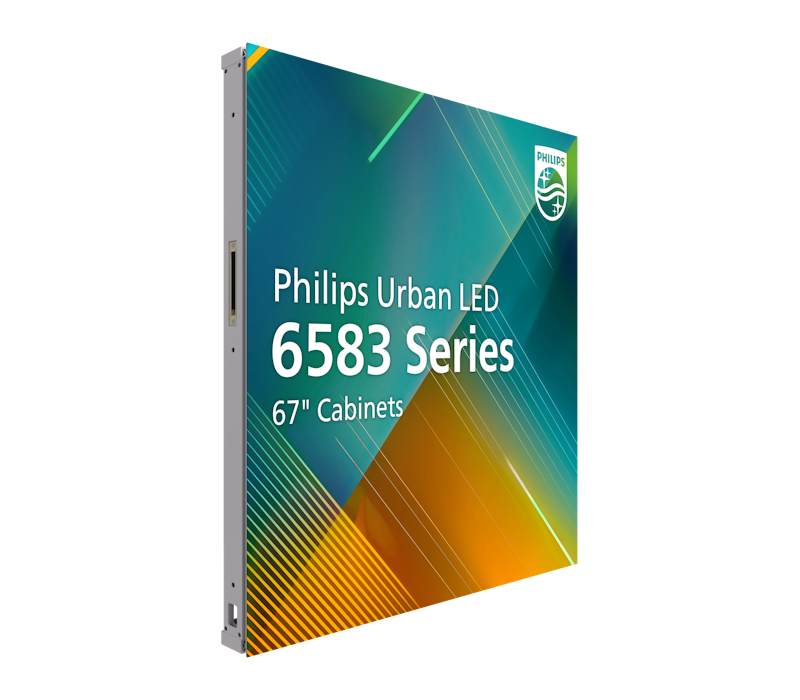

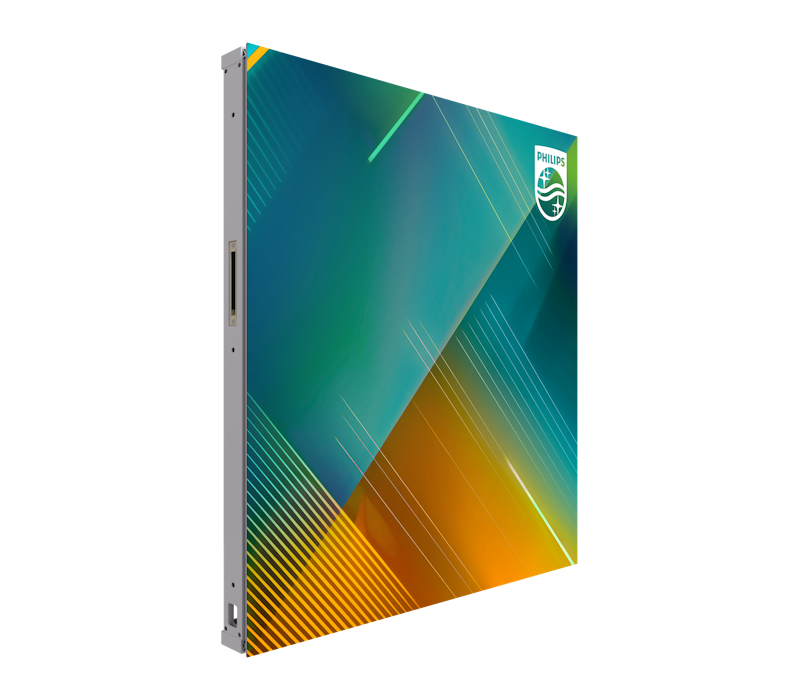

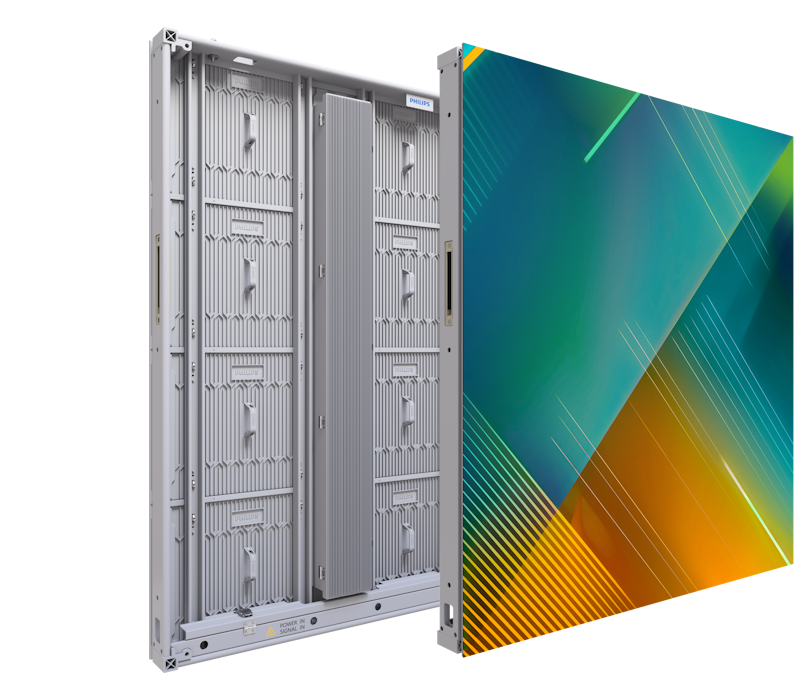

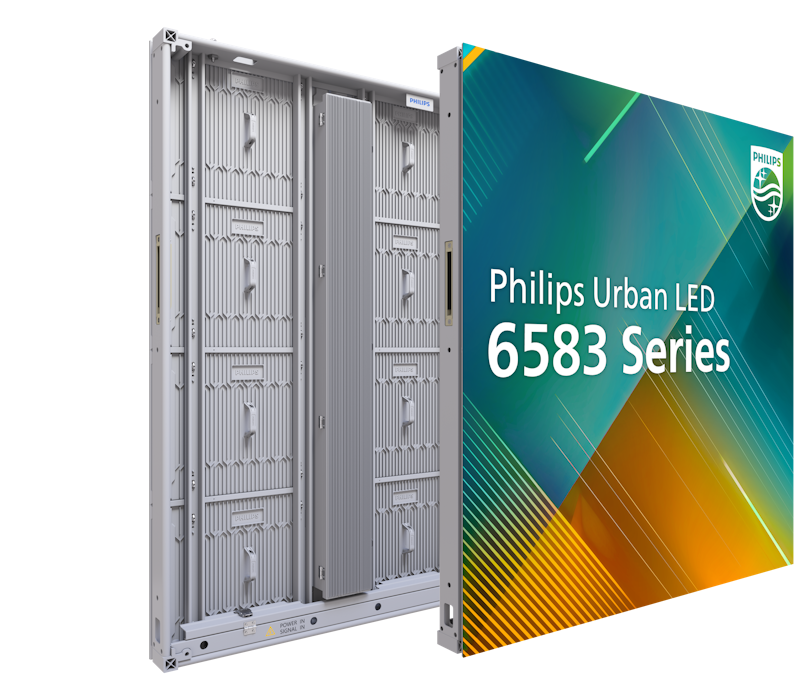

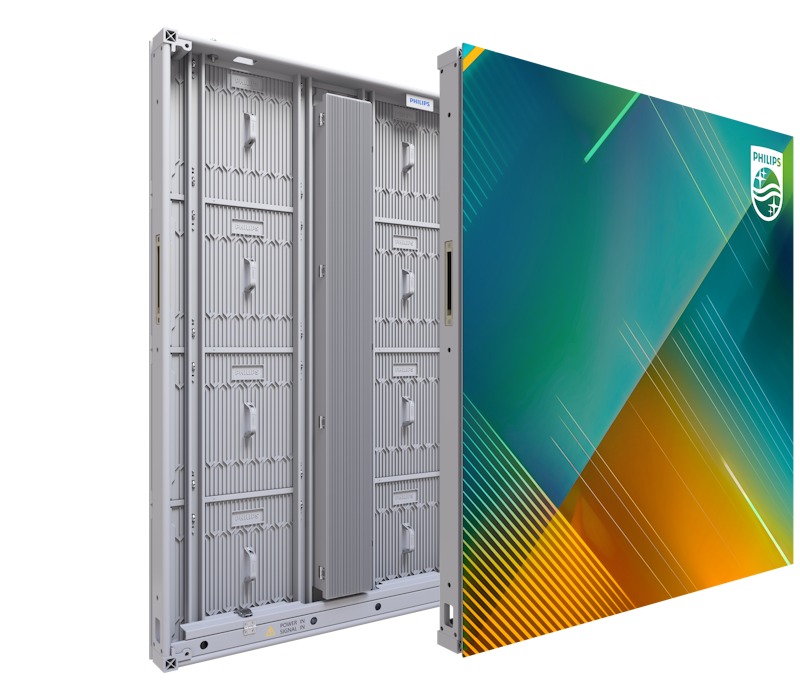

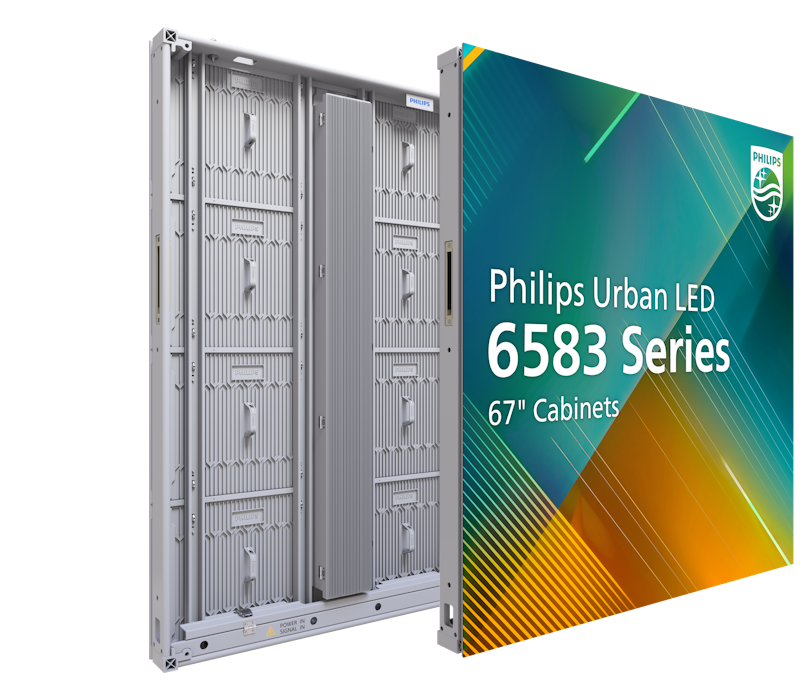

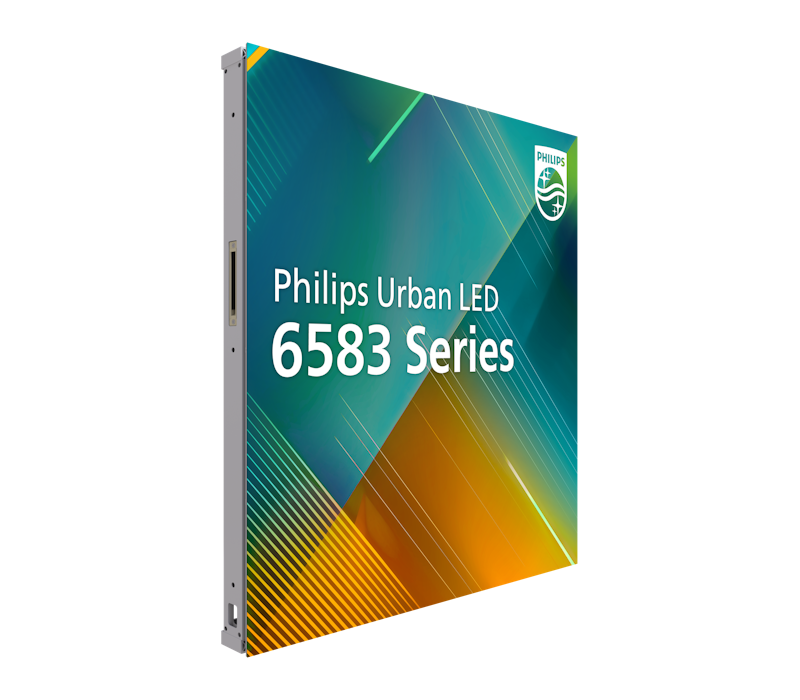

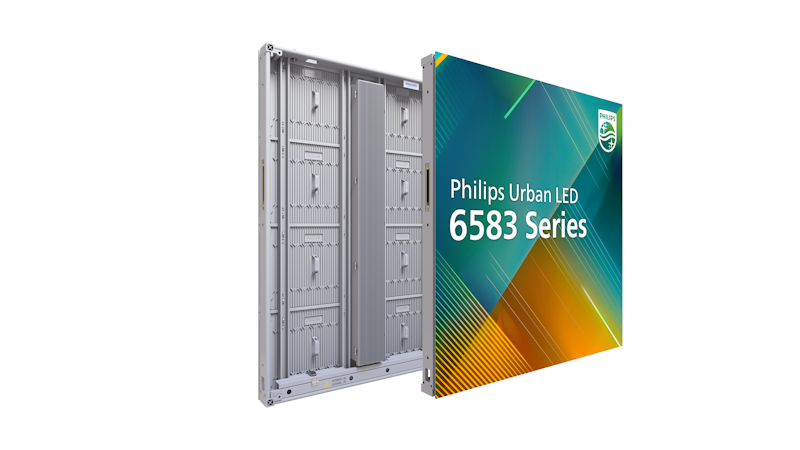

The Urban LED 6000 is energy efficient and delivers ultra-high brightness with exceptional visual clarity. Ultimate visuals for billboards, arenas and airports. With front and rear maintenance, it accommodates different cabinet sizes.

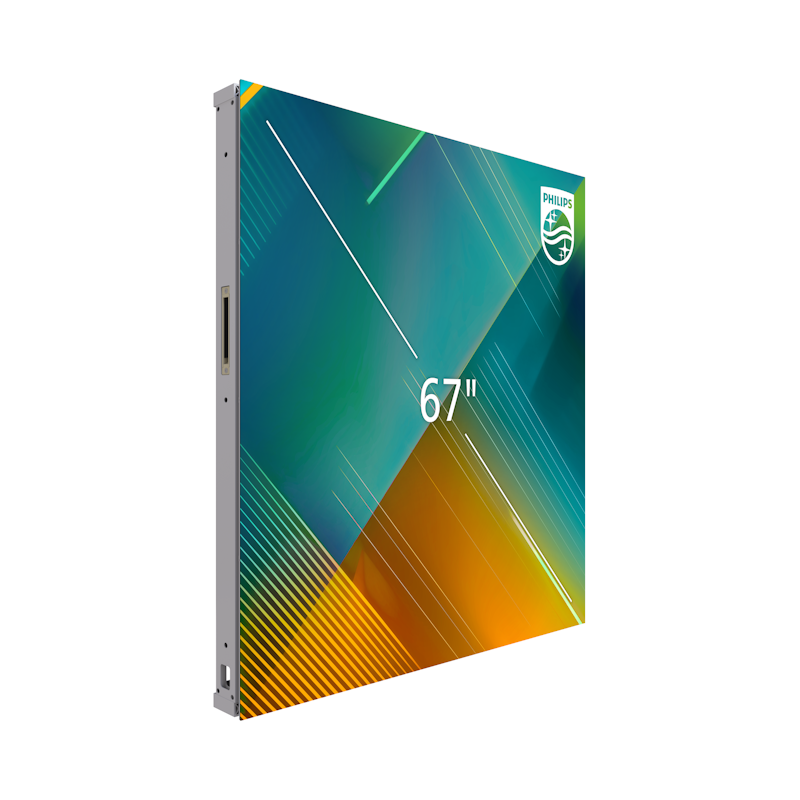

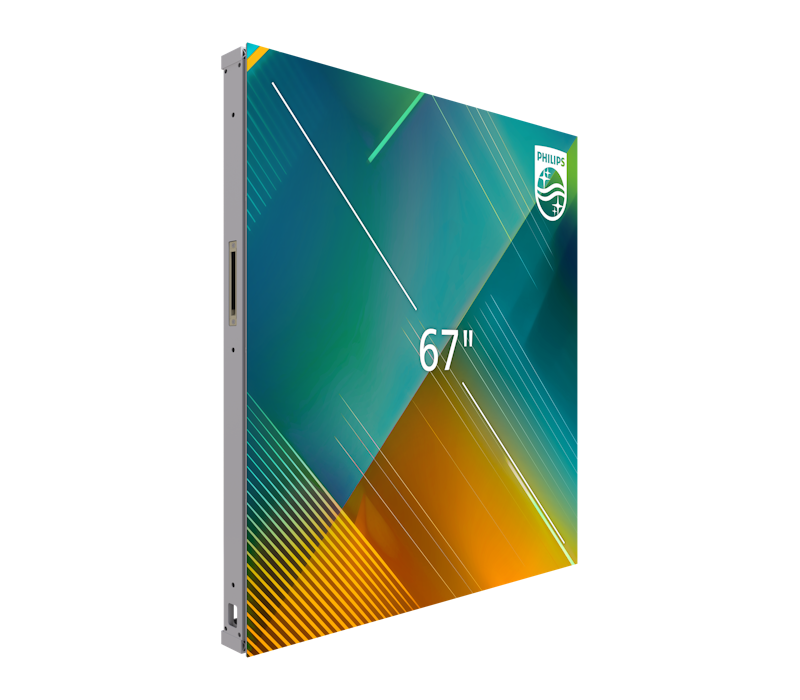

Size: 67”

67” 57” 47”

Get a quote

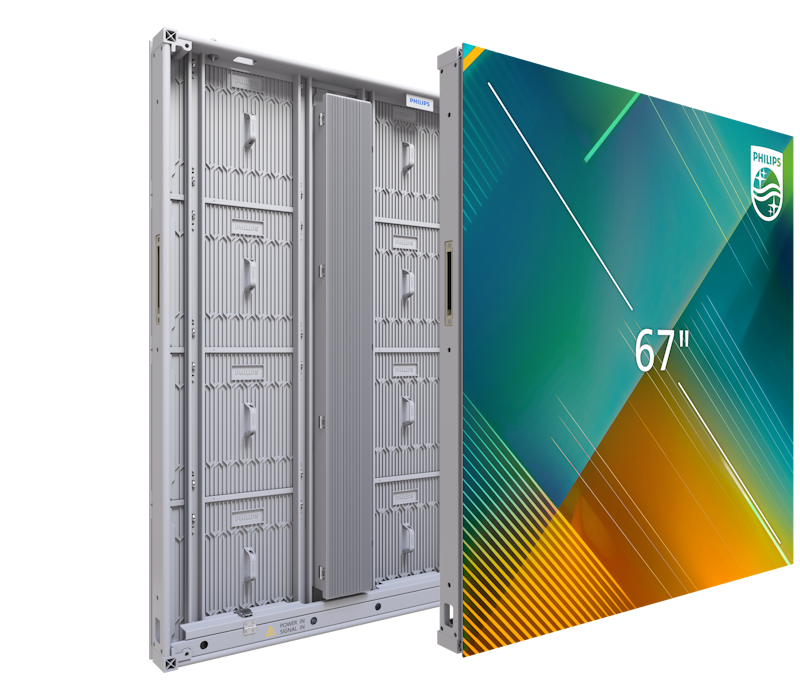

Cabinet

Cabinet Size (W x H x D in mm)	1200 x 1200
Cabinet size (inches)	67"
Cabinet pixels (Dot)	20736
Receiving card brand	Novastar
Power connector	Seetronic
Cabinet resolution (W x H)	144 x 144 pixels
Cabinet area (m2)	1.44
Weight (kg)	46.5±1
Data connector	Seetronic
Cabinet construction	Profile aluminium

Power

Consumption (Typical)	252 W
Input voltage	AC100~240 V
BTU/M2 (AC)	1706.07
Power consumption/M2 (W) (AC)	500
Power consumption/M2 (W) (BC)	625
BTU/M2 (BC)	2132.59
Max Power consumption (W)	900 W

Miscellaneous Toggle

Certification	TUV, ITS,
Regulatory approvals	RoHS, EMC, FCC SDOC, Part 15, Class A, ETL, LVD,
Warranty	36 months

Operating conditions Toggle

Working environment (indoor/outdoor)	outdoor
Temperature range (storage)	-40~60 °C
IP Rating (front/rear)	IP66/65
Temperature range (operation)	-30~50 °C
Humidity range (storage) [RH]	10~70%
Humidity range (operation)[RH]	10~90%

Picture/Display Toggle

Bit-depth (bit)	≥14
Calibration (brightness/colour)	Colour and Brightness
Colour temperature adjust range	3000~10000 K
Refresh rate (Hz)	7680
Scan rate (lines)	3
Contrast ratio	10000:1
Frame frequency (Hz)	50 - 60
Viewing angle (°) H/V	160/120
Brightness (nits)	10000 nit

Module

LED type	SMD
LED Lifetime (hrs, half brightness)	100 000
Module size (W x H in mm)	400 x 300
Pixel constitution	1R1G1B
Pixel pitch (mm)	8.33
Weight (kg)	1.35~1.45 kg
LED part number	SMD2727
Module resolution (WxH pixels)	48 x 36
