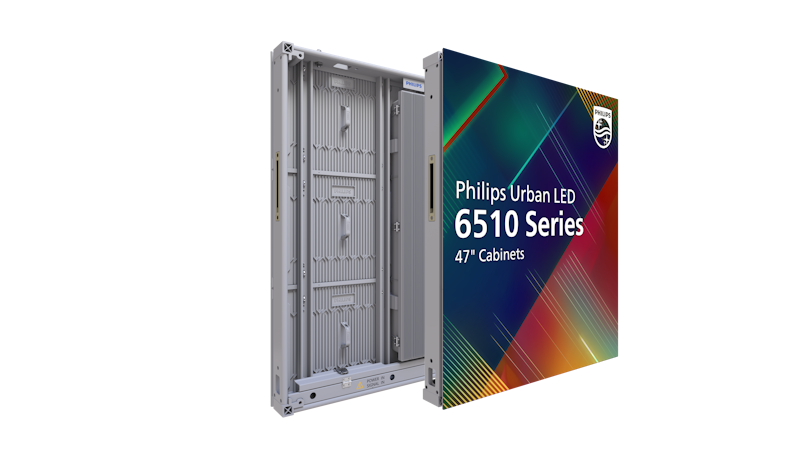

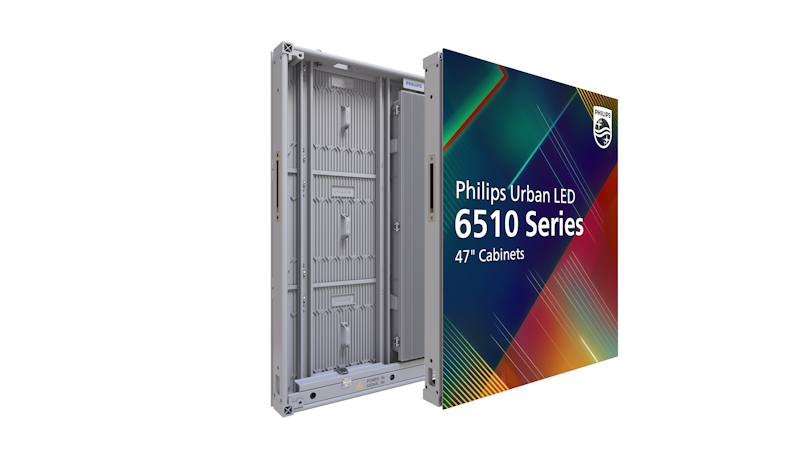

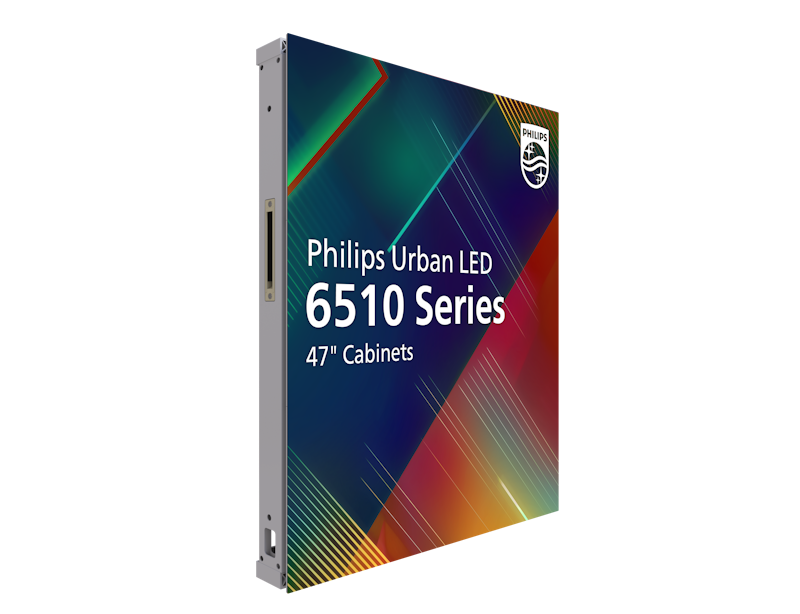

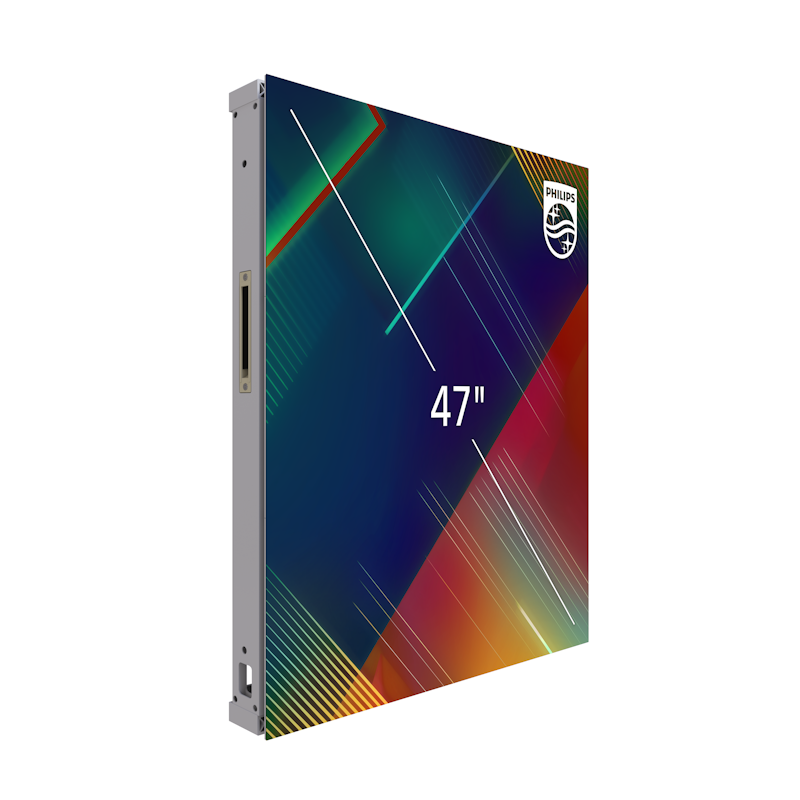

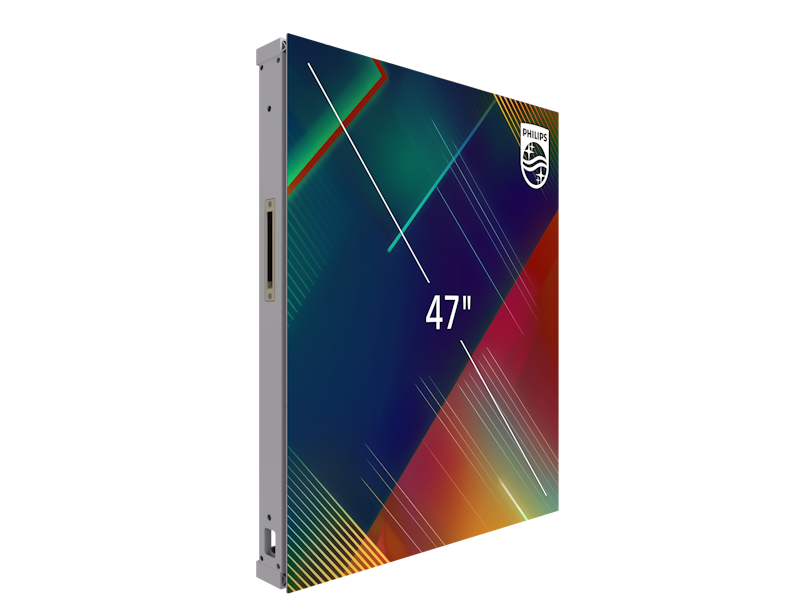

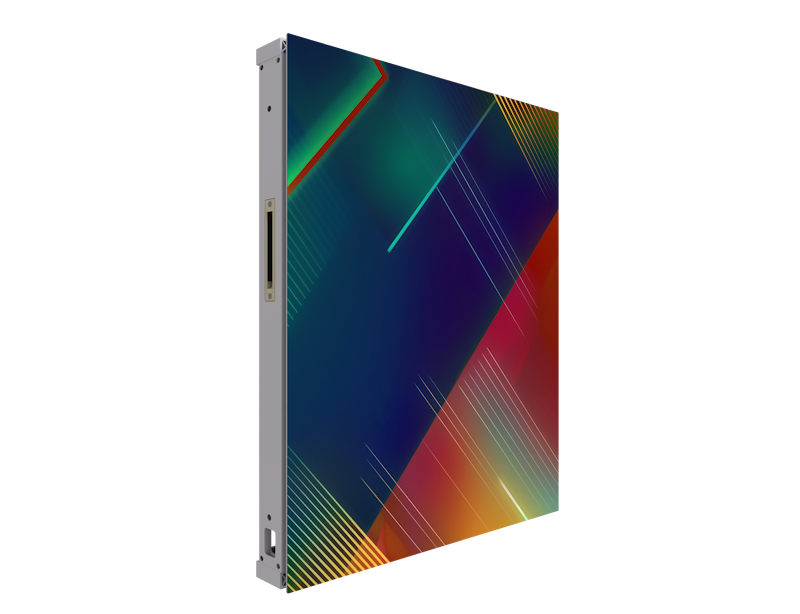

47HUL6510DP/00

6000 Series / L-Line

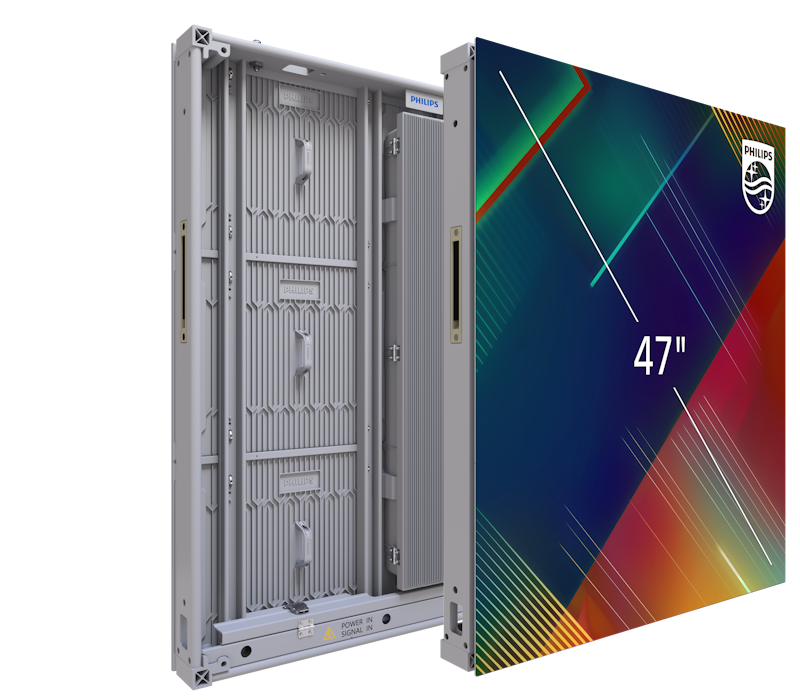

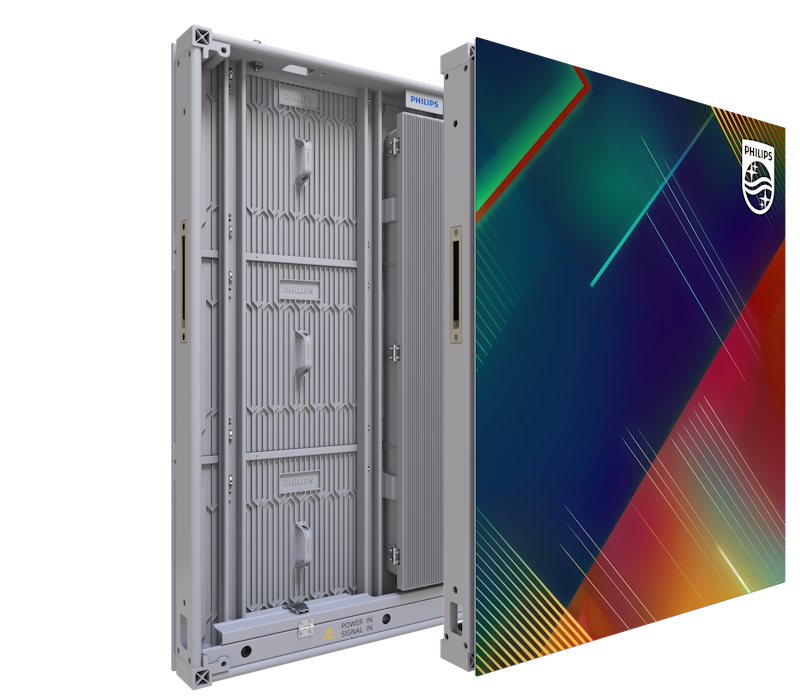

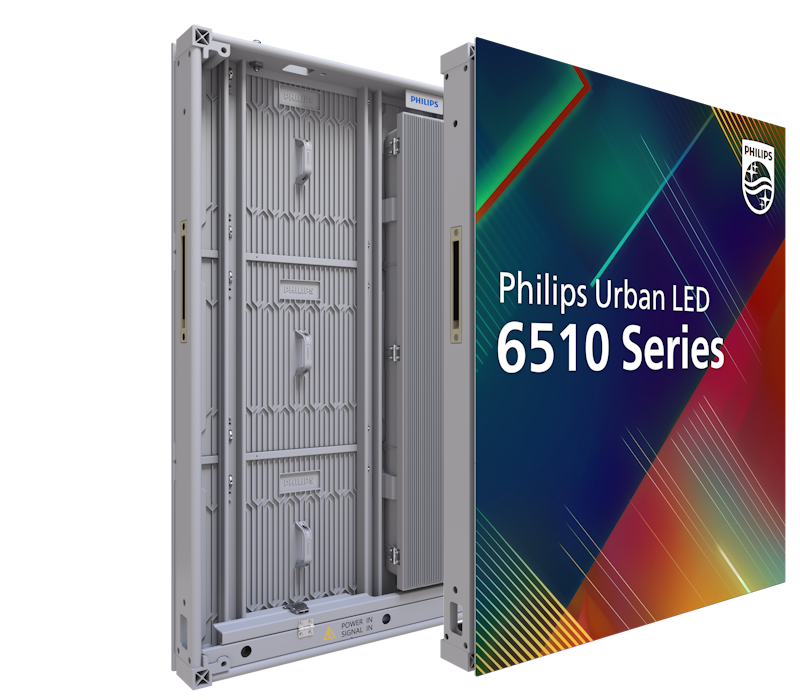

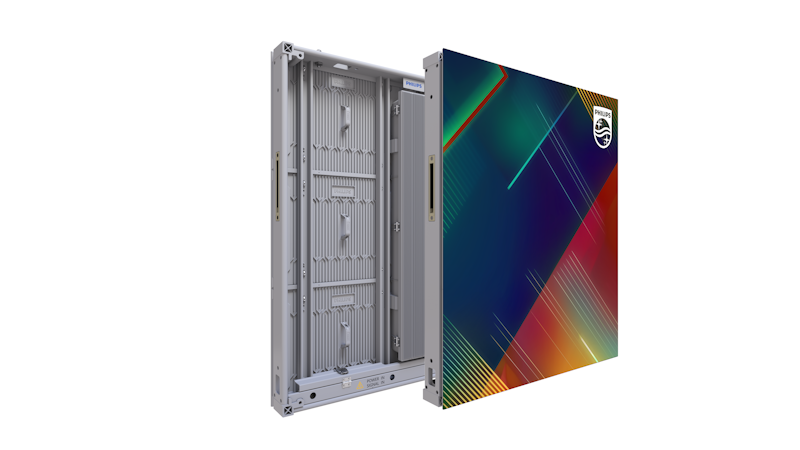

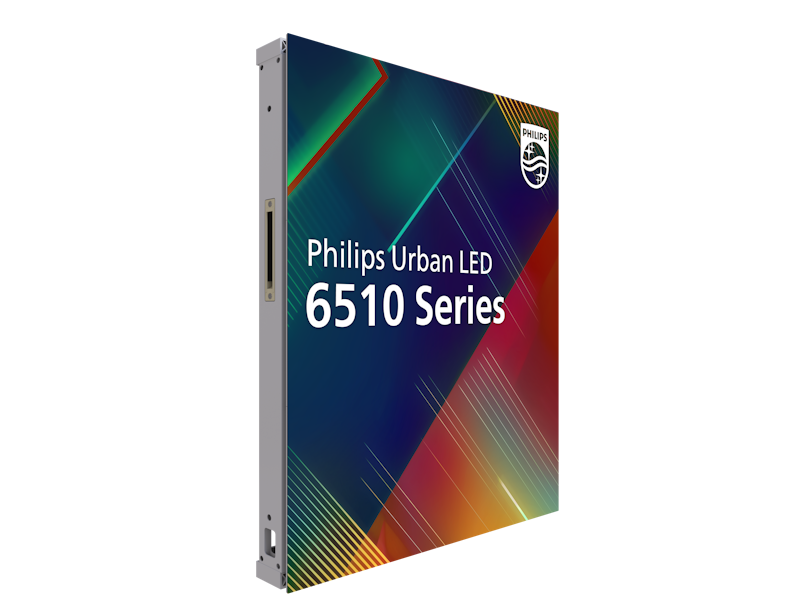

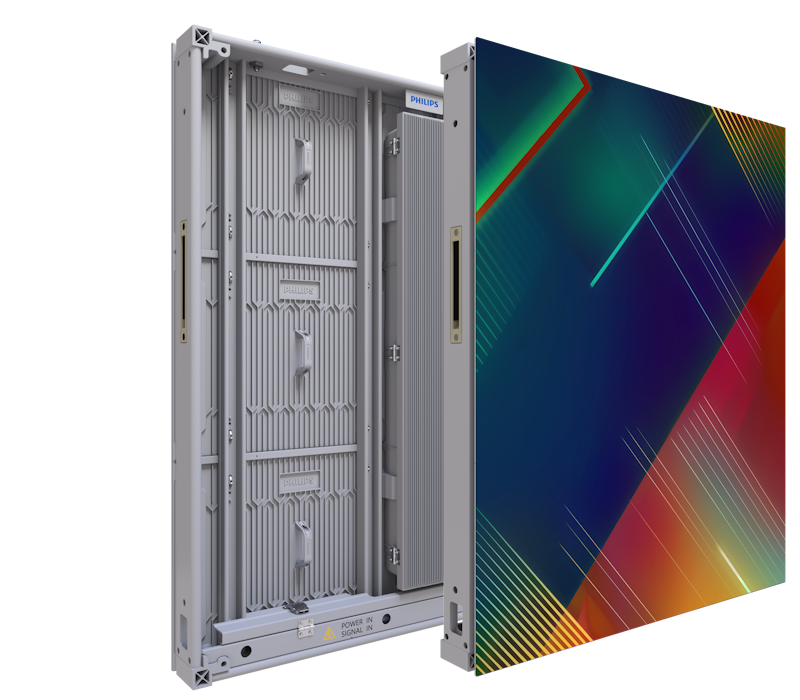

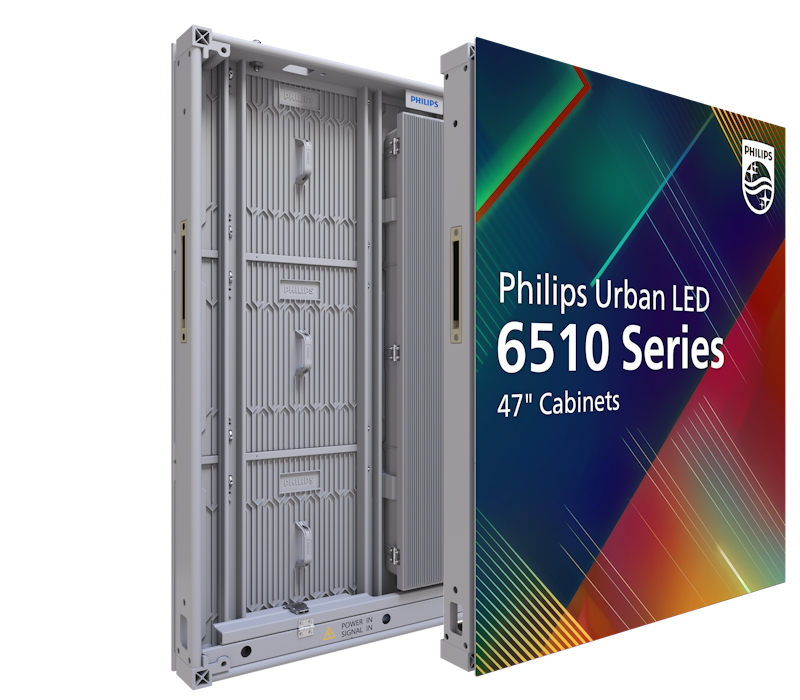

The Urban LED 6000 is energy efficient and delivers ultra-high brightness with exceptional visual clarity. Ultimate visuals for billboards, arenas and airports. With front and rear maintenance, it accommodates different cabinet sizes.

Size: 47”

67” 57” 47”

Get a quote

Cabinet

Cabinet Size (W x H x D in mm)	800 x 900
Cabinet size (inches)	47"
Receiving card brand	Novastar
Cabinet pixels (Dot)	7200
Cabinet resolution (W x H)	80 x 90 pixels
Power connector	Seetronic
Weight (kg)	22.5±1
Cabinet area (m2)	0.72
Cabinet construction	Profile aluminium
Data connector	Seetronic

Power

Consumption (Typical)	126 W
BTU/M2 (AC)	1706.07
Input voltage	AC100~240 V
Power consumption/M2 (W) (BC)	625
Power consumption/M2 (W) (AC)	500
BTU/M2 (BC)	2132.59
Max Power consumption (W)	450 W

Miscellaneous Toggle

Certification	TUV, ITS,
Regulatory approvals	RoHS, EMC, FCC SDOC, Part 15, Class A, ETL, LVD,
Warranty	36 months

Operating conditions Toggle

Temperature range (storage)	-40~60 °C
Working environment (indoor/outdoor)	outdoor
IP Rating (front/rear)	IP66/65
Temperature range (operation)	-30~50 °C
Humidity range (operation)[RH]	10~90%
Humidity range (storage) [RH]	10~70%

Picture/Display Toggle

Bit-depth (bit)	≥14
Colour temperature adjust range	3000~10000 K
Calibration (brightness/colour)	Colour and Brightness
Scan rate (lines)	3
Refresh rate (Hz)	7680
Contrast ratio	10000:1
Frame frequency (Hz)	50 - 60
Viewing angle (°) H/V	160/70
Brightness (nits)	10000 nit

Module

LED type	SMD
LED Lifetime (hrs, half brightness)	100 000
Module size (W x H in mm)	400 x 300
Pixel constitution	1R1G1B
Pixel pitch (mm)	10
Weight (kg)	1.35~1.45 kg
LED part number	SMD2727
Module resolution (WxH pixels)	40 x 30
