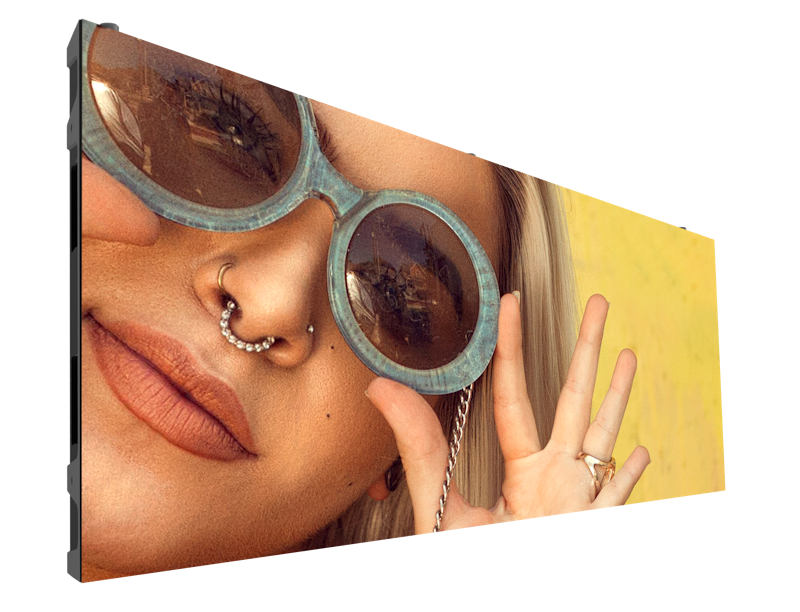

41BDL7531L/00

7000 Series / L-Line

No limits. No boundaries. The Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Size: 41”

41” 31” 22”

Get a quote

Convenience Toggle

Signal control loop through	RJ45
Power loop through	For 230 V environments: 8 cabinets or less, for 110 V environments: 4 cabinets or less, 10 A max
Ease of installation	Guide pins, Light weight,

Accessories Toggle

LAN cable (RJ45, CAT-5)	2 pcs
Power cable	2 pcs
QSG	1 pcs

Cabinet

Receiving card spec.	A5S Plus
Side angle (degree)	45
Receiving card quantity	1 pcs
Receiving card brand	NovaStar
Cabinet pixels (Dot)	25,600
Cabinet diagonal (inch)	40.6"
Power connector	3 core socket
Cabinet resolution (W x H)	320 x 80
Cabinet size (mm)	1000 x 250 x 40
Weight (kg)	6.12
Cabinet area (m2)	0.25
Data connector	RJ45
Cabinet construction	Die-Casting Aluminium

Power

Typical power cons. (W)	<48.1
Max. power cons. AC (W)	<144.1
Input voltage	AC100~240 V
Black screen power cons. (W)	<11
Max. power cons. BC (W)	<193.1

Operating conditions Toggle

Temperature range (storage)	-20~50 °C
Humidity range (storage) [RH]	10~85%
Temperature range (operation)	-20~45 °C
Humidity range (operation)[RH]	10~80%

Miscellaneous Toggle

Conformal coating	hub board, backside LED module
Fire retardancy certification	BS 476 Part7:1997, UL94,
Regulatory approvals	EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS, FCC SDOC, Part 15, Class A, EAC,
Warranty	2 years

Picture/Display Toggle

Colour temperature adjust range	4000~9500 K
Calibration (brightness/colour)	Supported
Aspect ratio	4:1
Viewing angle (horizontal)	155 degree
Refresh rate (Hz)	2100~3900
Picture enhancement	Wide colour gamut display
Frame frequency (Hz)	50 & 60
Brightness uniformity	>=97%
Usage	Indoor
Brightness after calibration	2750 nits
Placement	Landscape
Colour temperature default	6500±500 K
Viewing angle (vertical)	150 degree
Contrast ratio (typical)	10000:1
Brightness before calibration	3500 nits

Module

LED type	SMD 1921 Copper wire
Module size (W x H in mm)	249.9*249.9
LED lifetime(Hrs)	100,000 at half brightness
Pixel pitch (mm)	3.1
Pixel constitution	1R1G1B
Module resolution (WxH pixels)	80x80

Packaging Data Toggle

Dimension of packaging (mm)	1270x421x224
Gross weight (KG)	11.28
