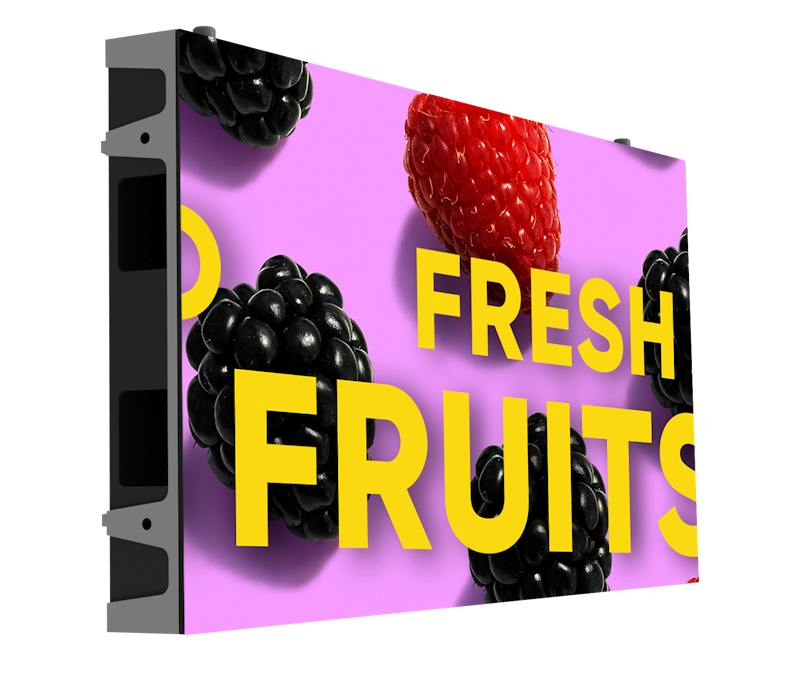

22BDL7439L/00

7000 Series / L-Line

No limits. No boundaries. The Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Size: 22”

41” 31” 22”

Get a quote

Convenience Toggle

Signal control loop through	RJ45
Power loop through	For 230 V environments: 8 cabinets or less, for 110 V environments: 4 cabinets or less, 10 A max
Ease of installation	Guide pins, Light weight,

Accessories Toggle

Power cable	1 pcs
LAN cable (RJ45, CAT-5)	1 pcs
QSG	1 pcs

Cabinet

Side angle (degree)	90
Receiving card spec.	A5S Plus
Receiving card brand	NovaStar
Cabinet pixels (Dot)	8,192
Power connector	3 core socket
Cabinet resolution (W x H)	128 x 64
Cabinet size (mm)	500 x 250 x 40
Receiving card quantity	1 pcs
Weight (kg)	3.38 kg
Cabinet area (m2)	0.125
Cabinet construction	Die-Casting Aluminium
Data connector	RJ45
Cabinet diagonal (inch)	22"

Power

Typical power cons. (W)	<24.6
Black screen power cons. (W)	<9
Max. power cons. BC (W)	<100.3
Max. power cons. AC (W)	<73.8
Input voltage	AC100~240 V

Operating conditions Toggle

Humidity range (operation)[RH]	10~80%
Temperature range (storage)	-20~50 °C
Temperature range (operation)	-20~45 °C
Humidity range (storage) [RH]	10~85%

Miscellaneous Toggle

Regulatory approvals	EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS, FCC SDOC, Part 15, Class A, EAC,
Conformal coating	hub board, backside LED module
Fire retardancy certification	BS 476 Part7:1997, UL94,
Warranty	2 years

Picture/Display Toggle

Viewing angle (horizontal)	140 degree
Aspect ratio	4:1
Brightness uniformity	>=97%
Frame frequency (Hz)	50 & 60
Picture enhancement	Wide colour gamut display
Refresh rate (Hz)	2100~3900
Colour temperature adjust range	4000~9500 K
Calibration (brightness/colour)	Supported
Colour temperature default	6500±500 K
Contrast ratio (typical)	11000:1
Usage	Indoor
Brightness after calibration	2650 nits
Placement	Landscape
Brightness before calibration	3500 nits
Viewing angle (vertical)	140 degree

Module

LED type	SMD 1921 Copper wire
Pixel constitution	1R1G1B
Pixel pitch (mm)	3.9
LED lifetime(Hrs)	100,000 at half brightness
Module size (W x H in mm)	249.9*249.9
Module resolution (WxH pixels)	64 x 64

Packaging Data Toggle

Dimension of packaging (mm)	650x421x224
Gross weight (KG)	7.39
