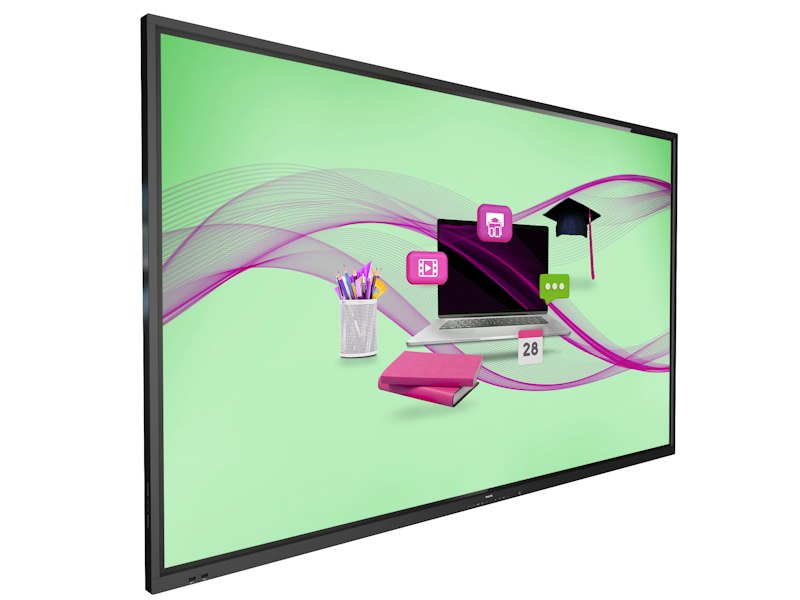

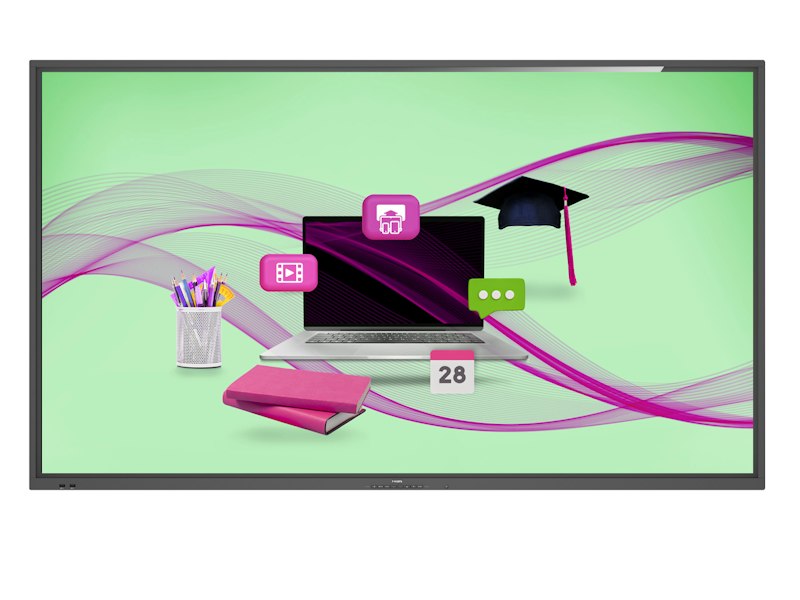

86BDL4052E/02

4000 Series / E-Line

Inspire collaboration. Maximise engagement. This top-spec Philips E-Line touch display is powered by Android and features enhanced educational software and programs compatibility, 20 touchpoints and a toughened anti-glare glass.

Size: 86”

86” 75” 65”

Get a quote

Operating conditions Toggle

Temperature range (storage)	-20 ~ 60 °C
MTBF	50,000 hour
Temperature range (operation)	0 ~ 40 °C
Humidity range (operation)[RH]	20–80%
Humidity range (storage) [RH]	5–95%
Altitude	0 ~ 3000 m

Picture/Display Toggle

Viewing angle (vertical)	178 degree
Contrast ratio (typical)	4000:1
Diagonal screen size (inch)	85.6 inch
Pixel pitch	0.4935 x 0.4935 mm
Panel resolution	3840 x 2160
Viewing angle (horizontal)	178 degree
Dynamic contrast ratio	500,000:1
Aspect ratio	16:9
Brightness (before glass)	430 cd/m²
Display colours	1.07 billion
Brightness (after glass)	400 cd/m²
OS UI resolution	3840 x 2160 @ 60 Hz
Picture enhancement	3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement,
Optimum resolution	3840 x 2160 @ 60 Hz
Diagonal screen size (metric)	217.4 cm
Panel technology	VA
Response time (typical)	8 ms
Operating system	Android 11

Miscellaneous Toggle

Regulatory approvals	CE, FCC, Class A, RoHS, CB, EAC, EMF, ETL,
Warranty	5-year warranty
On-Screen Display Languages	Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese,

Weight

Product with packaging (lb)	199.74 lb
Product without stand (kg)	74.49 kg
Product without stand (lb)	164.22 lb
Product with packaging (kg)	90.6 kg

Supported Display Resolution Toggle

Video formats	480p, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, 2160p, 50, 60 Hz, 480i, 60 Hz, 720p, 50, 60 Hz,
Computer formats	640 x 350, 70 Hz, 640 x 480, 60, 67, 72, 75 Hz, 800 x 600, 56, 60, 72, 75 Hz, 832 x 624, 75 Hz, 848 x 480, 60 Hz, 960 x 720, 75 Hz, 1024 x 768, 60, 70 Hz, 1152 x 864, 60, 70, 75 Hz, 1152 x 900, 66 Hz, 1280 x 720, 60, 70 Hz, 1280 x 768, 60 Hz, 75 Hz, 1280 x 800, 60, 75 Hz, 1280 x 960, 60 Hz, 1280 x 1024, 60, 67, 75 Hz, 1360 x 768, 60 Hz, 1366 x 768, 60 Hz, 1400 x 1050, 60, 75 Hz, 1600 x 900, 60 Hz, 1600 x 1200, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, 1920 x 1200, 60 Hz, 3840 x 2160, 24, 25, 30, 60 Hz, 1440 x 900, 60 Hz, 720 x 400, 70 Hz,

Video formats

480p, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, 2160p, 50, 60 Hz, 480i, 60 Hz, 720p, 50, 60 Hz,

Computer formats

640 x 350, 70 Hz, 640 x 480, 60, 67, 72, 75 Hz, 800 x 600, 56, 60, 72, 75 Hz, 832 x 624, 75 Hz, 848 x 480, 60 Hz, 960 x 720, 75 Hz, 1024 x 768, 60, 70 Hz, 1152 x 864, 60, 70, 75 Hz, 1152 x 900, 66 Hz, 1280 x 720, 60, 70 Hz, 1280 x 768, 60 Hz, 75 Hz, 1280 x 800, 60, 75 Hz, 1280 x 960, 60 Hz, 1280 x 1024, 60, 67, 75 Hz, 1360 x 768, 60 Hz, 1366 x 768, 60 Hz, 1400 x 1050, 60, 75 Hz, 1600 x 900, 60 Hz, 1600 x 1200, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, 1920 x 1200, 60 Hz, 3840 x 2160, 24, 25, 30, 60 Hz, 1440 x 900, 60 Hz, 720 x 400, 70 Hz,

Interactivity Toggle

Multi-touch technology	0-gap Infrared touch
Touchpoints	20 simultaneous touch points
Plug and play	HID compliant
Protection glass	Anti-Glare, Blue light filter, Tempered safety glass 7 MOHS,

Connectivity Toggle

Other connections	OPS, micro SD, USB-B,
Video output	HDMI 2.0
Audio output	3.5 mm Mini Jack
Video input	HDMI 2.0, USB 2.0, DVI-D, USB 3.0, USB-C,
Audio input	3.5 mm mini jack
External control	IR 3.5 mm jack, RJ45, RS232C 2.5 mm jack,

Convenience Toggle

Placement	Landscape
Signal loop through	RS232, IR Loop through,

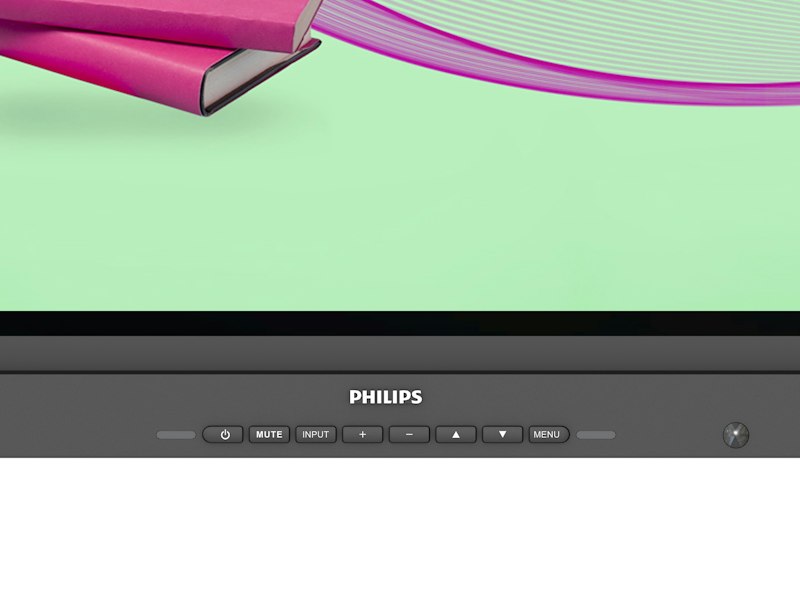

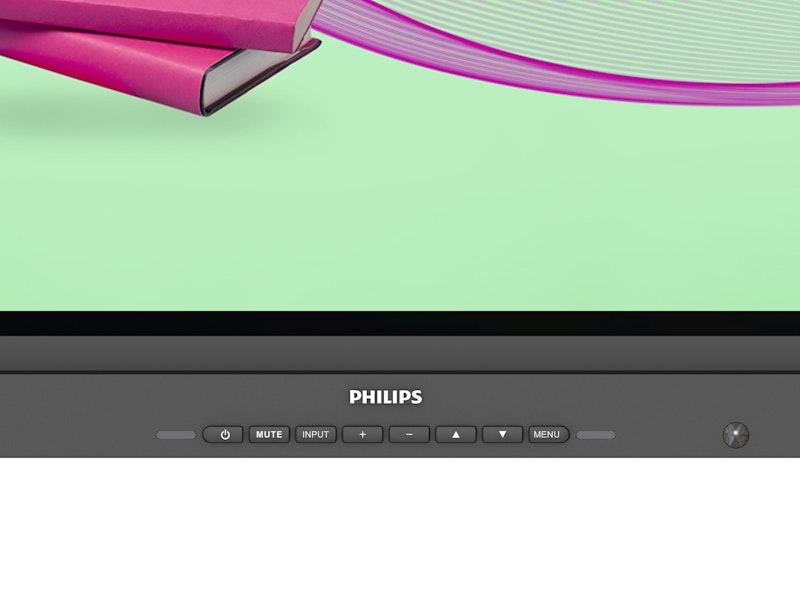

Keyboard control	Lockable
Remote control signal	Lockable
Network controllable	RS232, RJ45,
Screen-saving functions	Pixel Shift, Low Brightness
Ease of installation	AC Out, Smart Insert,
Other convenience	Carrying handles

Accessories Toggle

Included Accessories	Cleaning cloth, HDMI Cable, Remote control and AAA batteries, USB A to B cable, AC Power Cord, AC Switch Cover, Cable clip, DVI-I Cable, IR sensor cable, Philips logo, Quick start guide, RS232 cable, RS232 daisy chain cable, Touch Pen, USB cover and screws,
Optional accessories	Interact dongles

Internal Player Toggle

Storage	32 GB eMMc
Memory	8 GB
CPU	MTK 9970A
Wi-Fi	2G/5G/6G 2T2R

Dimensions Toggle

Smart Insert mount	100 x 100 mm, 6xM4L6
Set Height (inch)	45.11 inch
Set Depth	101.3 mm/79.0 mm mm
Set Width	1960.8 mm
Set Depth (inch)	3.98/3.11 inch
Set Width (inch)	77.19 inch
Wall Mount	600 x 400 mm, M8
Set Height	1145.7 mm
Bezel width	17.8 mm x 31.7 mm
Weight	74.49 kg

Power

Standby power consumption	<0.5 W
Consumption (Typical)	450 W
Energy Label Class	G
Power Saving Features	Smart Power
Mains power	100 - 240 V~, 50 - 60 Hz, 7.5 A
Consumption (Max)	670 W

Sound

Built-in speakers	2 x 15 W

Multimedia Applications Toggle

USB Playback Picture	BMP, JPEG, PNG,
USB Playback Video	H.263, H.264, H.265, MPEG1/2, MPEG4, VP8, VP9,
USB Playback Audio	AAC, HEAAC, MPEG,
