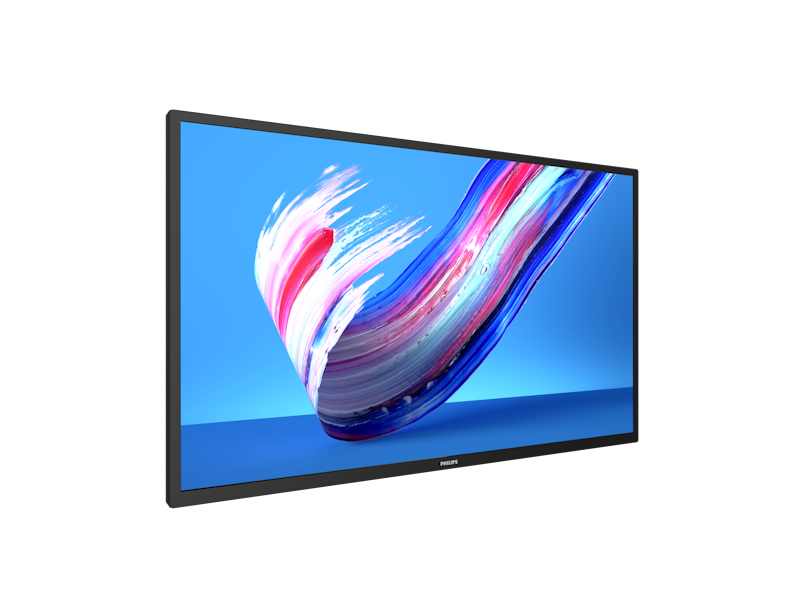

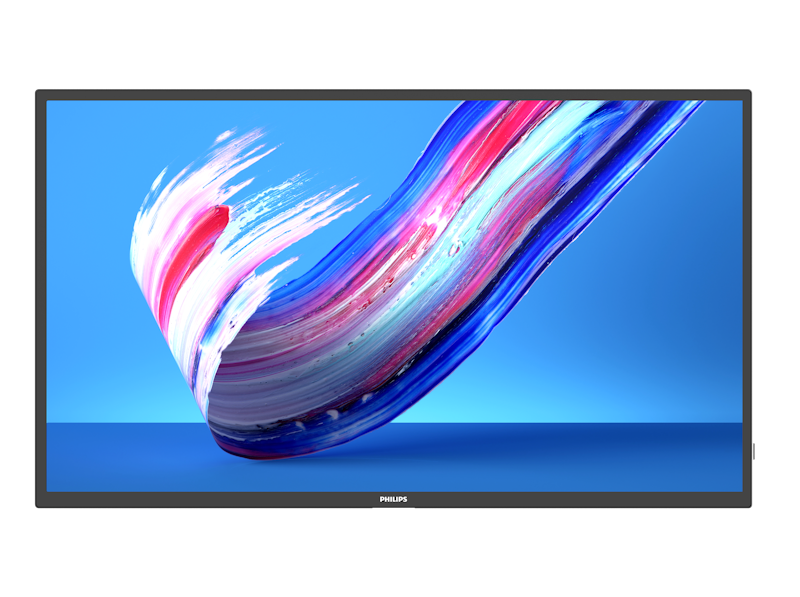

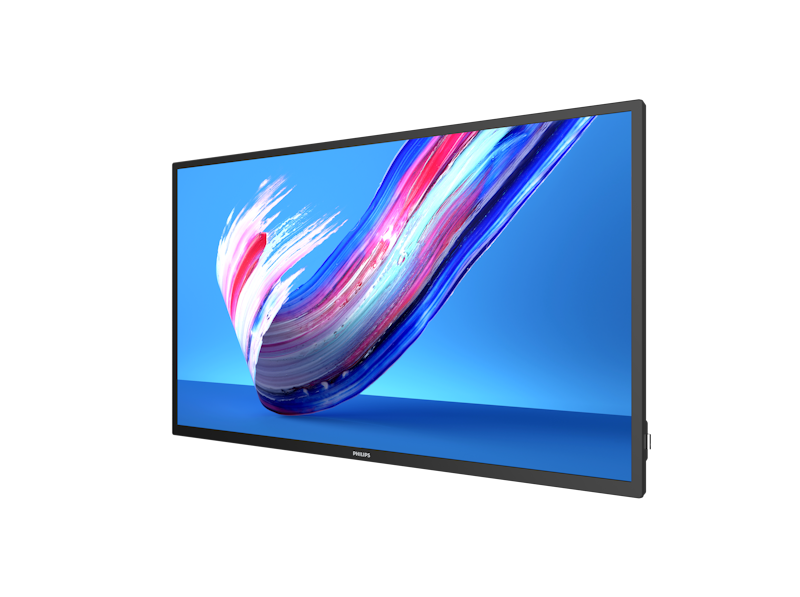

32BDL3650Q/00

3000 Series / Q-Line

Inform and enthral with a Philips Q-Line digital display. This reliable, easy-to-install, Android-powered signage solution is Wave-ready for remote management, putting you in full control, any time, anywhere.

Size: 32”

98” 86” 75” 65” 55” 50” 43” 32”

Get a quote

Connectivity Toggle

Audio output	3.5 mm jack
Video input	HDMI 2.0, USB 2.0, DVI-I, USB 3.0,
External control	RJ45, RS232C 2.5 mm jack, IR 3.5 mm jack,
Audio input	3.5 mm jack
Other connections	micro SD

Convenience Toggle

Remote control signal	Lockable
Placement	Landscape, Portrait,
Tiled Matrix	Up to 3 x 3
Energy-saving functions	Smart Power
Network controllable	RS232, RJ45,
Keyboard control	Lockable, Hidden,
Signal loop through	RS232, IR Loop through,

Accessories Toggle

Included Accessories	IR sensor cable, RS232 daisy-chain cable, Philips logo, AC Power Cord, Quick start guide, Remote control and AAA batteries, RS232 cable, USB cover and screws, Wire Clamper,

Internal Player Toggle

CPU	Quad-Core Cortex A55
GPU	G52 MC1
Memory	16 GB, 3 GB DDR,

Dimensions Toggle

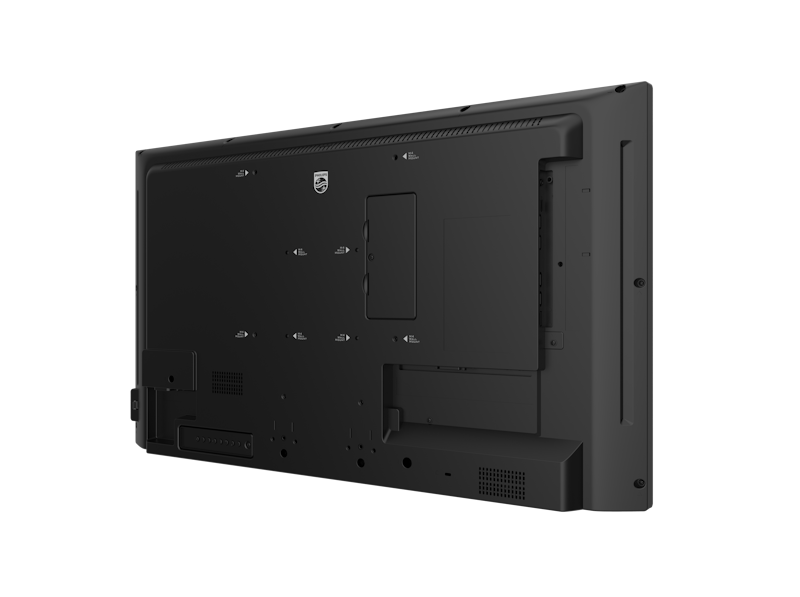

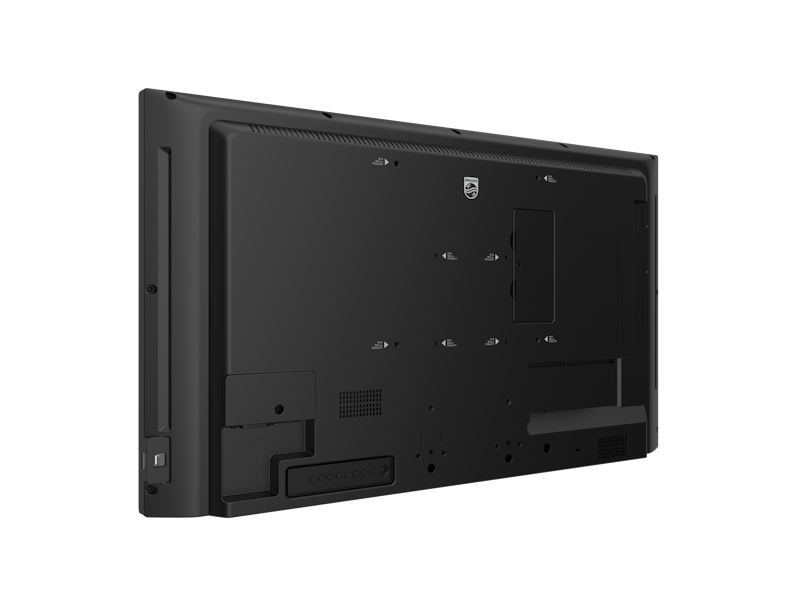

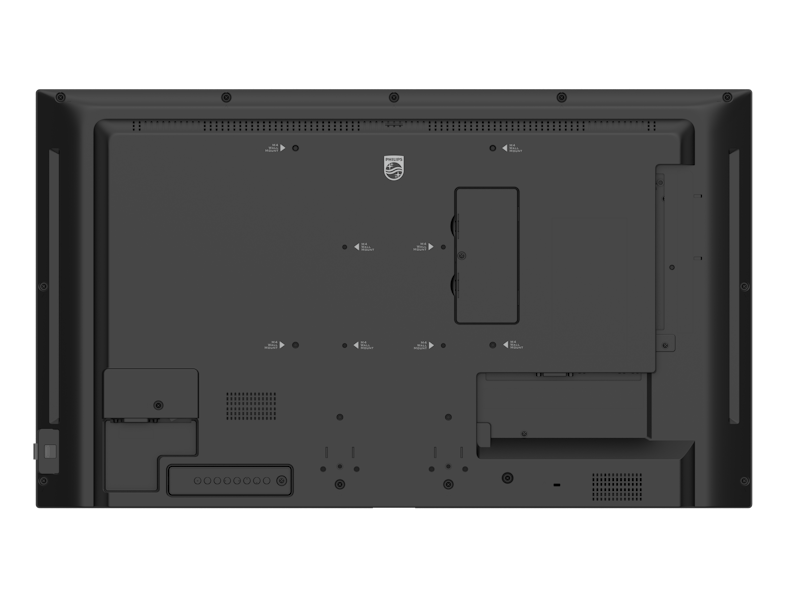

Wall Mount	100 mm x 100 mm, 200 mm x 200 mm, M4
Set Height	425.4 mm
Set Width (inch)	28.6 inch
Set Depth (inch)	2.72 / 2.56 inch
Bezel width	11.9 mm 17.2
Product weight (lb)	11.71 lb
Product weight	5.31 kg
Set Depth	69.1/65.1 mm
Set Width	726.5 mm
Set Height (inch)	16.75 inch

Sound

Built-in speakers	2 x 10 W RMS

Power

Power Saving Features	Smart Power
Mains power	100-240 V~, 50-60 Hz, 1.5 A
Energy Label Class	G
Consumption (Typical)	41 W
Standby power consumption	<0.5 W

Multimedia Applications Toggle

USB Playback Picture	BMP, JPEG, PNG,
USB Playback Video	MPEG, H.264, H.263, H.265, AVI, MP4, VP8,
USB Playback Audio	AAC, HEAAC, MPEG,

Operating conditions Toggle

Temperature range (storage)	-20 ~ 60 °C
Altitude	0 ~ 3000 m
Humidity range (operation)[RH]	20~80% RH
Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	5~95% RH
MTBF	50,000 hour

Miscellaneous Toggle

On-Screen Display Languages	English, French, German, Italian, Polish, Turkish, Russian, Simplified Chinese, Spanish, Traditional Chinese, Arabic, Japanese,
Regulatory approvals	CB, CE, FCC, Class A, VCCI, RoHS, UL,
Warranty	3 year warranty

Picture/Display Toggle

Brightness	350 cd/m²
Diagonal screen size (metric)	80 cm
Panel resolution	1920 x 1080p
Pixel pitch	0.36375 x 0.36375 mm
Optimum resolution	1920 x 1080 @ 60 Hz
Operating system	Android 10
Response time (typical)	8 ms
Panel technology	VA
Viewing angle (horizontal)	178 degree
Dynamic contrast ratio	500,000:1
Picture enhancement	3/2 - 2/2 motion pull down, Dynamic contrast enhancement, Progressive scan,
Display colours	16.7 Million
Aspect ratio	16:9
Viewing angle (vertical)	178 degree
Haze	2%
Diagonal screen size (inch)	31.5 inch
Contrast ratio (typical)	4000:1

Supported Display Resolution Toggle

Video formats	1080p, 50, 60 Hz, 1080i, 50, 60 Hz, 720p, 50,60 Hz,
Computer formats	1920 x 1080, 60 Hz, 1680 x 1050, 60 Hz, 1600 x 1200, 60 Hz, 1440 x 900, 60 Hz, 1280 x 1024, 60 Hz, 1280 x 800, 60 Hz, 1280 x 720, 60 Hz, 1024 x 768, 60, 70, 75 Hz,
