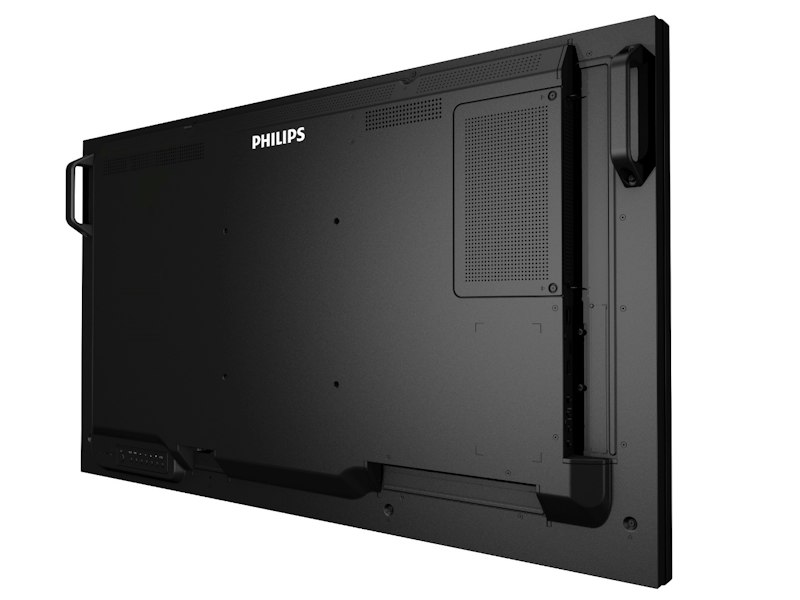

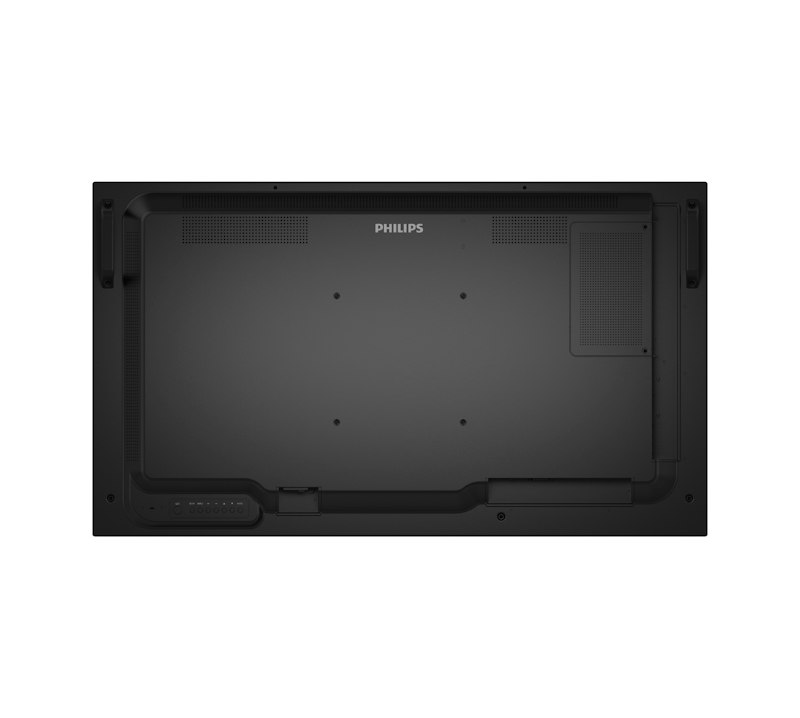

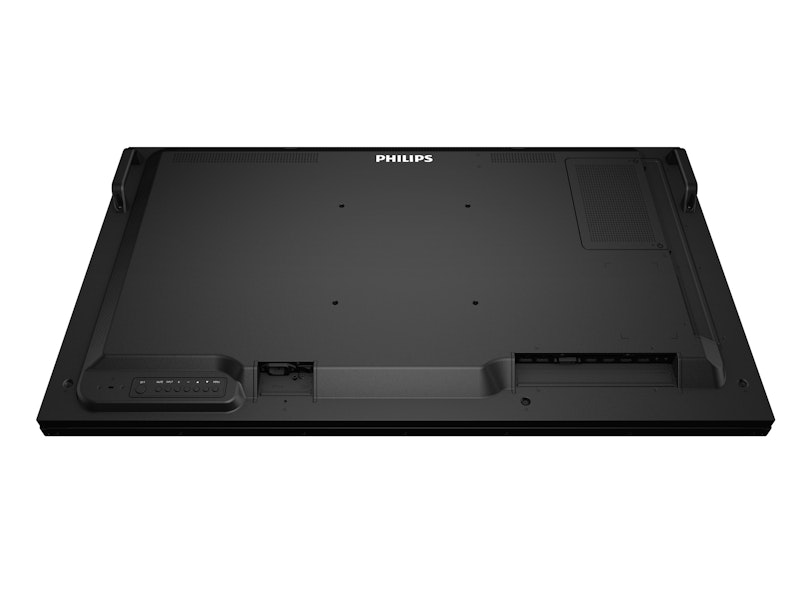

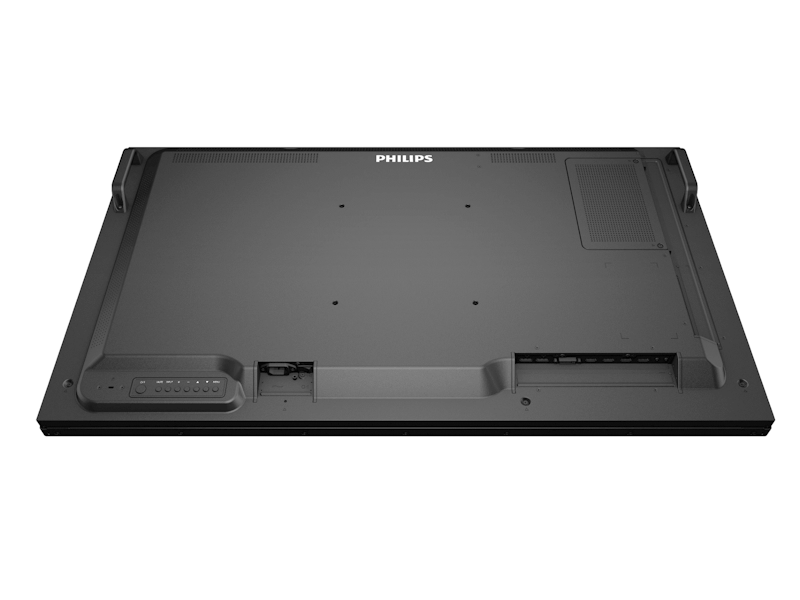

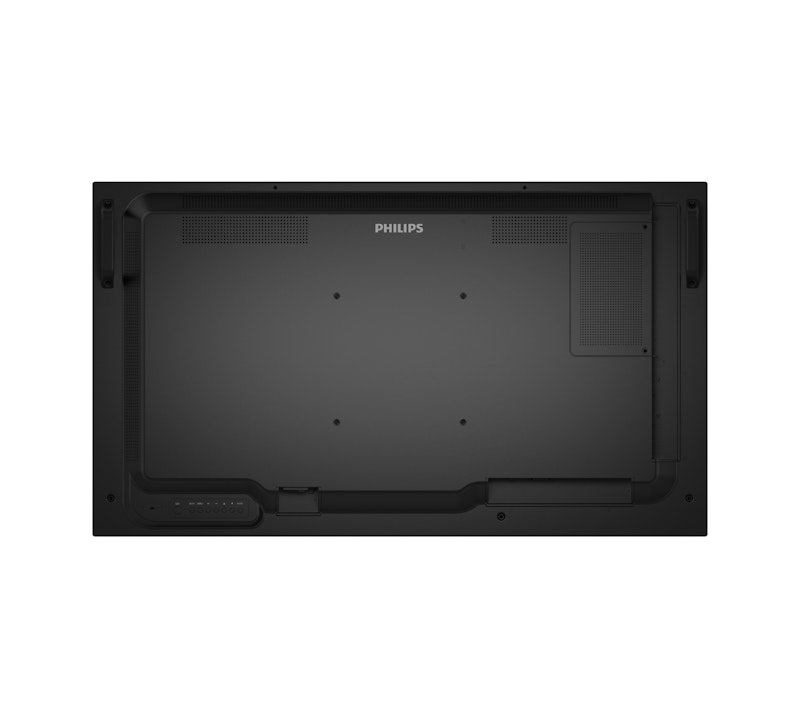

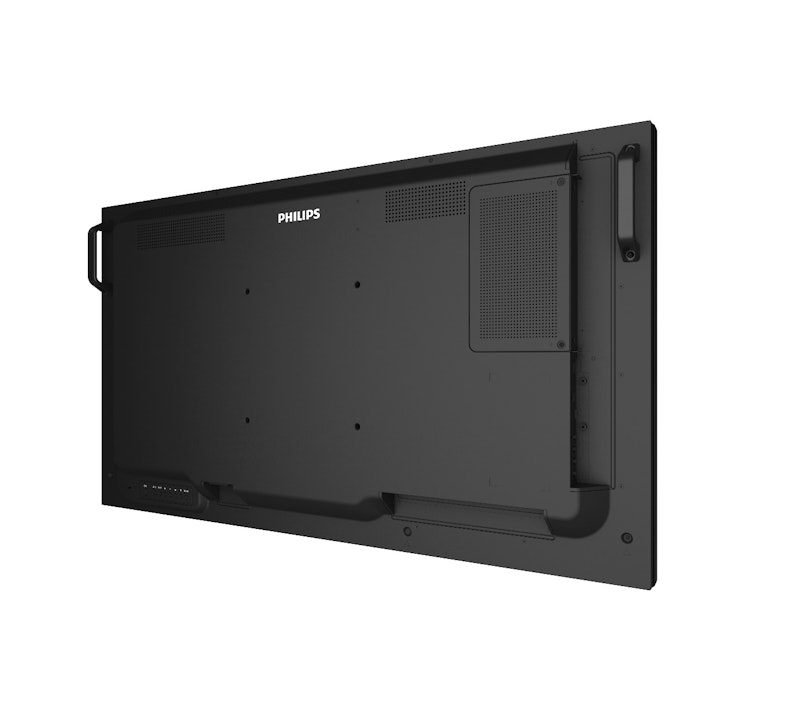

43BDL3117P/00

3000 Series / P-Line

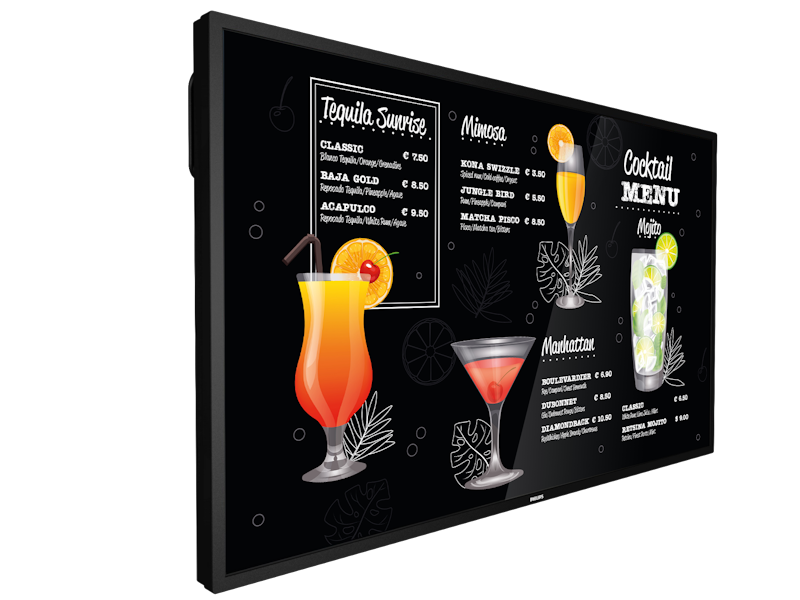

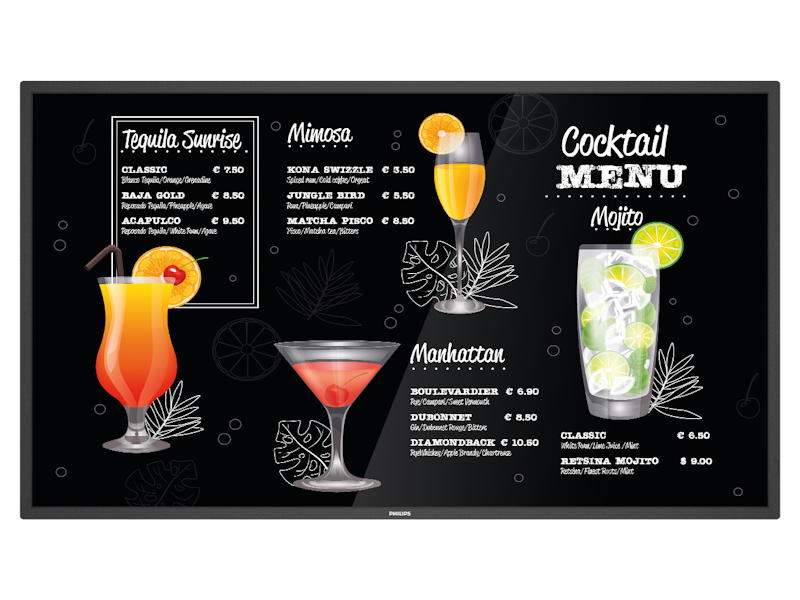

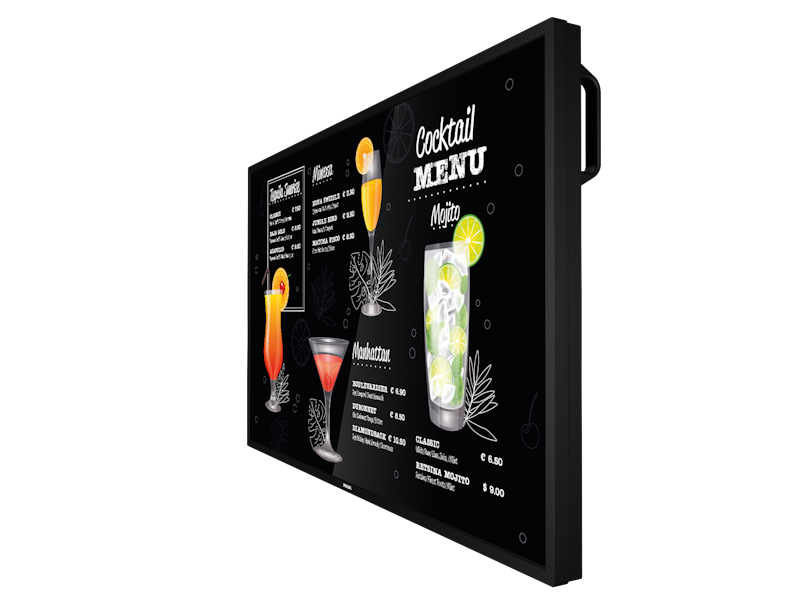

Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high brightness make it perfect for demanding environments such as retail, transportation, and food and drink.

Size: 43”

65” 55” 50” 43”

Get a quote

Connectivity Toggle

Video output	DisplayPort 1.2, HDMI 2.0,
Audio input	3.5 mm jack
External control	IR 3.5 mm jack, RJ45, RS232C 2.5 mm jack, Ambient Light Sensor,
Audio output	3.5 mm jack
Video input	Display Port1.2, DVI-I, USB 2.0, HDMI 2.0,
Other connections	Micro SD, SDM-L, Thermal sensor,

Convenience Toggle

Tiled Matrix	Up to 15 x 15

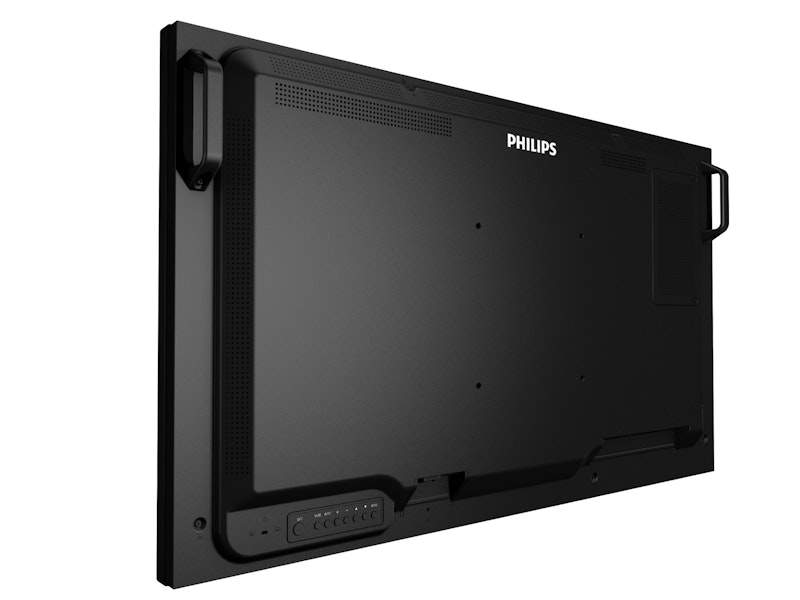

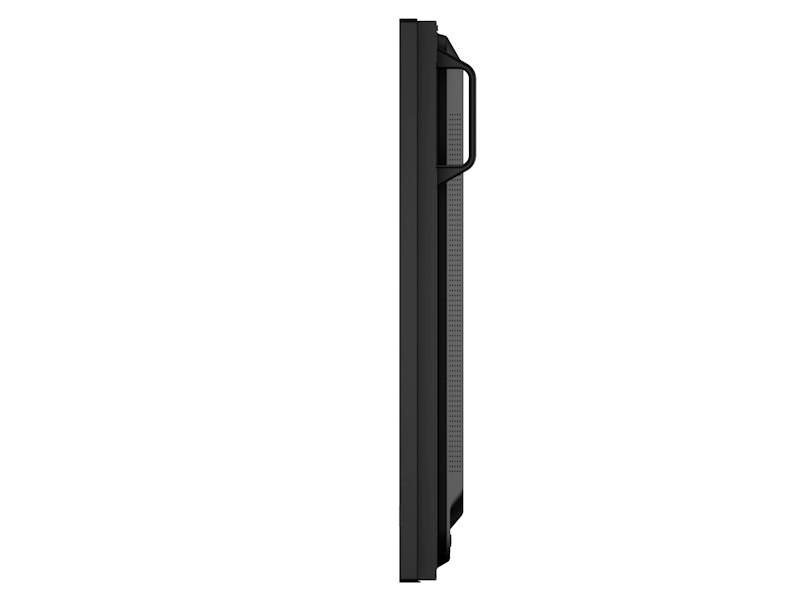

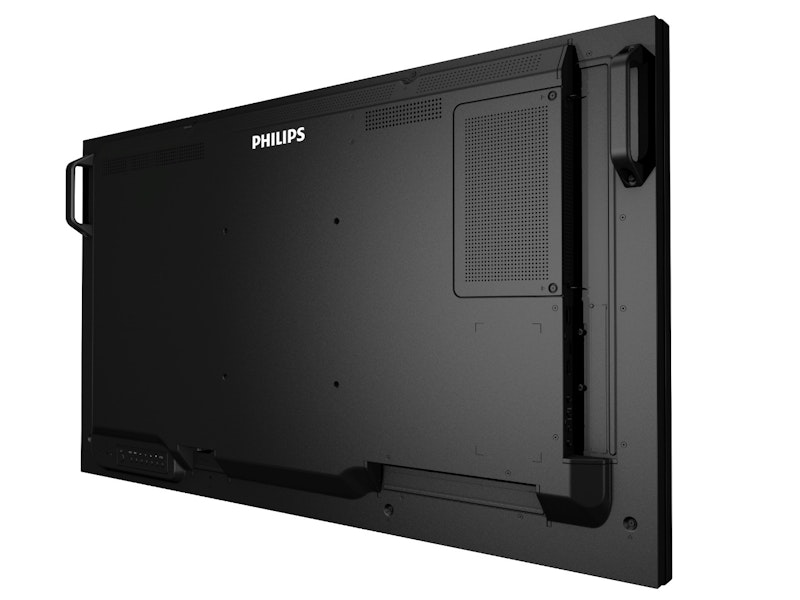

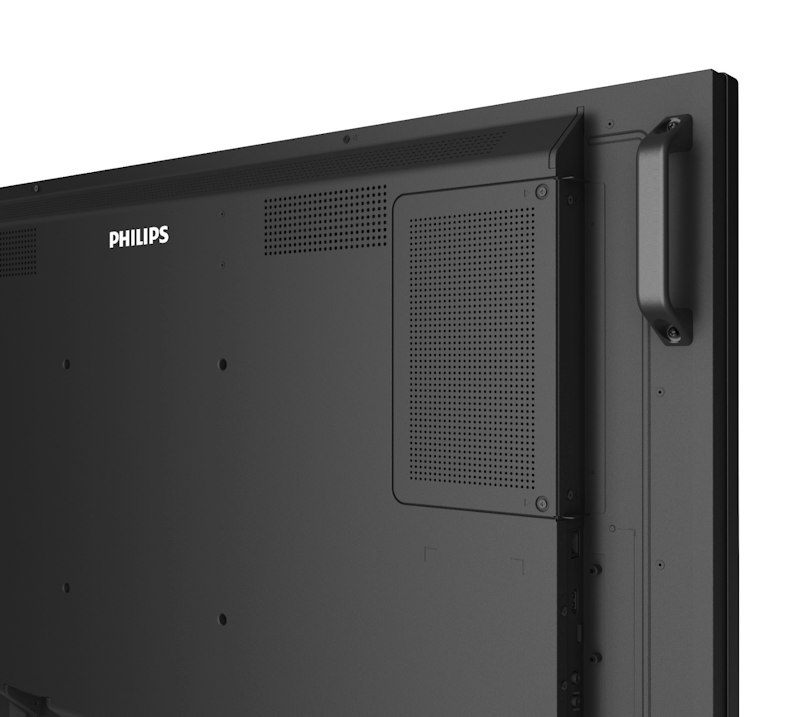

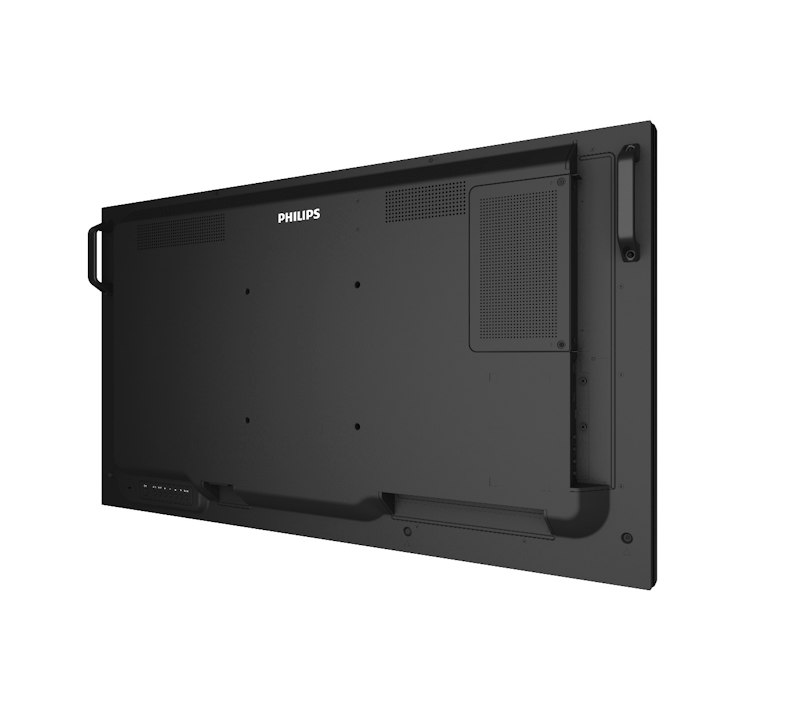

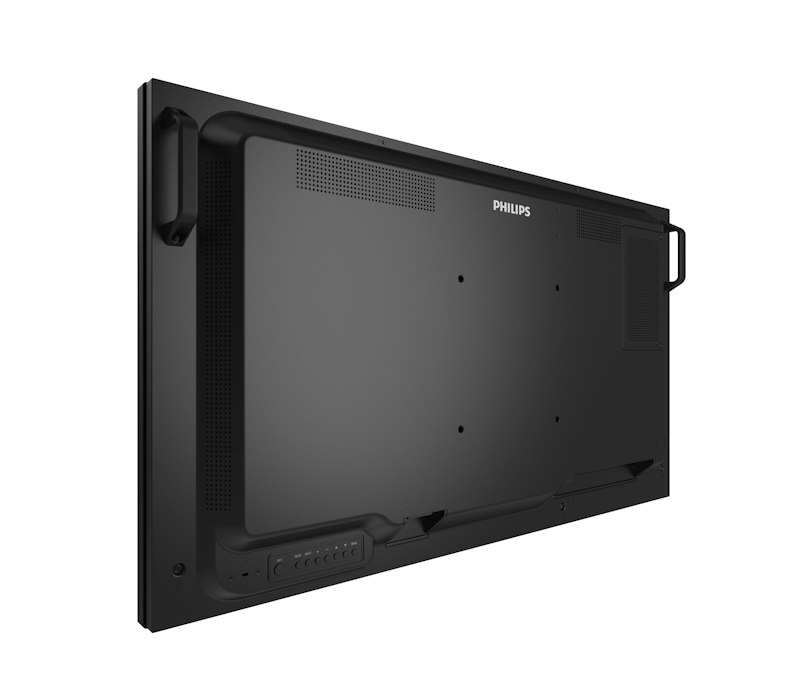

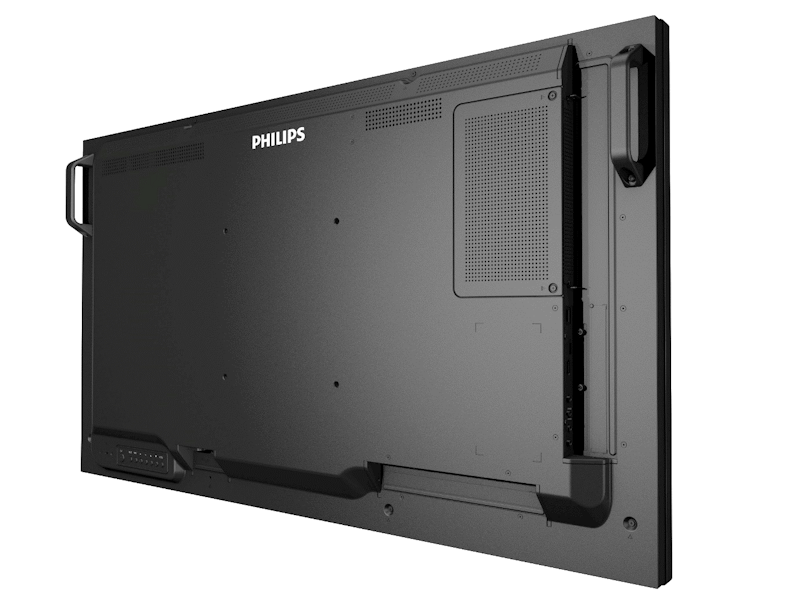

Ease of installation	Carrying Handles
Placement	Landscape, Portrait,
Screen-saving functions	Pixel Shift, Low Bright
Energy-saving functions	Smart Power
Signal loop through	DisplayPort, RS232, HDMI, IR Loop through,

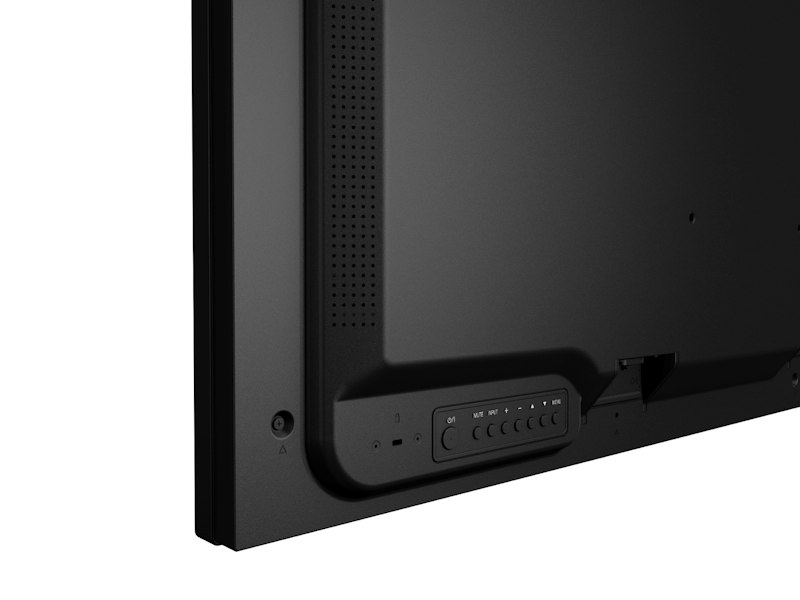

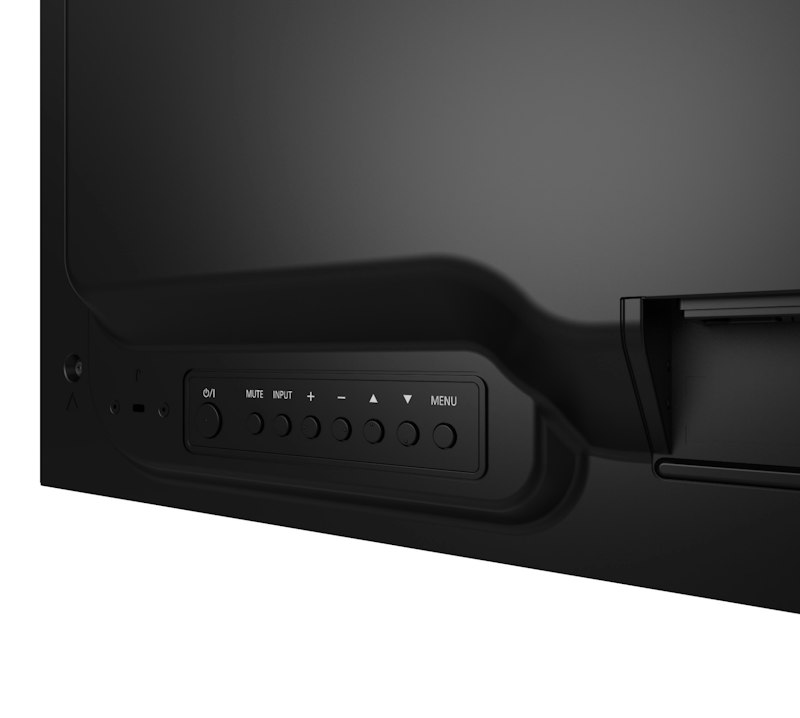

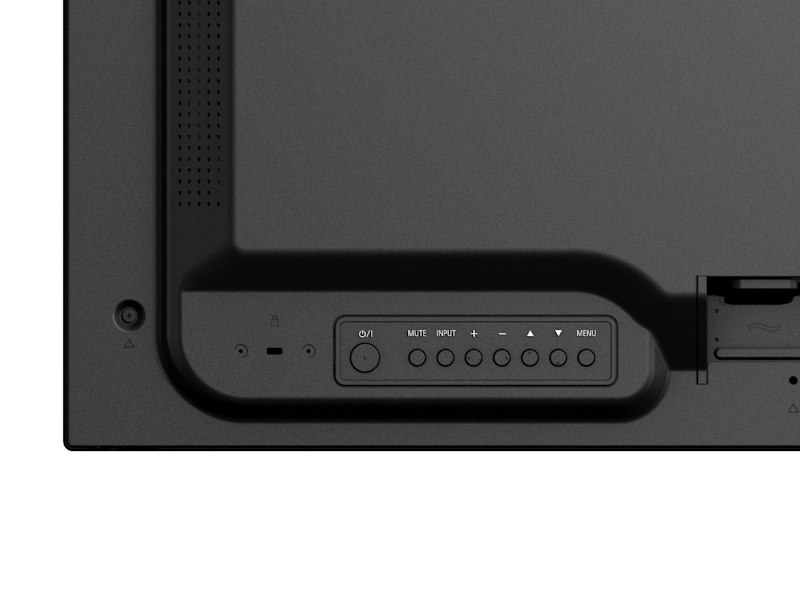

Keyboard control	Hidden, Lockable,
Network controllable	RS232, RJ45,

Accessories Toggle

Included Accessories	AC Switch Cover, Philips logo, Power cable, Quick start guide, Remote control and AAA batteries, RS232 cable, RS232 daisy chain cable, USB Cover, Wire Clamper, Edge Alignment Kit,
Stand	BM05922

Dimensions Toggle

Product weight	13.94 kg

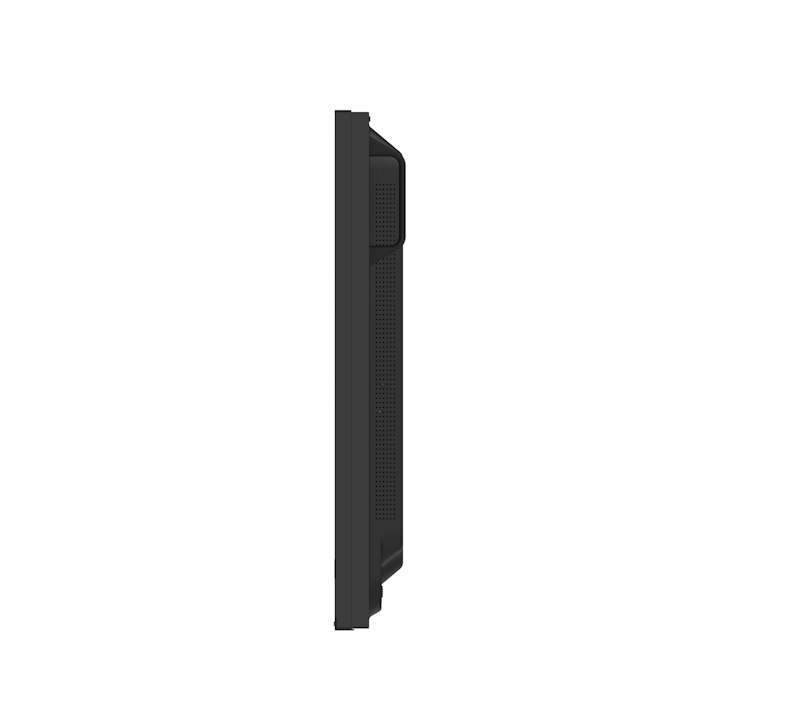

Set Depth (inch)	3.02 inch
Product weight (lb)	30.73 lb
Bezel width	13.9 mm

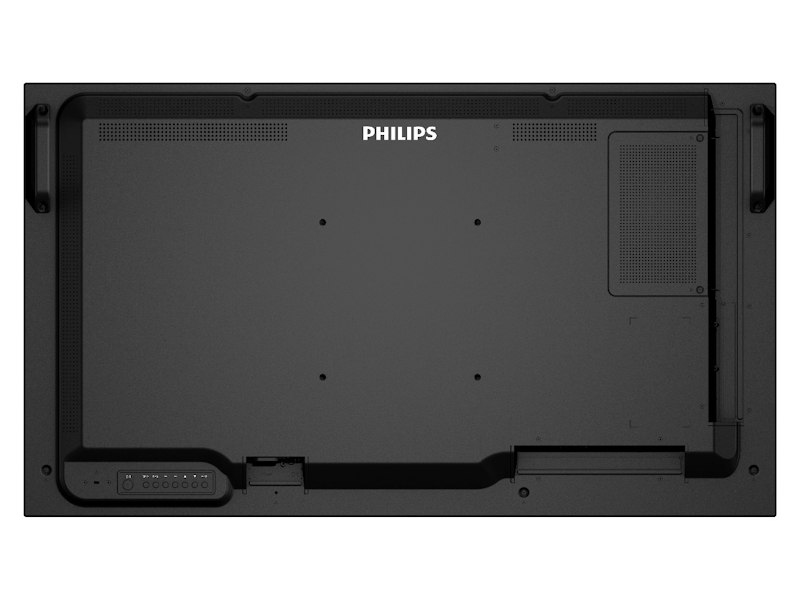

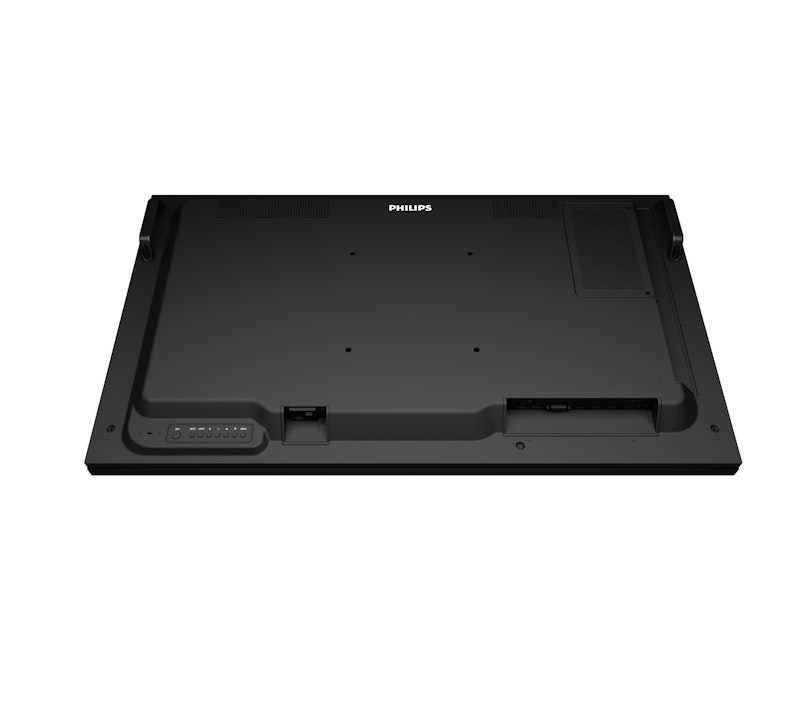

Wall Mount	200 x 200 mm, M6
Set Height	561.2 mm
Set Width	973 mm
Set Height (inch)	22.1 inch
Set Width (inch)	38.31 inch
Set Depth	76.80 mm

Sound

Built-in speakers	2 x 10 W RMS

Power

Consumption (Max)	220 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Energy Label Class	G
Standby power consumption	<0.5 W
Consumption (Typical)	80 W

Multimedia Applications Toggle

USB Playback Picture	BMP, JPEG, PNG,
USB Playback Video	H.264, Motion JPEG, MPEG1/2, WMV3,
USB Playback Audio	AAC, MPEG, HEAAC,

Miscellaneous Toggle

On-Screen Display Languages	Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese,
Regulatory approvals	CE, FCC, Class A, CB, BSMI, EAC, EMF, VCCI, PSB, ETL, EPA,
Warranty	3 year warranty

Operating conditions Toggle

Temperature range (storage)	-20 ~ 60 °C
Altitude	0 ~ 3000 m
Humidity range (storage) [RH]	5~95% RH
Humidity range (operation)[RH]	20~80% RH
Temperature range (operation)	0 ~ 40 °C
MTBF	50,000 hour

Picture/Display Toggle

Panel resolution	3840 x 2160
Pixel pitch	0.2451 x 0.2451 mm
Panel technology	ADS
Response time (typical)	8 ms
Viewing angle (horizontal)	178 degree
Aspect ratio	16:9
Brightness	750 cd/m²
Diagonal screen size (metric)	108 cm
Optimum resolution	3840 x 2160 @ 60 Hz
Haze	25%
Contrast ratio (typical)	1200:1
Diagonal screen size (inch)	42.5 inch
Viewing angle (vertical)	178 degree
Display colours	1.07 billion
Dynamic contrast ratio	500,000:1

Supported Display Resolution Toggle

Computer formats	1440 x 900, 60 Hz, 1024 x 768, 60, 70, 75 Hz, 1152 x 864, 75 Hz, 1152 x 870, 75 Hz, 1280 x 1024, 60 Hz, 1280 x 720, 60 Hz, 1280 x 800, 60 Hz, 1600 x 1200, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, 640 x 480, 60, 67, 72, 75 Hz, 720 x 400, 70 Hz, 800 x 600, 56, 60, 72, 75 Hz,
Video formats	480p, 60 Hz, 576p, 50 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, 3840 x 2160, 30Hz, 3840 x 2160, 60 Hz,
