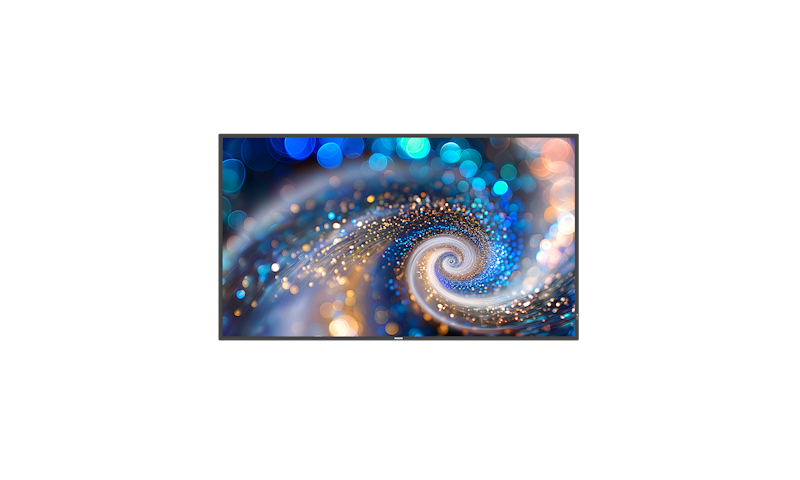

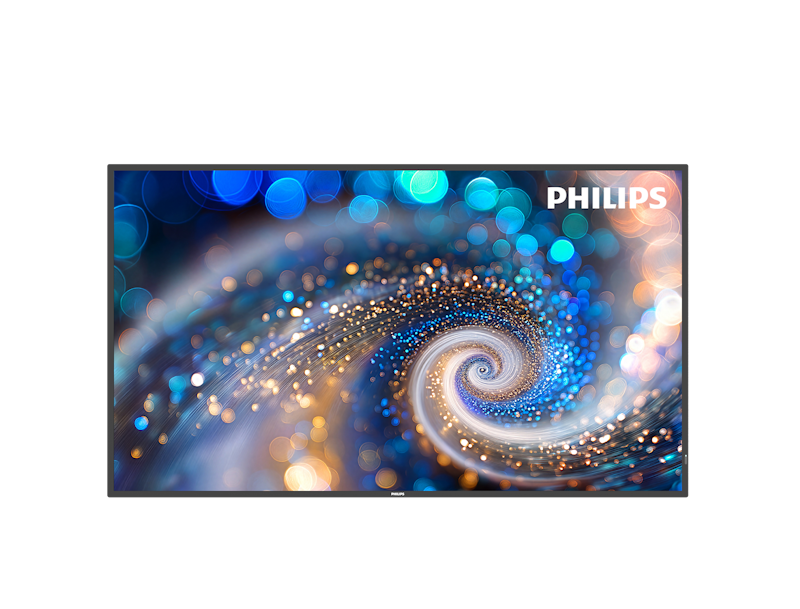

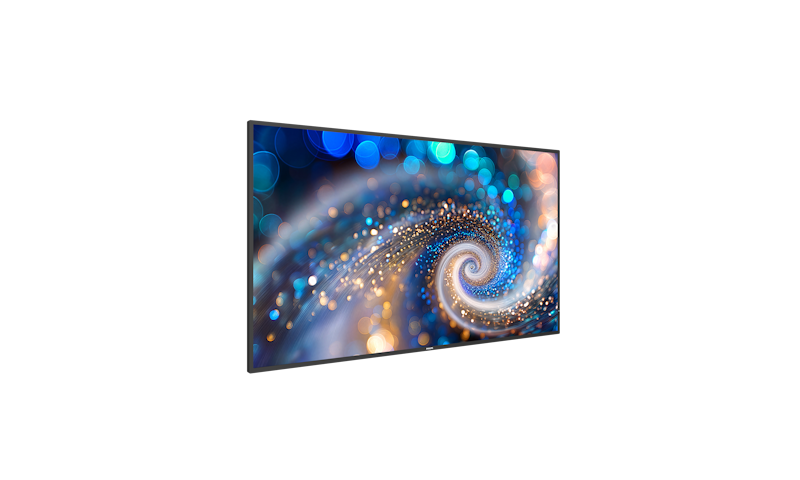

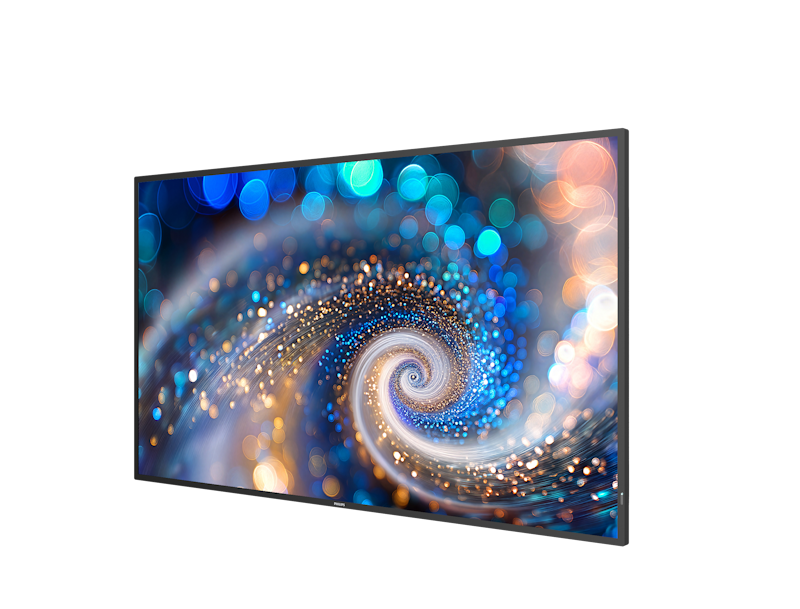

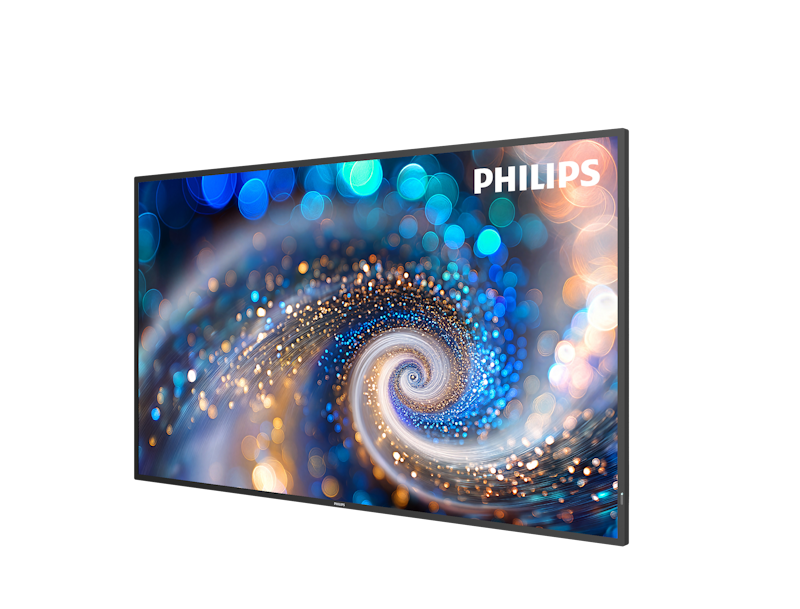

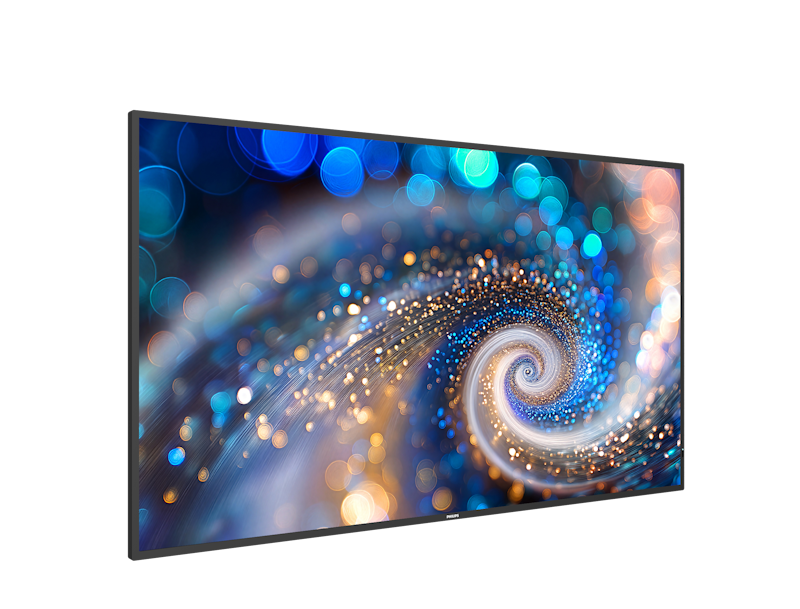

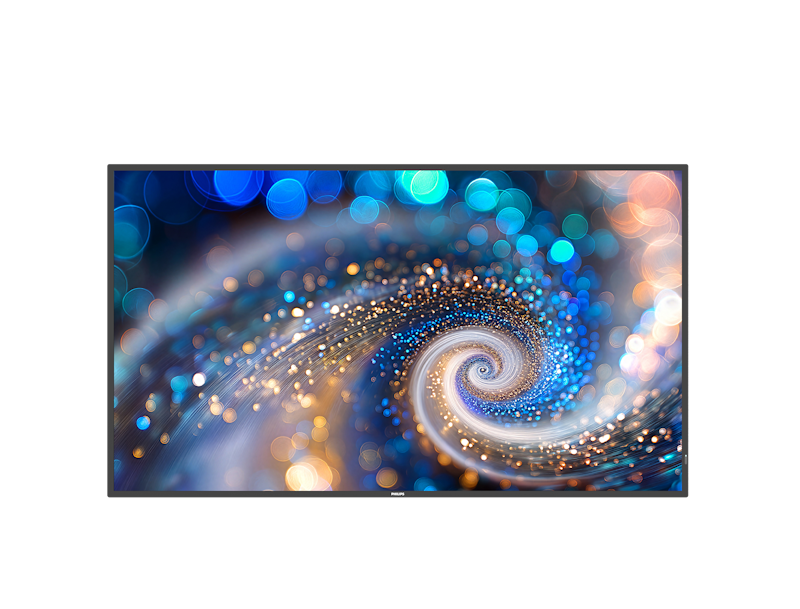

55BDL2050A/00

2000 Series / A-Line

The Philips Signage 2000 Series brings signage right back to basics – your elemental yet stylish, 16/7 display for simple integrations that don't need bells and whistles. Powered by Android 14, UHD and with 400 nits brightness.

Size: 55”

65” 55” 50” 43”

Get a quote

Connectivity Toggle

Video output	N/A
Line out	3.5mm jack
Other connections	USB 3.0
Video input	HDMI 2.0, USB-C with 4.5W PD,
External control	RJ45, IR 3.5 mm jack,

Convenience Toggle

Energy-saving functions	ECO mode
Remote control signal	Lockable
Network controllable	RJ45
Tiled Matrix	Up to 3 x 3
Keyboard control	Lockable, Hidden,
Signal loop through	IR Loopthrough
Placement	Landscape, Portrait,

Accessories Toggle

Optional accessories	CRD22 Wifi & Bluetooth module, CRD73 Philips ScreenShare license,
Included accessories	Power cable 1.8M, Remote Control, External IR cable, AC Switch Cover, Logo Badge, USB Cover and screw,

Internal Player Toggle

Memory	3GB RAM
Storage	16GB
GPU	ARM Mali G52 MC1
CPU	Quad core Cortex A73

Dimensions Toggle

Wall Mount	400 mm x 400 mm, M6
Set Height	712.6 mm
Set Width	1241.8 mm
Set Depth	63.6 mm
Product weight	17.2 kg
Set Depth (inch)	2.50 inch
Set Height (inch)	28.06 inch
Set Width (inch)	48.89 inch
Bezel width	13.9 mm
Product weight (lb)	37.92 lb

Power

Energy Label Class	G
Consumption (Typical)	111 W
Standby power consumption	<0.5 W
Mains power	100 ~ 240 VAC

Multimedia Applications Toggle

USB Playback Video	MPEG, H.264, H.263, H.265, AVI, MP4, VP8, VP9, MPEG4, WEBM,
USB Playback Audio	AAC, HEAAC, MPEG,
USB Playback Picture	JPEG, BMP, PNG,

Miscellaneous Toggle

On-Screen Display Languages	English, French, German, Italian, Polish, Turkish, Russian, Simplified Chinese, Spanish, Traditional Chinese, Arabic, Japanese, Danish, Swedish, Finnish, Norwegian, Dutch,
Warranty	3 year warranty
Regulatory approvals	CE, CB, RoHS,

Operating conditions Toggle

Temperature range (storage)	-20 ~ 60 °C
Humidity range (operation)[RH]	10 ~ 90% RH
Temperature range (operation)	5 ~ 40 °C
MTBF	30,000 hour
Altitude	0 ~ 3000 m

Picture/Display Toggle

Pixel pitch	0.315 x 0.315 mm
Brightness	400 cd/m²
Diagonal screen size (metric)	138.7 cm
Display colours	1.07 Billion
Picture enhancement	3/2 - 2/2 motion pull down, Dynamic contrast enhancement, Progressive scan, Motion adaptive de-interlacing,
Panel resolution	3840 x 2160
Viewing angle (horizontal)	178 degree
Dynamic contrast ratio	500,000:1
Aspect ratio	16:9
Operating system	Android 14
Panel technology	ADS
Response time (typical)	8 ms
Haze	1%
Viewing angle (vertical)	178 degree
Diagonal screen size (inch)	54.6 inch
Contrast ratio (typical)	1200:1
Optimum resolution	3840 x 2160 @ 60 Hz

Supported Display Resolution Toggle

Computer formats	1920 x 1080, 60Hz, 1600 x 1200, 60Hz, 1440 x 900, 60Hz, 1280 x 1024, 60Hz, 1280 x 720, 60Hz, 1280 x 800, 60Hz, 1024 x 768, 60, 70, 75Hz, 1680 x 1050, 60Hz, 3840 x 2160, 60Hz,
Video formats	1080p, 50, 60Hz, 1080i, 50, 60Hz, 720p, 50,60 Hz, 2160p, 50, 60Hz,
