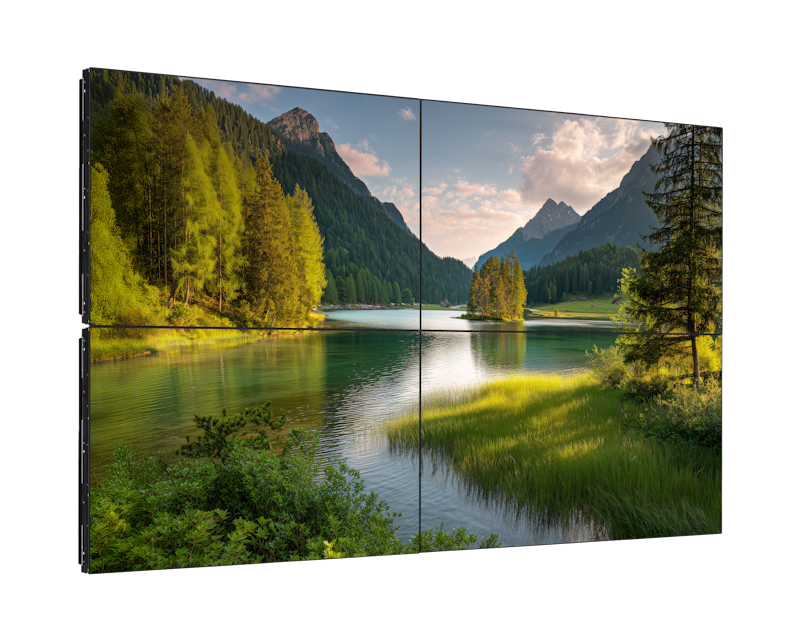

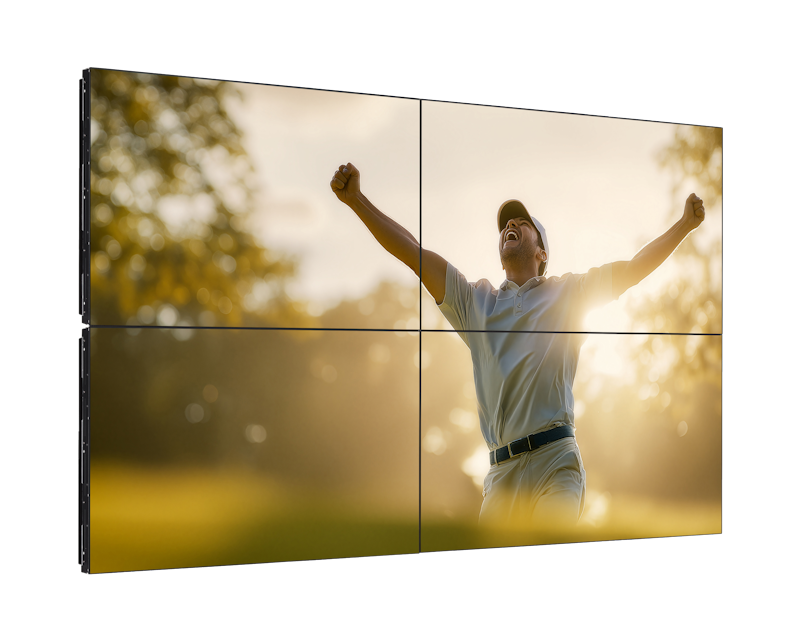

55BDL8107X/00

8000 Series / X-Line

Take presentations and corporate branding to the next level. The Philips X-Line Videowall display brings your content to life to ensure absolute audience engagement in every setting with Pure Colour Pro.

Size: 55”

Get a quote

Connectivity Toggle

External control	IR 3.5 mm jack, LAN RJ45, Signal loopthrough RJ45,
Video input	DVI-D, VGA, Display Port1.3, HDMI 2.0,
Audio input	3.5 mm mini jack
Other connections	OPS, USB 2.0, Thermal sensor,
Audio output	3.5 mm Mini Jack
Video output	DisplayPort 1.3

Convenience Toggle

Tiled Matrix	Up to 15 x 15
Ease of installation	Carrying Handles, Smart Insert,
Placement	Landscape, Portrait,
Screen saving functions	Pixel Shift, Low Bright
Energy saving functions	Smart Power
Signal loop through	DisplayPort, RJ45,
Network controllable	LAN

Accessories Toggle

Included Accessories	Gap pad x3, IR sensor cable, Quick start guide, Remote control & AAA batteries, RJ45 / RS232 converter, Power cord, DP cable, RJ45 cable, Edge alignment pin, Edge alignment kit,
Optional accessories	Edge finishing kit top/bottom: EFK5539, Edge finishing kit left/right: EFK5569,

Dimensions Toggle

Set Width	1211.1 mm
Smart Insert mount	100mm x 100mm, 6xM4xL6
Set Depth	95.3 mm / 94.3 mm mm
Set Height	681.9 mm
Wall Mount	400mm x 400mm, M6
Product weight	23.8 kg
Set Depth (inch)	3.75 / 3.71 inch
Set Width (inch)	47.68 inch
Set Height (inch)	26.85 inch
Bezel width	0.44 mm + 0.44 mm

Power

Consumption	EEI lot5 134W
Energy Label Class	G
Standby power consumption	0.5 W

Sound

Built-in speakers	2 x 10W

Operating conditions Toggle

Humidity range (operation)[RH]	20 - 80%
Temperature range (operation)	0 ~ 40 °C
MTBF	50,000 hour
Humidity range (storage) [RH]	5 - 95%
Temperature range (storage)	-20 ~ 60 °C
Altitude	0 ~ 3000 m

Picture/Display Toggle

Haze	25 %
Viewing angle (horizontal)	178 degree
Optimum resolution	1920 x 1080 @ 60 Hz
Display colors	16.7M
Response time (typical)	8 ms
Contrast ratio (typical)	1200:1
Diagonal screen size (metric)	138.7 cm
Diagonal screen size (inch)	54.5 inch
Aspect ratio	16:9
Brightness	700 cd/m²
Dynamic contrast ratio	500,000:1
Viewing angle (vertical)	178 degree
Pixel pitch	0.63 x 0.63 mm
Panel resolution	1920x1080p

Miscellaneous Toggle

Regulatory approvals	CE, FCC, Class A, RoHS, CB,
On-Screen Display Languages	Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese,
Warranty	3 years warranty

Supported Display Resolution Toggle

Video formats	720p, 50, 60Hz, 1080i, 25, 30Hz, 1080p, 50, 60Hz, 2160P 50, 60Hz,
Computer formats	640 x 480, 60, 72, 75Hz, 720 x 400, 70Hz, 800 x 600, 60, 75Hz, 1024 x 768, 60, 75Hz, 1280 x 768, 60Hz, 1280 x 800, 60Hz, 1280 x 960, 60Hz, 1280 x 1024, 60Hz, 1360 x 768, 60Hz, 1366 x 768, 60Hz, 1600 x 1200, 60Hz, 1920 x 1080, 60Hz,
