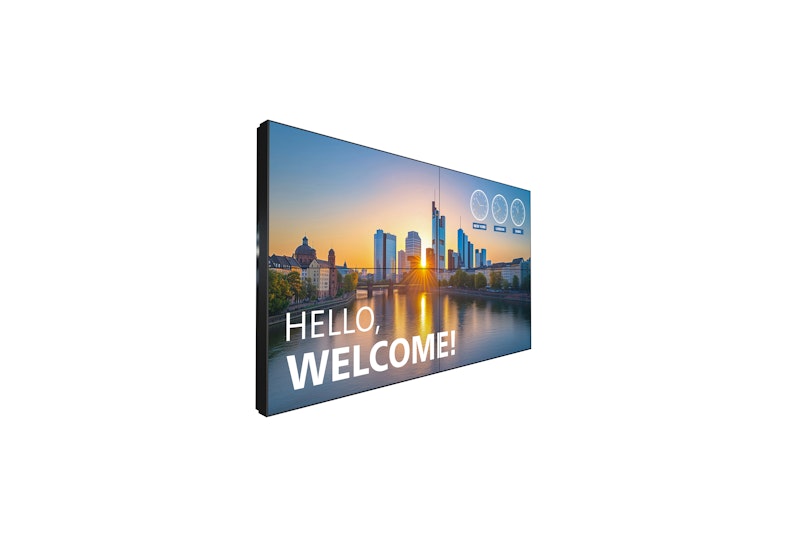

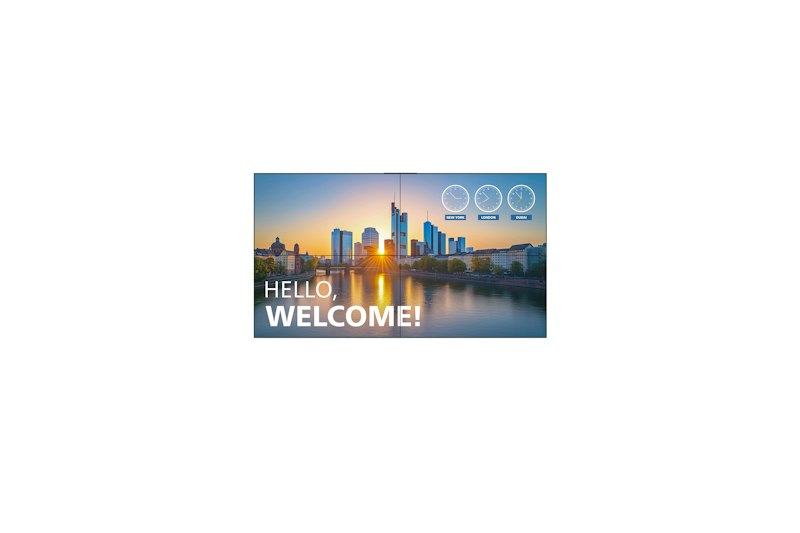

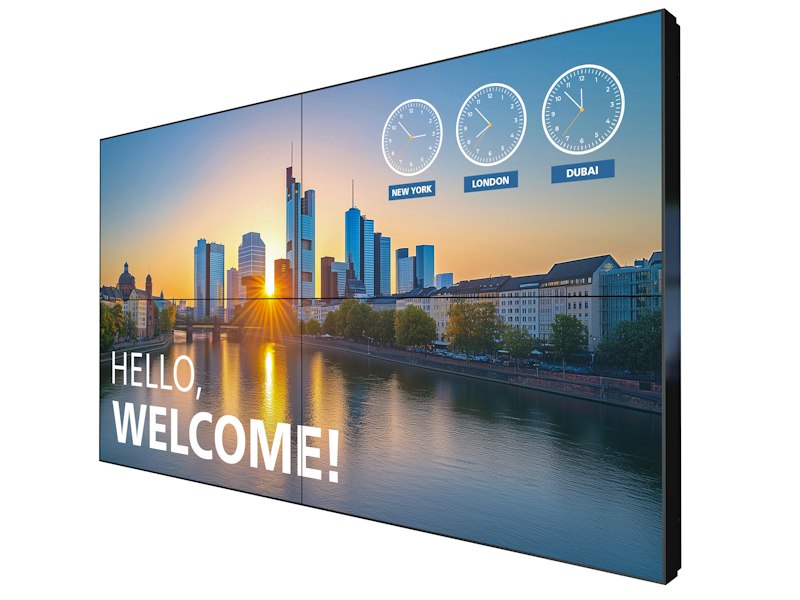

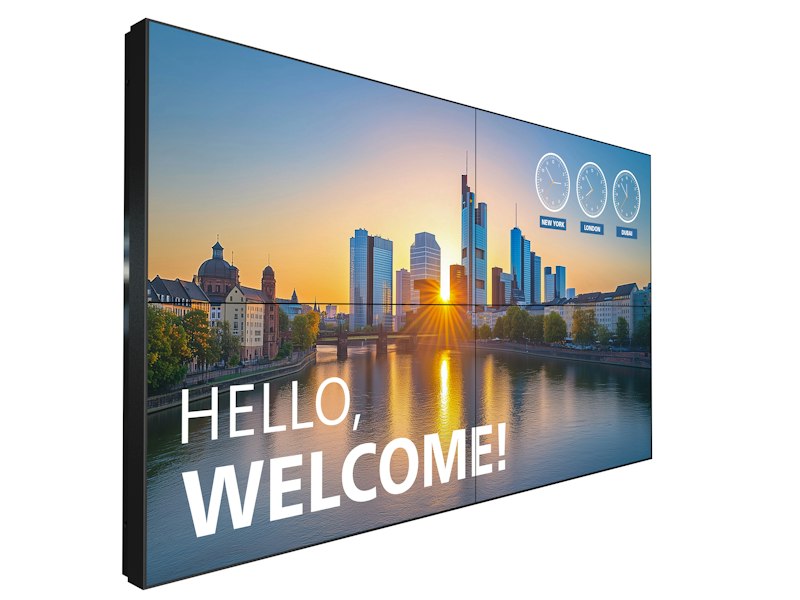

55BDL3305X/00

3000 Series / X-Line

The Philips Videowall 3000 is designed for 24/7 operation and engages customers with its dynamic, immersive content. The CMND platform simplifies the management of content, while FailOver ensures enhanced reliability and peace of mind.

Size: 55”

Get a quote

Connectivity Toggle

Other connections	OPS, USB 2.0, Thermal sensor,
Audio output	3.5 mm Mini Jack
Audio input	3.5 mm mini jack
Video input	Display Port1.2, DVI-D, HDMI 2.0, VGA,
External control	IR 3.5 mm jack, LAN RJ45,
Video output	DisplayPort 1.2

Convenience Toggle

Signal loop through	DisplayPort, RJ45,

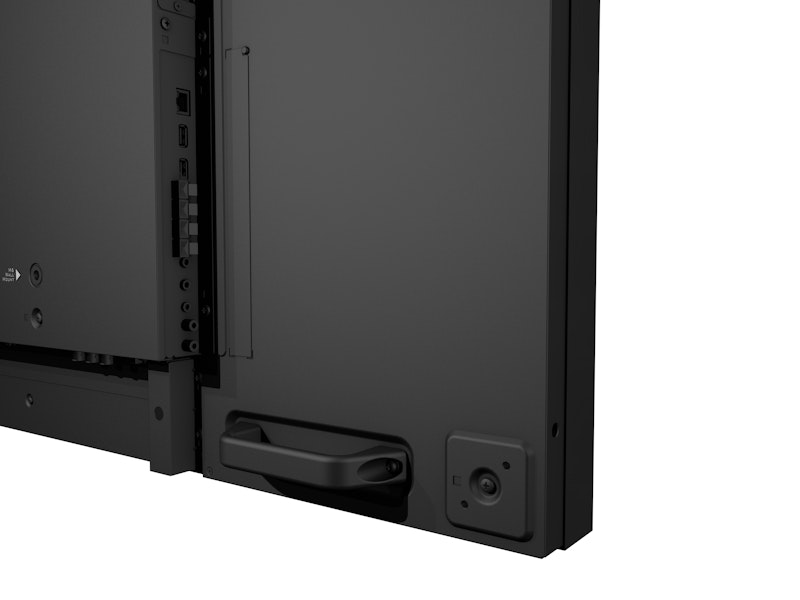

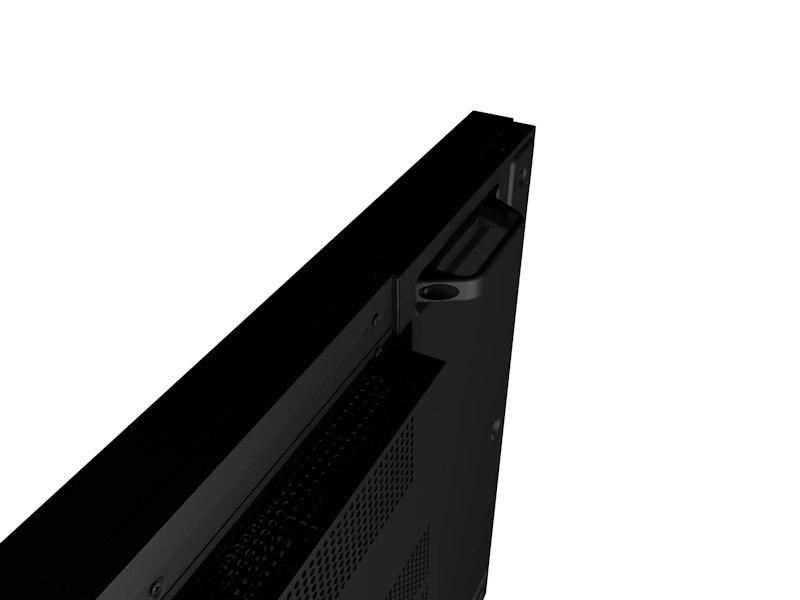

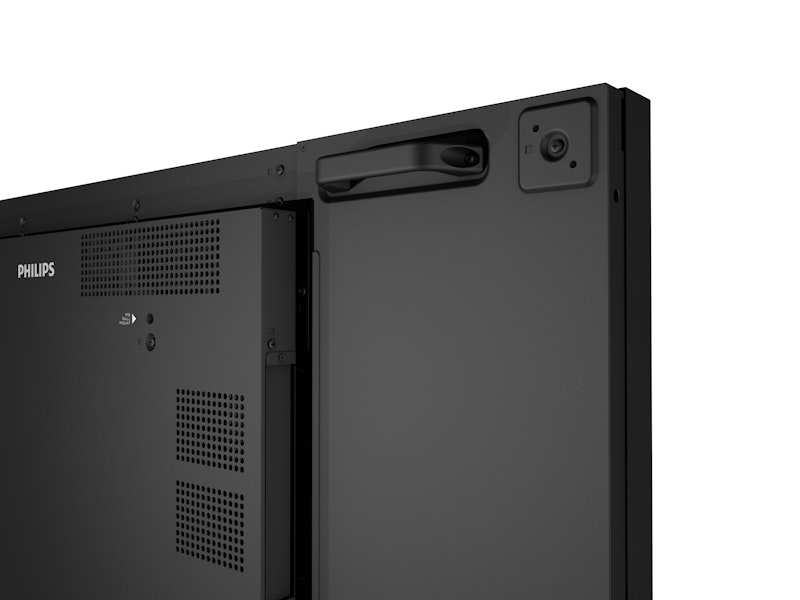

Ease of installation	Carrying Handles, Smart Insert,
Placement	Landscape, Portrait,
Screen-saving functions	Pixel Shift, Low Bright
Energy-saving functions	Smart Power
Tiled Matrix	Up to 15 x 15
Network controllable	LAN

Accessories Toggle

Included Accessories	Gap pad x 3, IR sensor cable, Quick start guide, Remote control and AAA batteries, RJ45/RS232 converter, Wire Clamper, Power cord, DP cable, RJ45 cable, Edge alignment pin, Kit-1, Kit-2,

Dimensions Toggle

Bezel width (combined)	<3 mm

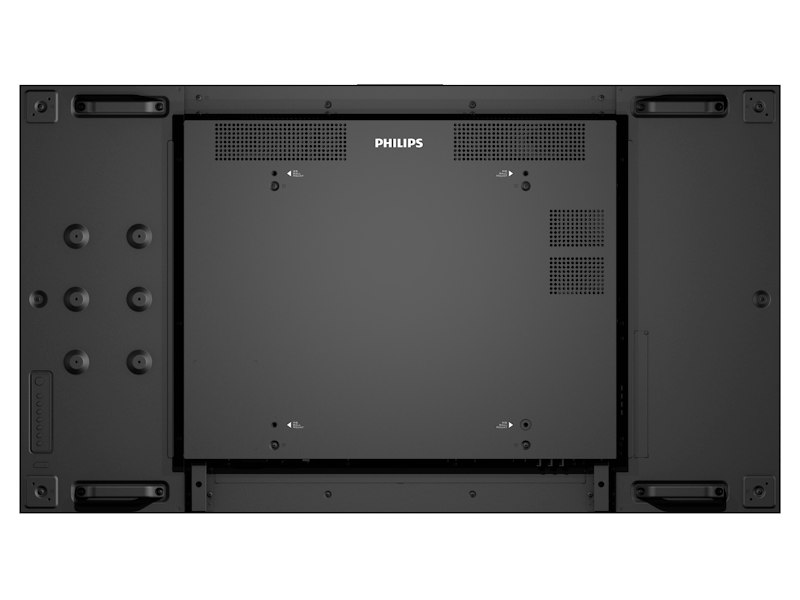

Smart Insert mount	100 mm x 100 mm and 100 mm x 200 mm, 6 x M4 x L6
Set dimensions in inches (W x H x D)	47.69 x 26.85 x 3.85/3.85 inch
Set dimensions (W x H x D)	1211.3 x 682.1 x 97.8 mm/97.8 mm mm
Wall Mount	400 x 400 mm, M6
Product weight	28.7 kg
Bezel width	2.9 mm

Sound

Built-in speakers	2 x 10 W

Power

Standby power consumption	0.5 W
Consumption (Max)	228 W
Energy Label Class	G
Consumption (Typical)	164 W

Miscellaneous Toggle

Warranty	3 year warranty
On-Screen Display Languages	Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese,
Regulatory approvals	CE, FCC, Class A, RoHS, CB, ETL, BSMI,

Picture/Display Toggle

Diagonal screen size (inch)	55 inch
Contrast ratio (typical)	1200:1
Viewing angle (vertical)	178 degree
Haze	25%
Brightness	500 cd/m²
Response time (typical)	8 ms
Optimum resolution	1920 x 1080 @ 60 Hz
Pixel pitch	0.63 x 0.63 mm
Panel resolution	1920 x 1080p
Display colours	16.7 M
Dynamic contrast ratio	500,000:1
Aspect ratio	16:9
Viewing angle (horizontal)	178 degree

Operating conditions Toggle

Humidity range (operation)[RH]	20–80%
Humidity range (storage) [RH]	5–95%
Temperature range (operation)	0 ~ 40 °C
Altitude	0 ~ 5000 m
MTBF	50,000 hour
Temperature range (storage)	-20 ~ 60 °C

Supported Display Resolution Toggle

Computer formats	For details, see user manual
Video formats	1080p, 25, 30, 50, 60 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 2160p, 25, 30, 50, 60 Hz,
