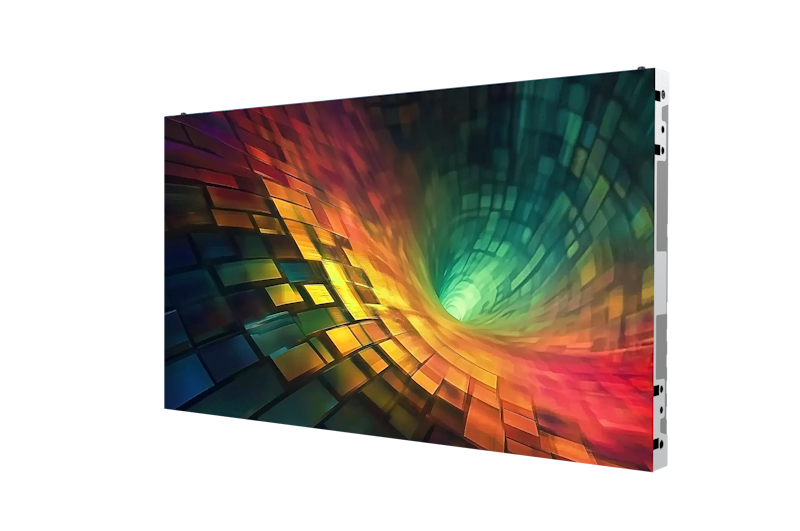

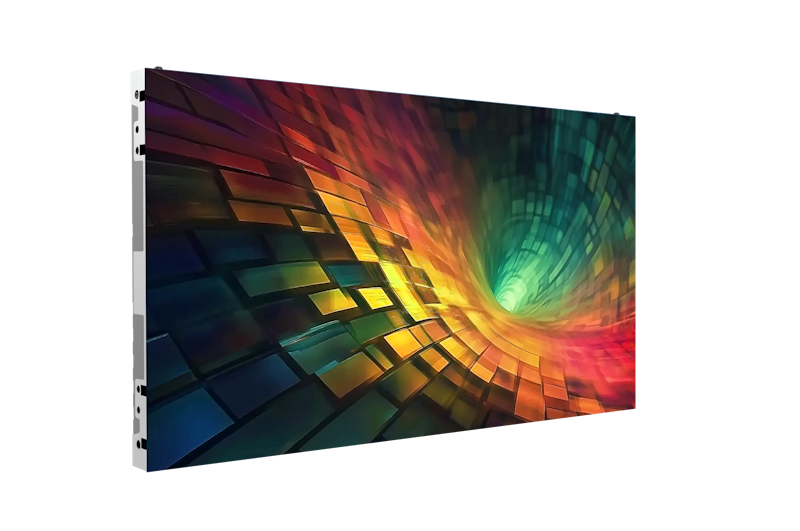

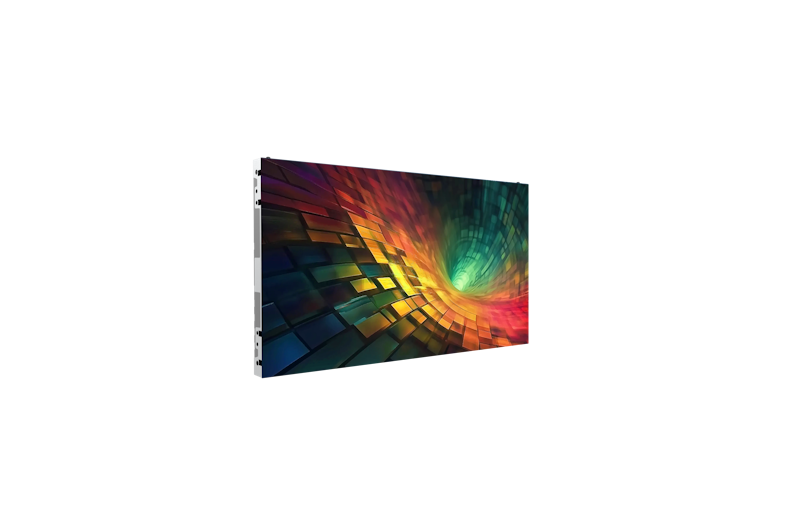

27HDL6000IP/00

6000 Series / L-Line

The Philips Unite 6000 Series redefines professional LED performance. Purposefully engineered and expertly specified to bring ease of installation together with advanced features and stunning visual quality. Ideal for true business impact.

Size: 27”

Get a quote

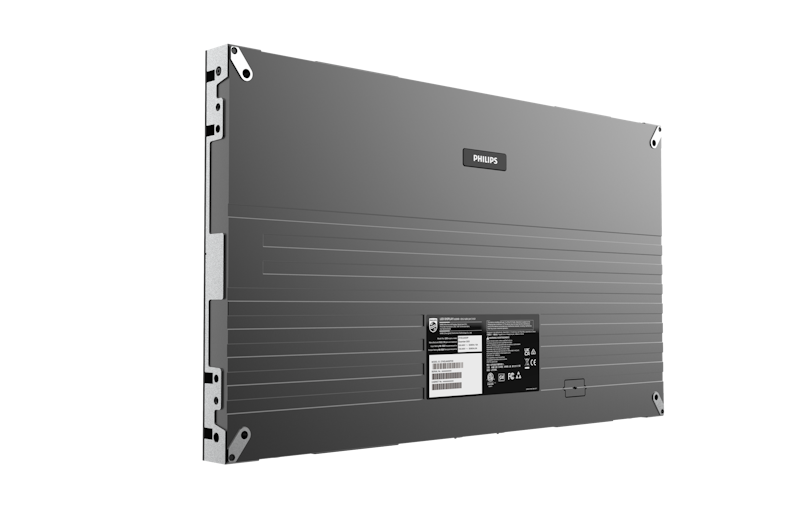

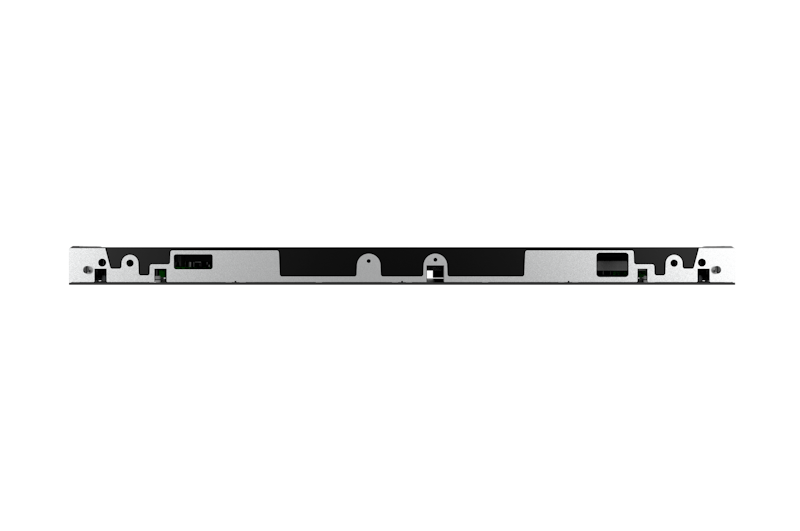

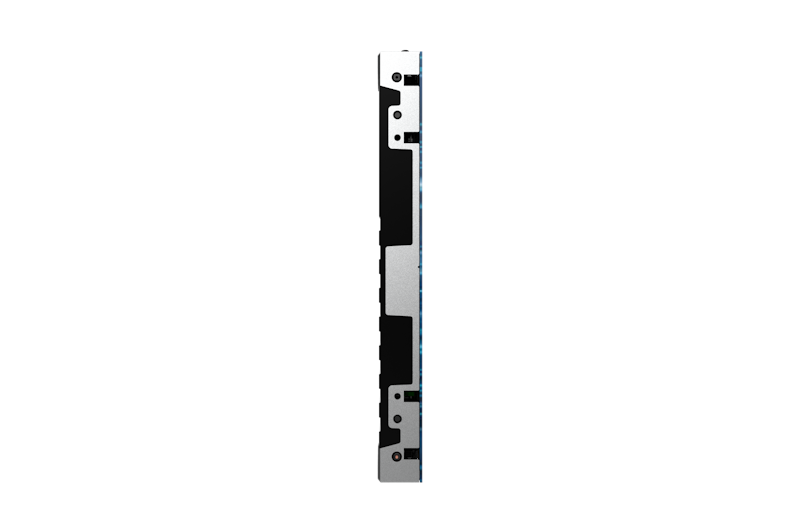

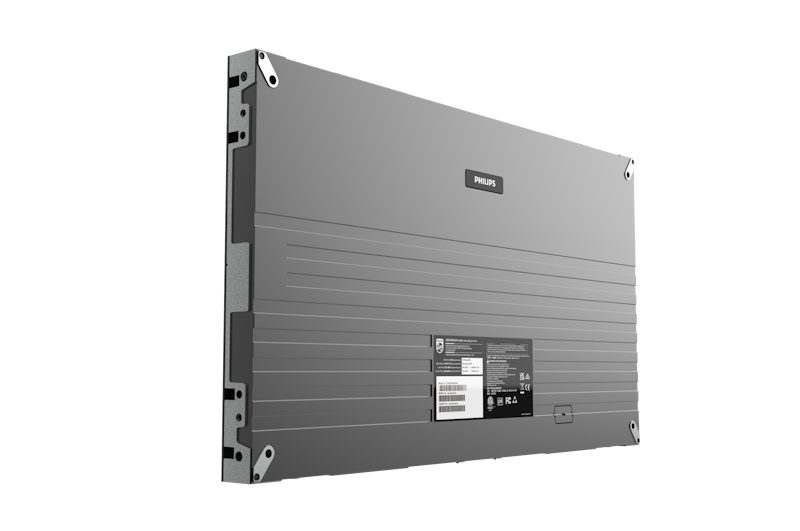

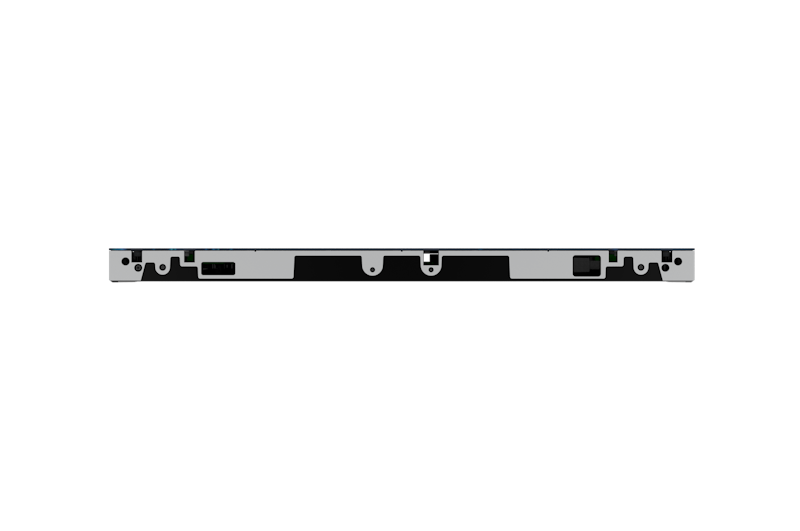

Cabinet

Cabinet construction	Die-Casting Aluminium
Data connector	RJ45
Cabinet resolution (W x H)	480 x 270/384 x 216/320 x 180 pixels
Power connector	C13/C14
Receiving card type	A5s+
Cabinet size (inches)	27.1"
Receiving card brand	NovaStar
Cabinet Size (W x H x D in mm)	600 x 337.5 x 33.5/600 x 337.5 x 33.6/600 x 337.5 x 33.7
Cabinet area (m2)	0.2025
Weight (kg)	5.44 kg/5.36 kg/5.36 kg
Receiving card quantity	1

Power

BTU/M2	1483/1314/1146
Input voltage	AC100~240 V
Cabinet Max Power consumption (W)	88/78/68
Power supply unit	HWT-354V6-SS
Power consumption/M2 (W)	435/385/336
Cabinet Typical Power consumption (W)	29.3/26/22.7

Miscellaneous Toggle

Regulatory approvals	FCC SDOC, Part 15, Class A, EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, CE, RoHS,
Warranty	2 years

Picture/Display Toggle

Brightness uniformity	≧97%
Frame frequency (Hz)	50–60
Contrast ratio	≥3000:1
Colour temperature default	6500 K±500 K
Colour uniformity	± 0.012 Cx, Cy
Refresh rate (Hz)	3840 Hz
Scan rate	45
Bit-depth (bit)	13
Colour temperature adjust range	4000~9500
Calibration (brightness/colour)	Colour and Brightness
Brightness (nits)	600 nit
Viewing angle (°) H/V	145/145
Colour coordinates	0.313, 0.325

Operating conditions Toggle

Humidity range (storage) [RH]	10%-85% RH
Temperature range (operation)	-20 - 45 °C
Humidity range (operation)[RH]	10%-80% RH
Temperature range (storage)	-20 - 50 °C
Working environment (indoor/outdoor)	Indoor

Module

Conformal coating (UV-resistant)	No
LED Pole type	Common Anode
Included	Black screen power saving, Flash memory, Dynamic power saving
Pixel pitch (mm)	1.25/1.5625/1.875
Module Resolution (W × H in pixels)	240 x 135/192 x 108/160 x 90
Pixel constitution	SMD 1R1G1B
Flatness of LED module with back shell	≦0.25 mm
LED type	SMD
LED Lifetime (hrs, half brightness)	100,000
Module size (W x H in mm)	300 x 168.75 x 2.0 mm

Packaging Data Toggle

Carton/Paper Weight	1.95 kg
Net weight	3.175Kg
Gross weight	5.155 kg
Package size (W x H x D mm)	690420123 mm
Plastic Weight	0.5 kg
