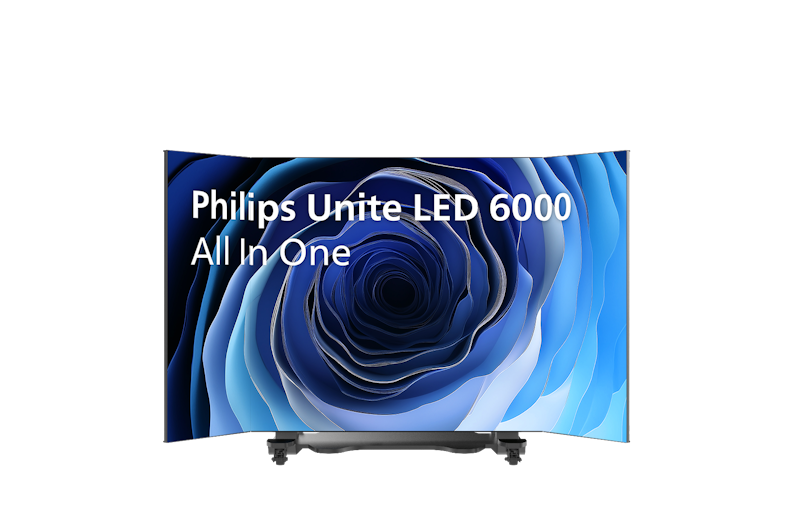

6000 Series / AIO

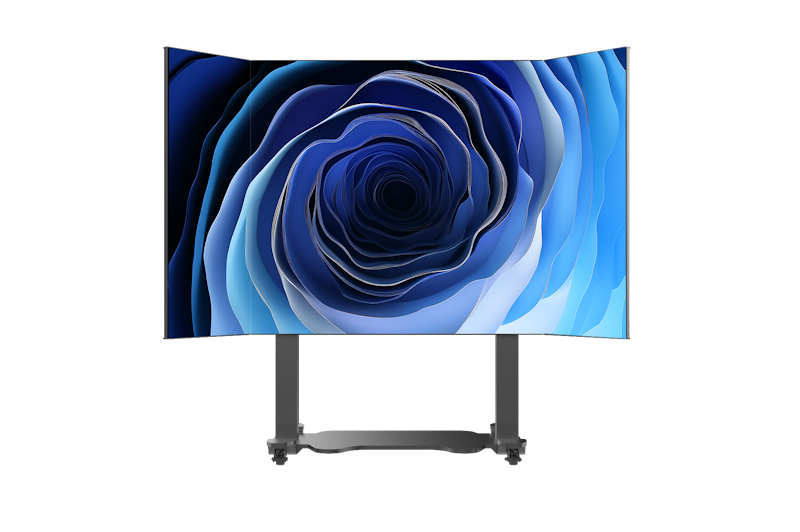

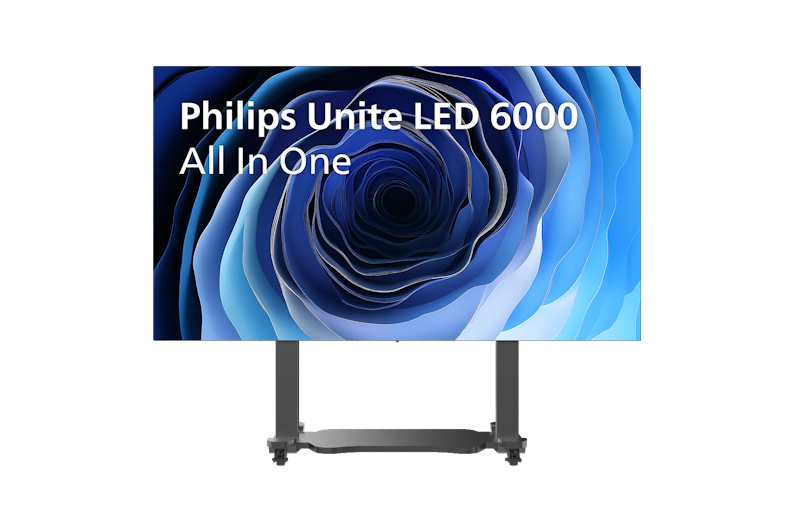

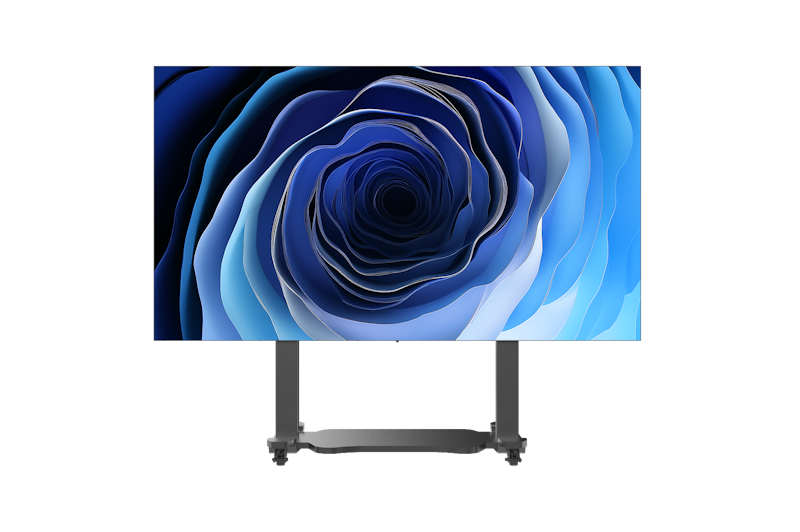

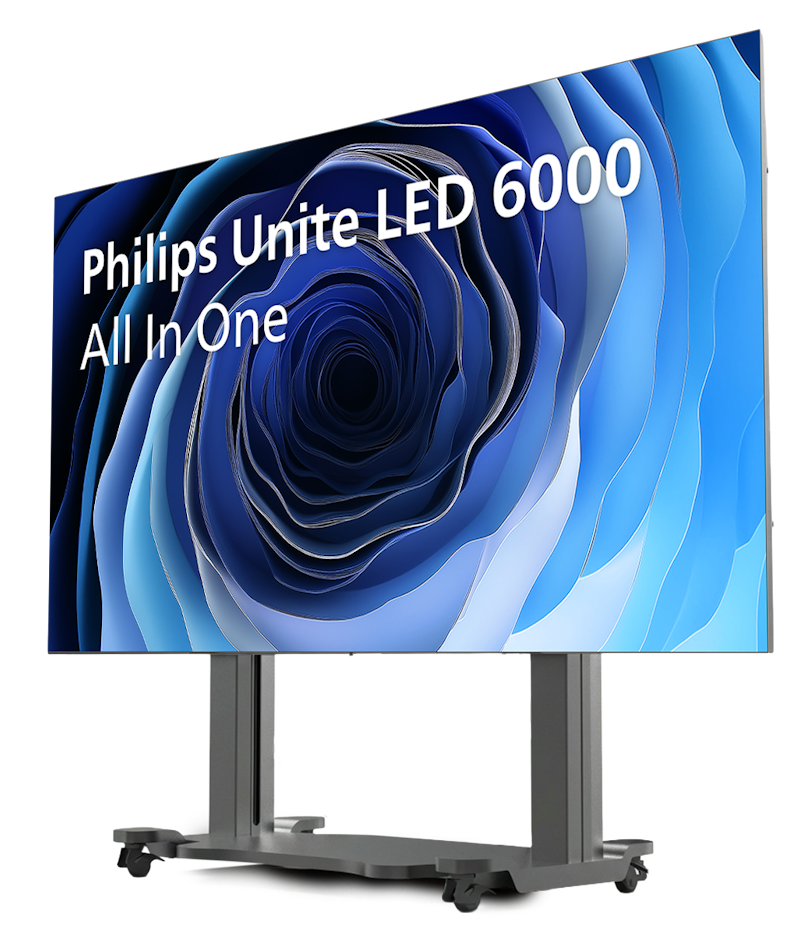

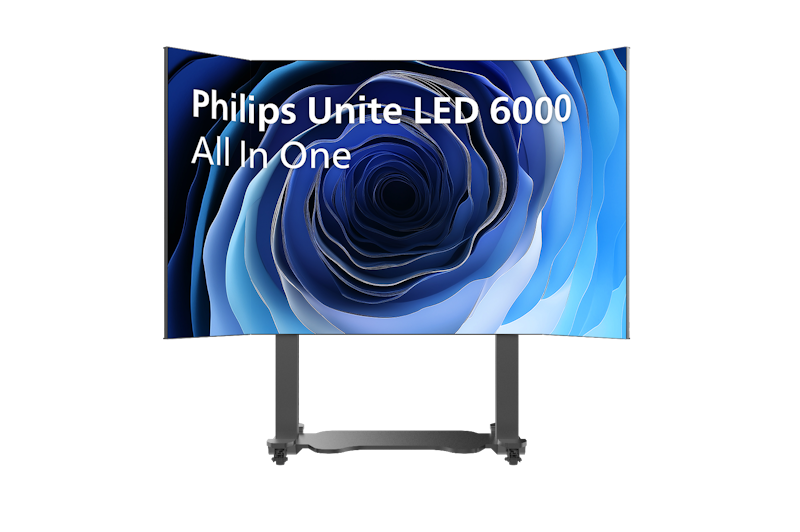

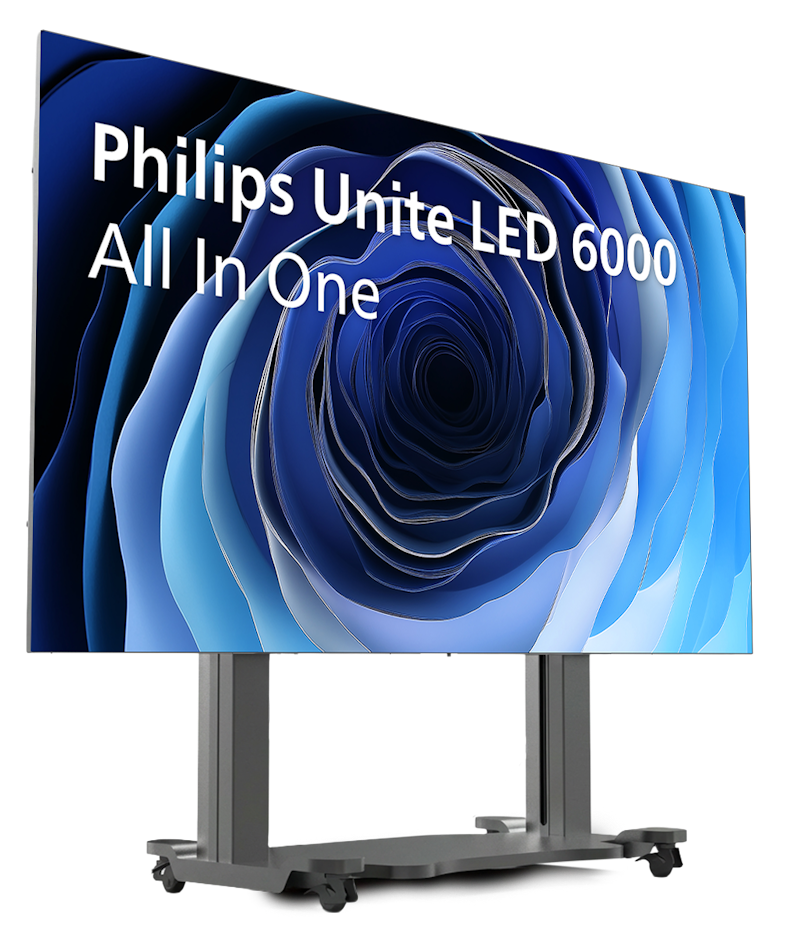

Maximise ROI with this ultimately flexible dvLED display. Mechanised to raise and lower, as well as folding to fit through doorways, this All-In-One display can be moved to suit, with the option for a flight case for easy movement, too.

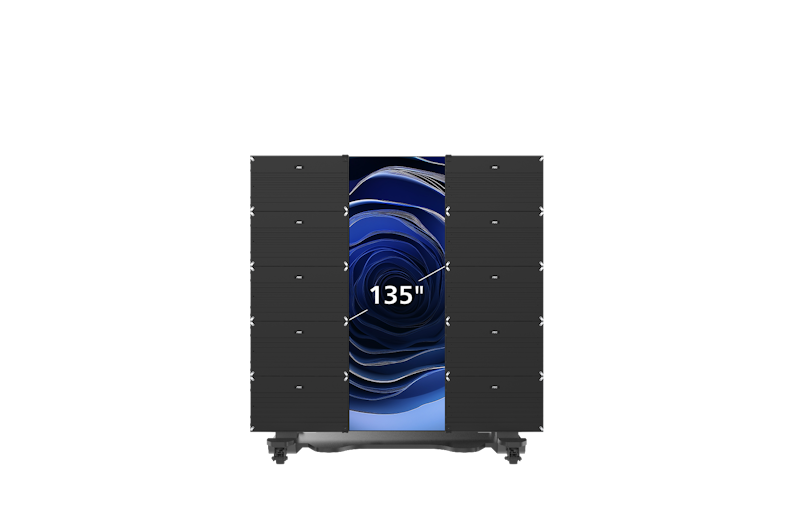

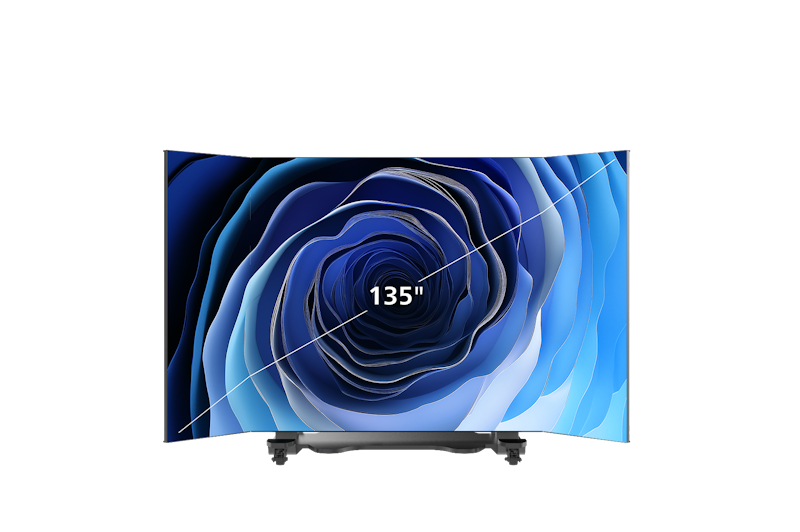

Size: 135”
Connectivity
| Audio input | 3.5 mm mini jack |
|---|---|
| External control | RS232C 2.5 mm jack, RJ45, IR 3.5 mm jack, |
| Video output | DisplayPort 1.4 |
| Video input | DVI-I, DisplayPort 1.4, HDMI 2.0, USB 3.0, |
| Audio out | 3.5 mm headphone/line-out jack |
Accessories
| Included accessories | Remote Control and AAA Batteries, Quick start guide, Speaker set, |
|---|---|
| Wi-Fi module | CRD22 Wi-Fi and Bluetooth USB module, incl 2 antennas |
Feature
| Included Features | File management, Chromium, Browser, Media Player, Settings, Teamviewer, PDF Player, Interact |
|---|
Power
| Mains power | AC 100~240 |
|---|---|
| Typical power cons. (W) | 600 |
| Max Power consumption (W) | 1.650 W |
Miscellaneous
| Regulatory approvals | CE, FCC SDOC, Part 15, Class A, CB 62368, RoHS, |
|---|---|
| Warranty | 3 Years |
Operating conditions
| Temperature range (storage) | -20~50 °C |
|---|---|
| Temperature range (operation) | -20~45 °C |
| Humidity range (storage) [RH] | 10~85% |
| Humidity range (operation)[RH] | 10~80% |
Picture/Display
| Resolution | 1920 x 1080 |
|---|---|
| Colour temperature adjust range | 6500 ± 500 K |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 160° degree |
| Anti-Pinch | Yes |
| Refresh rate (Hz) | 3840 |
| Electric Lifting | Yes |
| Frame frequency (Hz) | 50/60 |
| Brightness uniformity | ≥95% |
| Emergency stop | Yes |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle (vertical) | 160° degree |

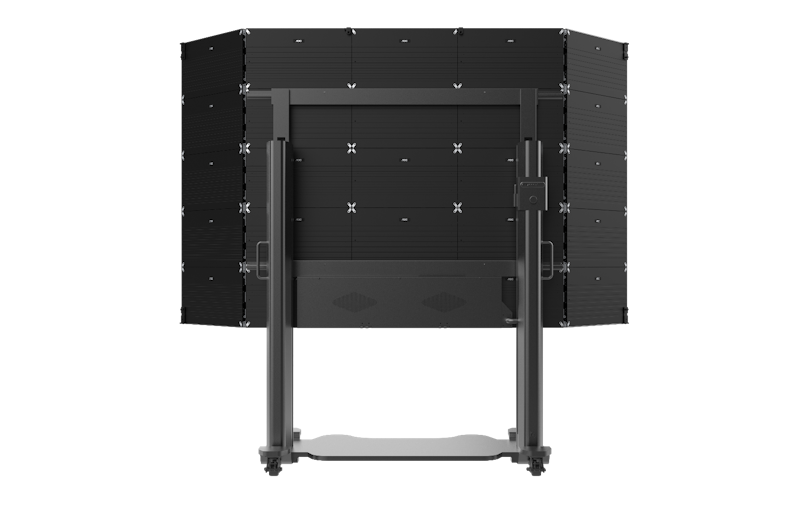

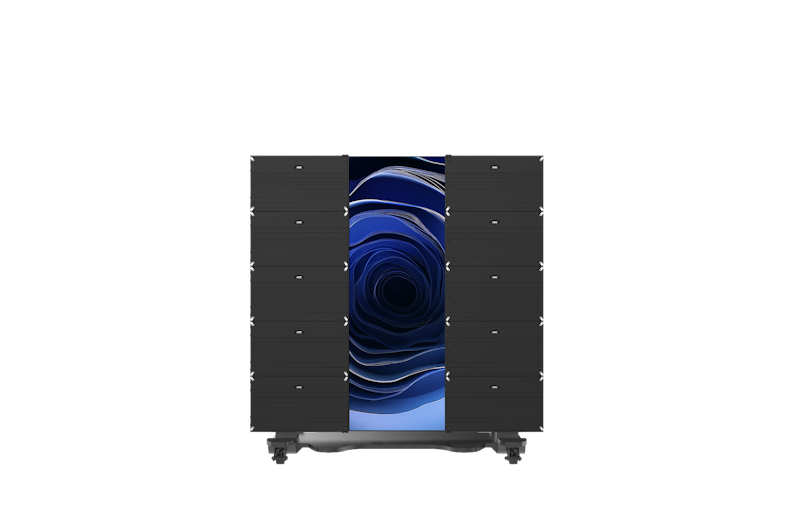

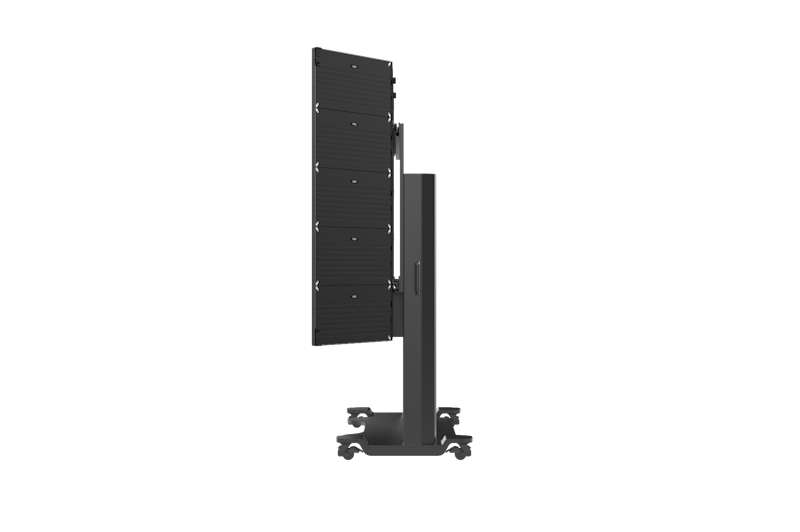

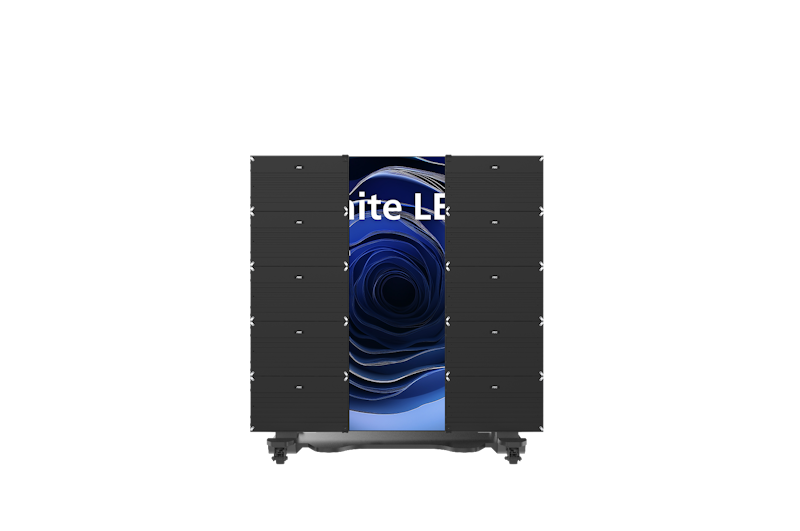

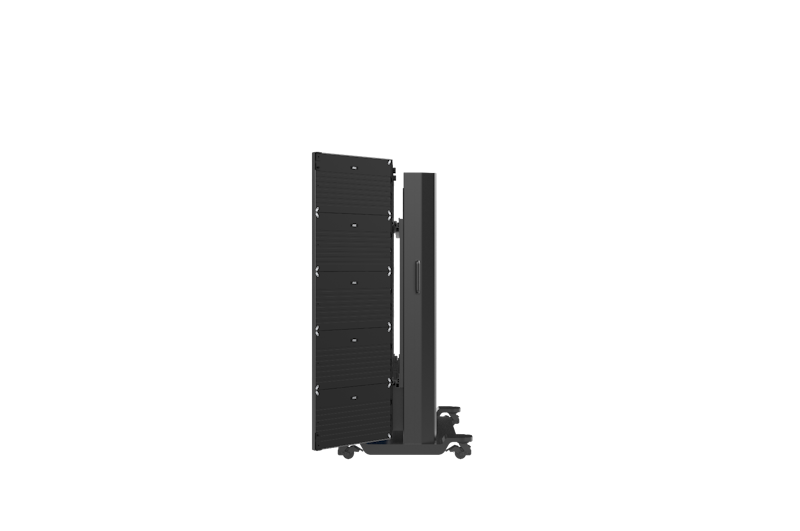

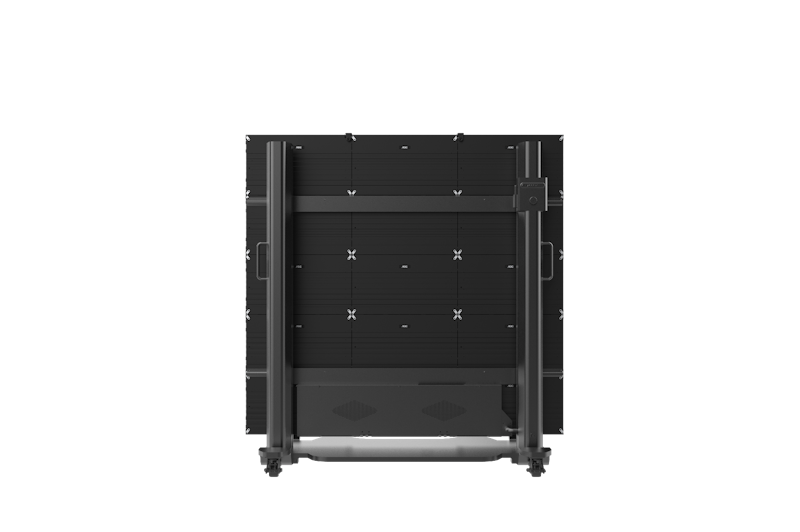

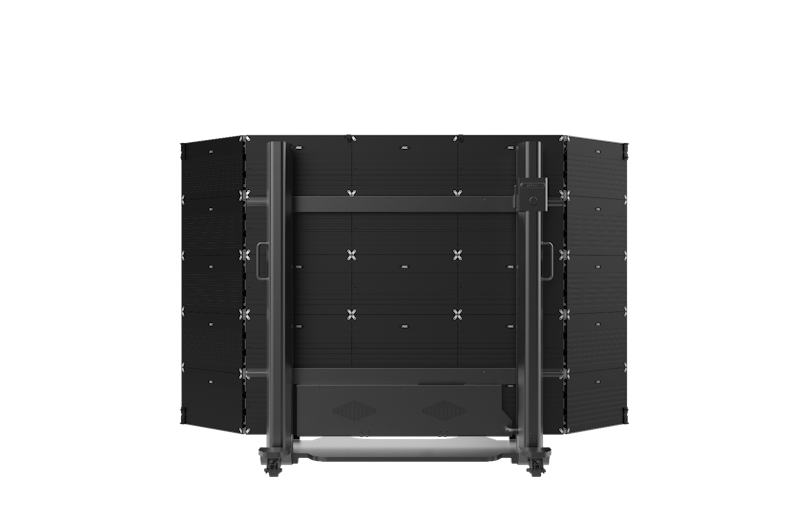

| Screen Folding | Yes |
Module
| LED type | COB |
|---|---|
| LED lifetime(Hrs) | 100.000 |
| Module size (W x H in mm) | 150 x 168.75 |
| Pixel constitution | 1R1G1B_Flip Chip |
| Pixel pitch (mm) | 1.5625 |
| Module resolution (WxH pixels) | 96 x 108 |
Packaging Data

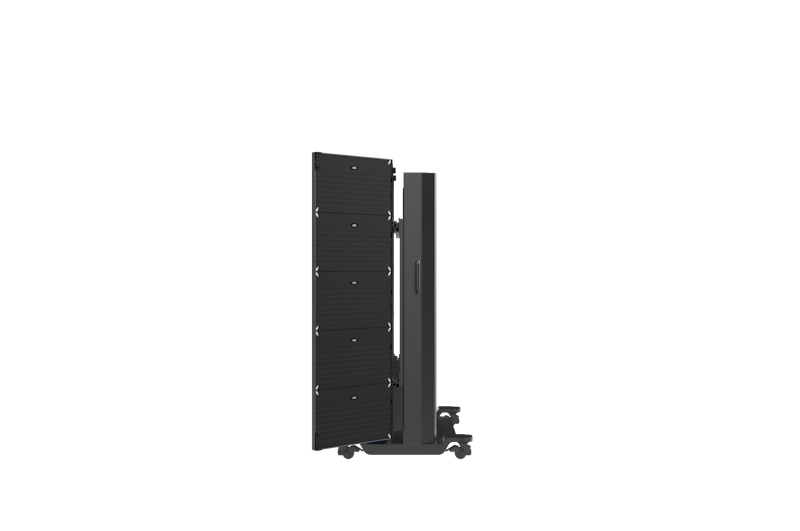

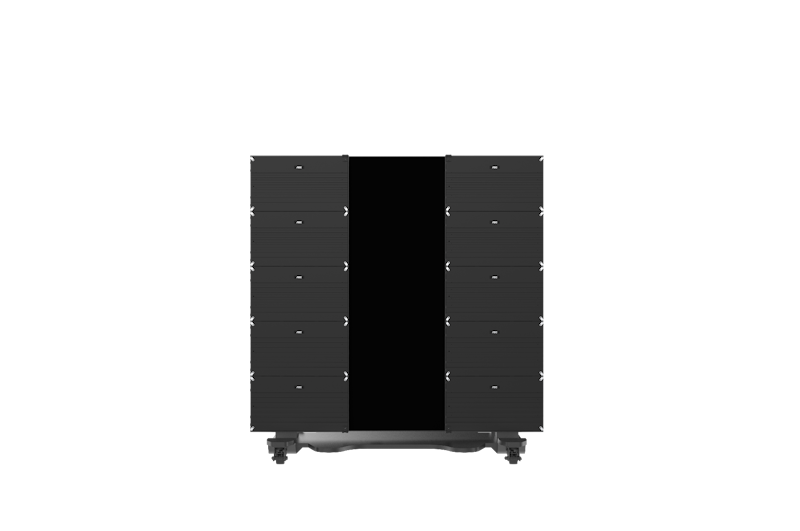

| Dimension when folded | H1875.5 x W1820 x D850 mm |
|---|---|
| Product Dimension | 3000 x 1687.5 mm |
| Packing Options | Flight case |

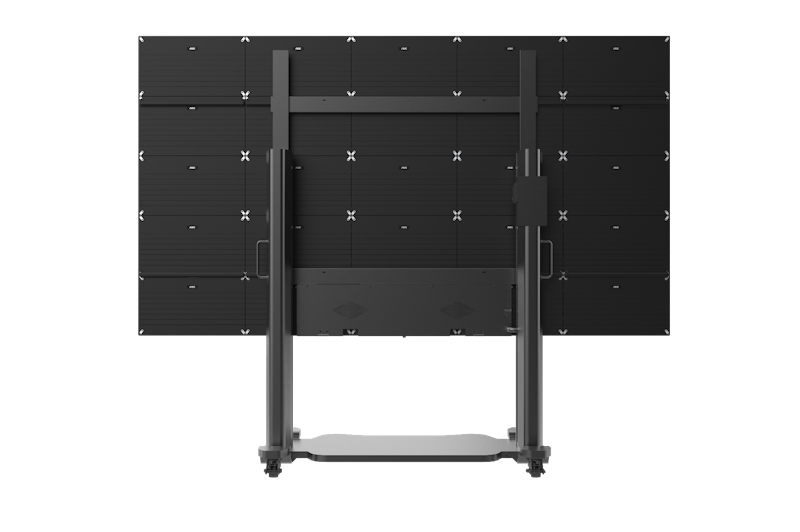

| Dimension when fully extended | H2475.5 x W3010 x D850 mm |
| Net weight | 278 kg |
