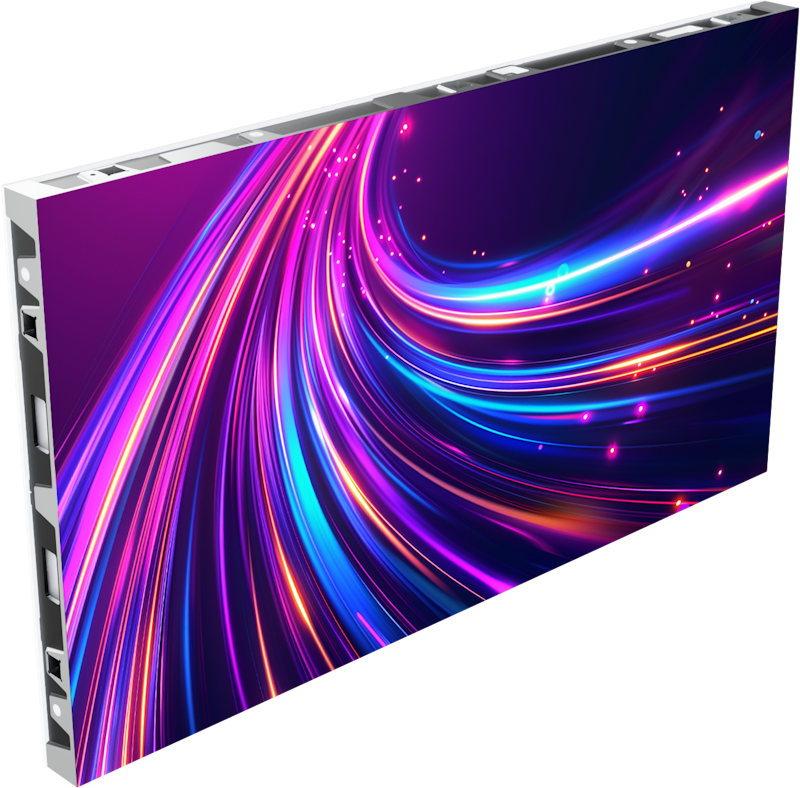

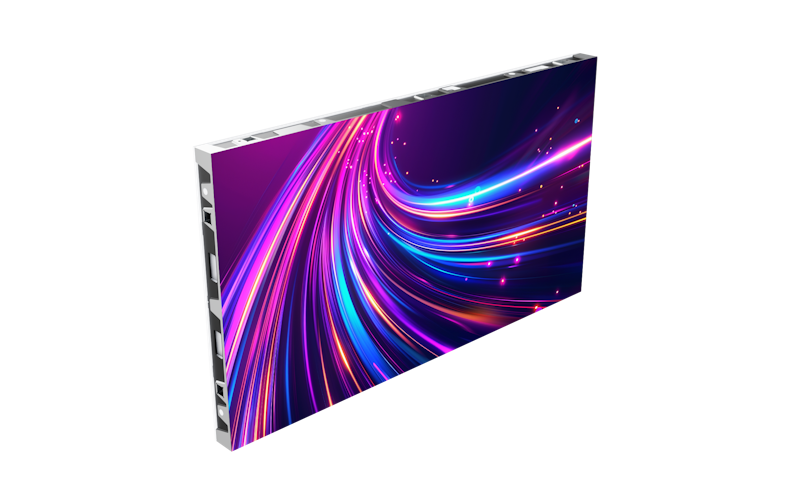

27HDL5193IP/00

5000 Series / L-Line

The Philips LED Unite 5000 Series is your essential range of investment-friendly flip chip COB panels that deliver on high quality, resolution, reliability and efficiency. So reliability, efficiency.

Size: 27”

Get a quote

Accessories Toggle

LAN cable (type/length)	RJ45 75 cm/RJ45 15 cm
Screws (type/length mm)	Hex M6, 22 mm
QSG (Quick Start Guide)	Printed on carton

Cabinet

Receiving card spec.	A10s Pro x 2
Cabinet Size (W x H x D in mm)	600 x 337.5 x 33.6
Receiving card quantity	2 pcs
Cabinet pixels (Dot)	1,137,777
Receiving card brand	Novastar
Cabinet diagonal (inch)	27.1"
Cabinet resolution (W x H)	640 x 360 mm
Power connector	3-pin connector
Weight (kg)	4.7 ± 0.2
Cabinet area (m2)	0.2052
Cabinet construction	Die cast
Data connector	RJ45

Power

Cabinet Max Power consumption (W) (BC)	<86
Max cabinets power daisy chain	16
Cabinet Max Power consumption (W) (AC):	<64
Cabinet Typical Power consumption (W) (AC)	<45
BTU/M2 (AC)	1049
Input voltage	AC100~240 V
Power consumption/M2 (W) (BC)	421
Power consumption/M2 (W) (AC)	314
BTU/M2 (BC)	1406
Black screen power cons. (W)	<38

Miscellaneous Toggle

Regulatory approvals	CCC, CE, ETL, FCC, SASO, UKCA, RoHS,
Warranty	36 months

Operating conditions Toggle

Working environment (indoor/outdoor)	Indoor
Temperature range (storage)	-40–60 °C
Humidity range (operation)[RH]	10%–90% RH
Humidity range (storage) [RH]	10%–70% RH
Temperature range (operation)	-10–45 °C

Picture/Display Toggle

Bit-depth (bit)	13
Colour temperature adjust range	3000–10000
Calibration (brightness/colour)	Colour and Brightness
Viewing angle (horizontal)	160 degree
Refresh rate (Hz)	3840 Hz
Frame frequency (Hz)	50–60
Brightness (nits)	600 nit
Brightness Uniformity	>=97%
Viewing angle (°) H/V	160°
Viewing angle (vertical)	160 degree
Contrast ratio (typical)	5000:1
Colour temperature default	6500 ± 500
Colour temperature (K) adjust range (by software)	3000–10000

Module

LED type	COB
LED lifetime(Hrs)	100,000 hours
Module size (W x H in mm)	150 x 168.75
Pixel pitch (mm)	0.9375
Pixel constitution	1R1G1B Flip Chip
Weight (kg)	0.15
LED Pole type	Common cathode
Black screen power saving	Yes
Module resolution (WxH pixels)	160 x 180

Packaging Data Toggle

Net Weight (Product excluding accessories and packaging in kg)	<4.8 kg
Packing Total weight Cardboard/paper (in grams)	1100 ± 100
Packing Total weight Plastics (LDPE/EPE/HDPE/PVC/ in grams)	400 ± 100
Package size (W x H x D mm)	822 x 461 x 99
Gross weight (full product, incl. accessories and packaging in kg)	6.3 ± 0.2
