27HDL3093IP/00

3000 Series / L-Line

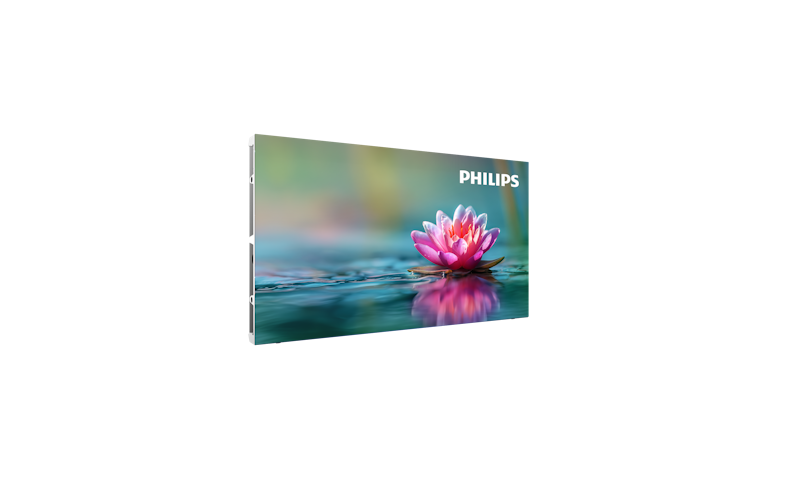

The Philips Unite 3000 Series redefines back-to-basics LED performance. Easy on your bottom line and on the eye, bringing better picture quality, better colour uniformity and better refresh rates to truly stand out from the competition.

Size: 27”

Get a quote

Cabinet

Weight (kg)	4.0±0.4 kg
Cabinet area (m2)	0.2052 m²
Cabinet Size (W x H x D in mm)	600 x 337.5 x 39.75 mm
Receiving card brand	NovaStar
Cabinet resolution (W x H)	640 x 360 mm
Power connector	3 pin locking Reunion
Cabinet construction	Die-casting aluminium
Data connector	RJ45
Cabinet diagonal (inch)	27"

Power

Typical power cons. (W)	22 W
Max. power cons. AC (W)	65 W
Input voltage	AC 100–240 V
BTU/M2	<1095

Miscellaneous Toggle

Warranty	3 years
Spare modules CTN	9HDL3093IM/00 9HDL3012IM/00 9HDL3015IM/00 9HDL3118IM/00
Regulatory approvals	CE, ETL, FCC, RoHS, CB, WEEE, CA RoHS, CA65, Reach,

Picture/Display Toggle

Colour temperature adjust range	3000-10,000 K
Colour uniformity	±0.003 Cx,Cy
Colour temperature default	9300 K±200
Colour coordinates	x:0.285±0.003, y:0.293±0.003
Brightness Uniformity	≥95%
Brightness (nits)	600 nit
Viewing angle (°) H/V	160°
Bit-depth (bit)	13+3 by software
Refresh rate (Hz)	3840 Hz
Contrast ratio	10000:1
Frame frequency (Hz)	60 Hz
Calibration (brightness/colour)	Colour

Operating conditions Toggle

Working environment (indoor/outdoor)	Indoor
Temperature range (storage)	-20 to 60° °C
Humidity range (operation)[RH]	10%–90% RH
Temperature range (operation)	-10 to 40 °C
Humidity range (storage) [RH]	10%–90% RH

Module

Module resolution (WxH pixels)	160 x 180
LED type	COB
Flatness	≤0.1 mm
Pixel pitch (mm)	0.9375
LED lifetime(Hrs)	100,000 hours
Module size (W x H in mm)	150 x 168.75 mm
Pixel constitution	RGB Flip Chip

Packaging Data Toggle

Net weight	4 kg
Package size (W x H x D mm)	750 x 410 x 140 mm
Gross weight	5 kg
