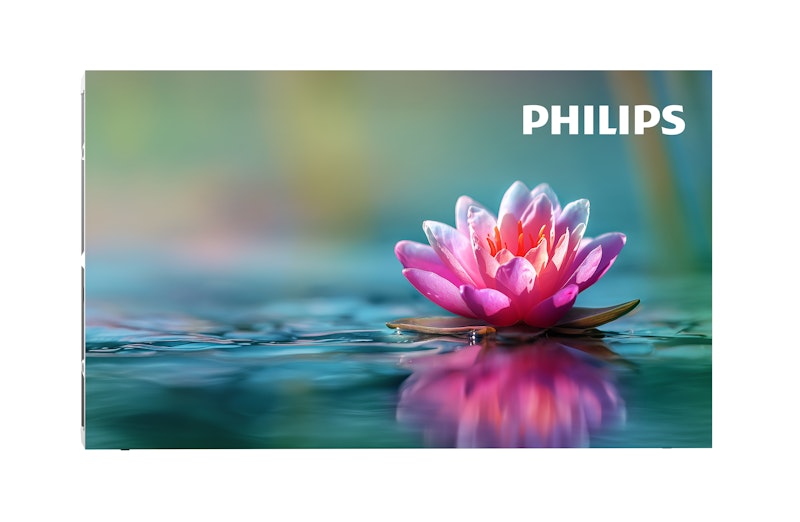

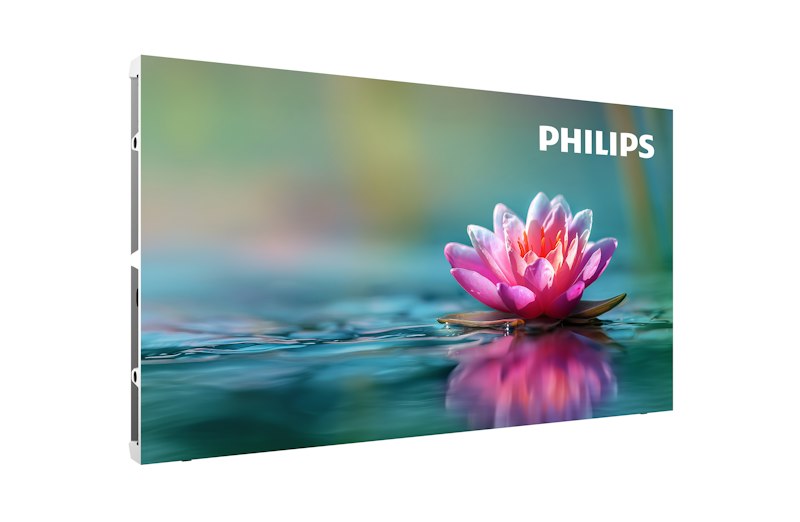

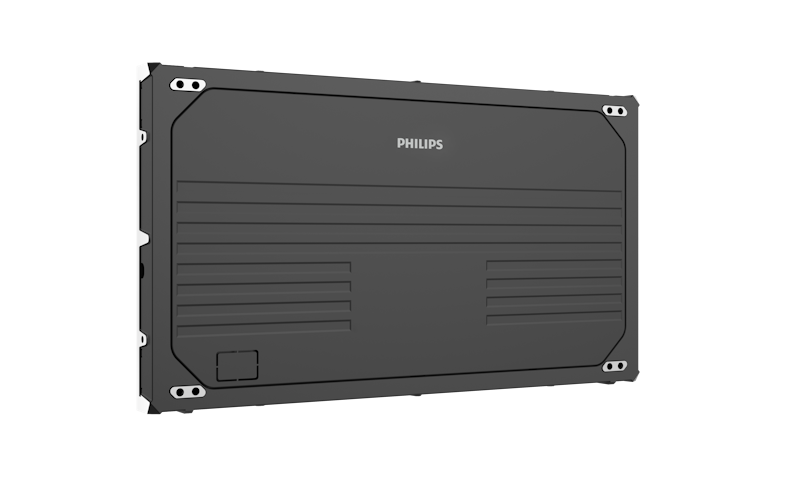

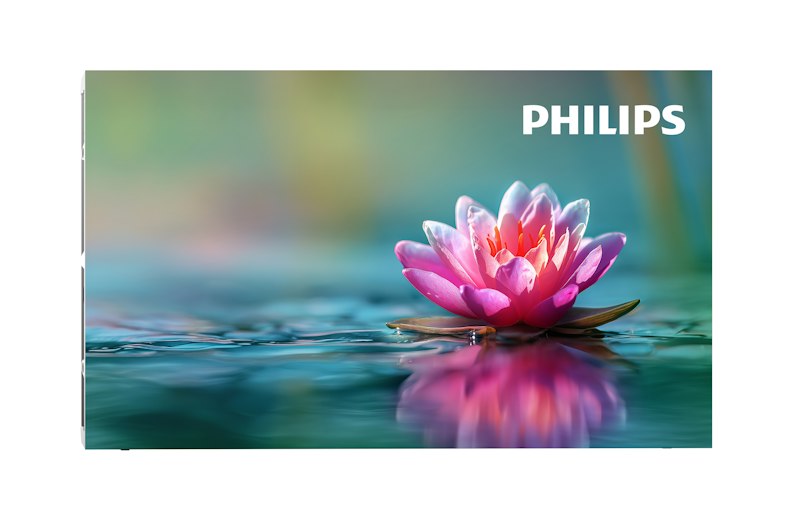

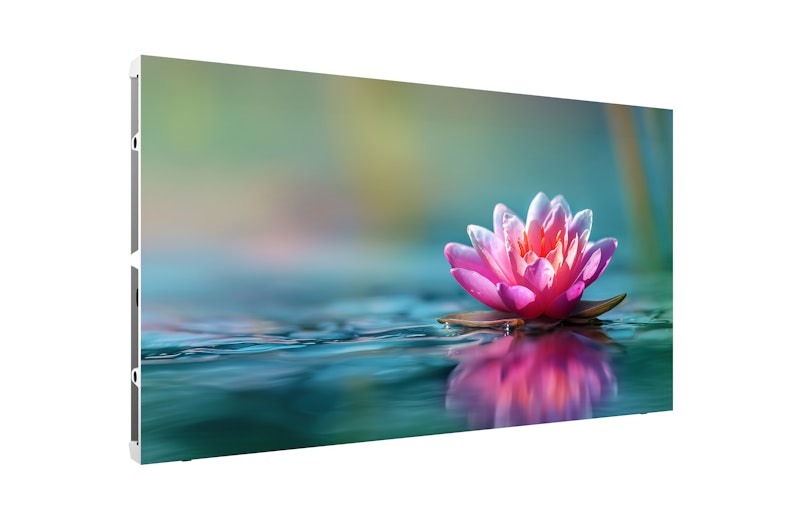

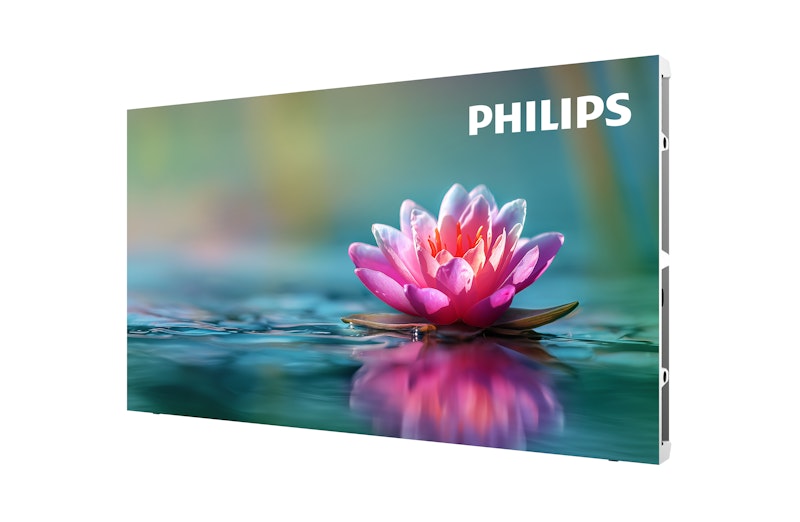

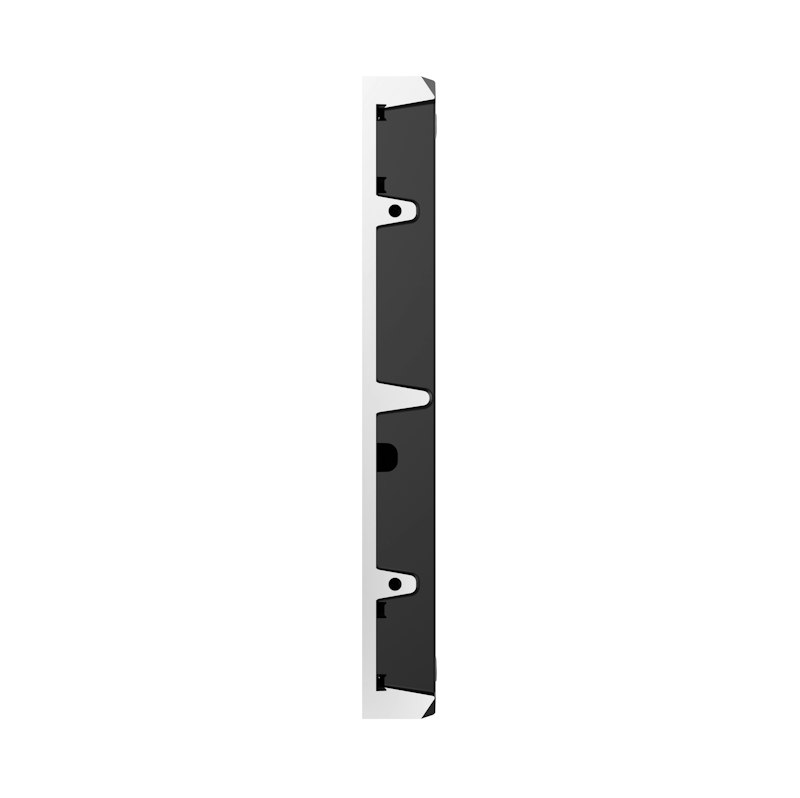

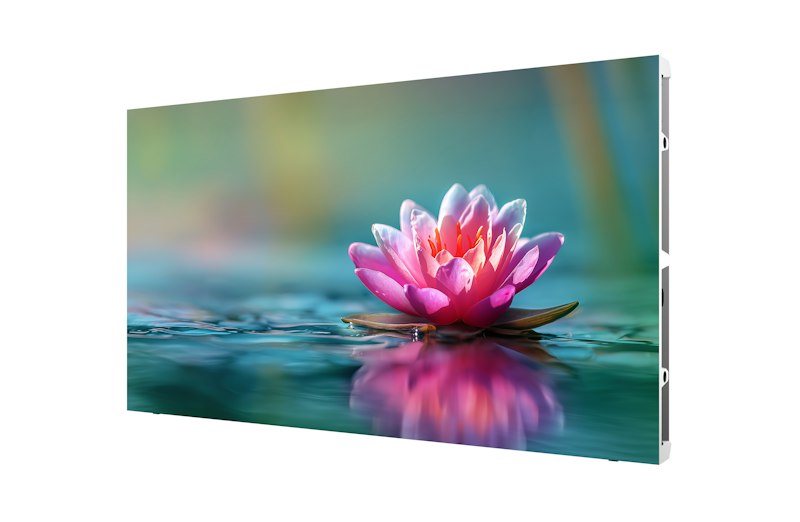

27HDL3015IP/00

3000 Series / L-Line

The Philips Unite 3000 Series redefines back-to-basics LED performance. Easy on your bottom line and on the eye, bringing better picture quality, better colour uniformity and better refresh rates to truly stand out from the competition.

Size: 27”

Get a quote

Cabinet

Power connector	3 pin locking Reunion
Cabinet resolution (W x H)	384 x 216 mm
Cabinet diagonal (inch)	27"
Receiving card brand	NovaStar
Cabinet construction	Die-casting aluminium
Data connector	RJ45
Cabinet Size (W x H x D in mm)	600 x 337.5 x 39.75 mm
Cabinet area (m2)	0.2052 m²
Weight (kg)	4.0±0.4 kg

Power

Max. power cons. AC (W)	57 W
Input voltage	AC 100–240 V
Typical power cons. (W)	19 W
BTU/M2	<960

Operating conditions Toggle

Humidity range (storage) [RH]	10%–90% RH
Temperature range (operation)	-10 to 40 °C
Humidity range (operation)[RH]	10%–90% RH
Temperature range (storage)	-20 to 60° °C
Working environment (indoor/outdoor)	Indoor

Miscellaneous Toggle

Regulatory approvals	CE, ETL, FCC, RoHS, CB, WEEE, CA RoHS, CA65, Reach,
Warranty	3 years
Spare modules CTN	9HDL3093IM/00 9HDL3012IM/00 9HDL3015IM/00 9HDL3118IM/00

Picture/Display Toggle

Frame frequency (Hz)	60 Hz
Contrast ratio	10000:1
Refresh rate (Hz)	3840 Hz
Colour temperature default	9300 K±200
Colour uniformity	±0.003 Cx,Cy
Colour temperature adjust range	3000-10,000 K
Bit-depth (bit)	13+3 by software
Calibration (brightness/colour)	Colour
Brightness Uniformity	≥95%
Brightness (nits)	600 nit
Viewing angle (°) H/V	160°
Colour coordinates	x:0.285±0.003, y:0.293±0.003

Module

Pixel pitch (mm)	1.5625
Pixel constitution	RGB Flip Chip
Flatness	≤0.1 mm
Module resolution (WxH pixels)	96 x 108
LED lifetime(Hrs)	100,000 hours
LED type	COB
Module size (W x H in mm)	150 x 168.75 mm

Packaging Data Toggle

Gross weight	5 kg
Net weight	4 kg
Package size (W x H x D mm)	750 x 410 x 140 mm
