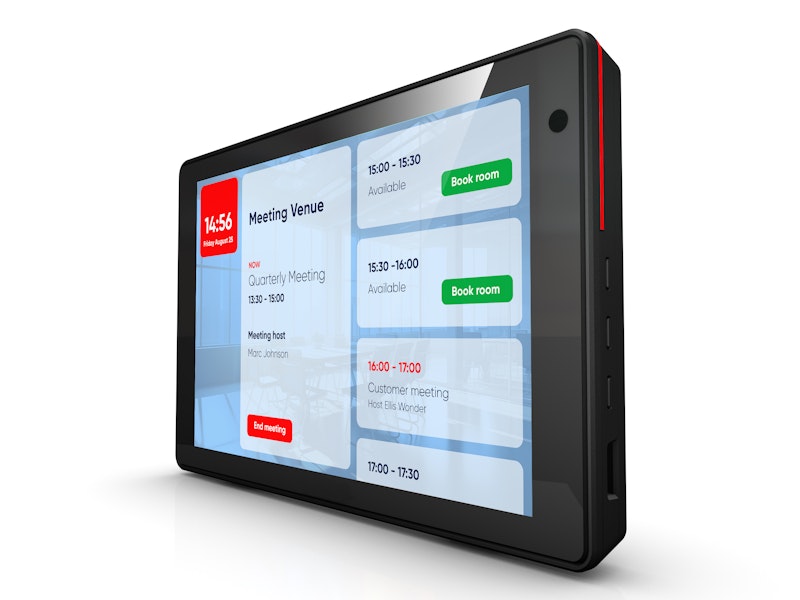

10BDL5051T/00

5000 Series / T-Line 10"

From room bookings and wayfinding to shelf advertising, this ultra-clear multi-touch smart display is ideal when space is at a premium. Power over Ethernet allows for flexible placement while the Android SoC enables versatile solutions.

Size: 10”

Get a quote

Connectivity Toggle

External control	RJ45
Video output	HDMI
Other connections	micro SD, USB 2.0, USB C,
Audio output	3.5 mm jack

Convenience Toggle

Network controllable	Wi-Fi, BT 5.0, Ethernet,
Other convenience	G sensor, NFC, Kensington lock,
Programmable side LED	3 sides
Keyboard control	Hidden, Lockable,
Screen-saving functions	Low brightness
Placement	Landscape, Portrait,
Picture performance	Advanced colour control

Accessories Toggle

Included Accessories	AC power adapter, Quick start guide, USB A to C cable, HDMI cable,

Internal Player Toggle

Wi-Fi	802.11 ac/a/b/g/n, 2.4/5 GHz,
CPU	RK3568
Storage	16 GB EMMC
Memory	2 GB DDR4

Dimensions Toggle

Set Depth	24.75 mm
Set Depth (inch)	0.97 inch
Product weight	0.8 kg
Product weight (lb)	1.63 lb
Set Width (inch)	10.32 inch
Set Height (inch)	6.46 inch
Set Width	262 mm
Bezel width (L/R, T/B)	22, 14
Set Height	164 mm
Wall Mount	75 x 75 mm

Sound

Built-in speakers	2 x 1.5 W

Power

Consumption (Typical)	4 W
Mains power	DC12V +/- 5%, 2A, IEEE 802.03at PoE+
Consumption (Max)	18 W
Standby power consumption	<0.5 W

Miscellaneous Toggle

Warranty	3 year warranty
Regulatory approvals	CE, FCC, Class A, RoHS, CB, ETL,
On-Screen Display Languages	Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese,

Operating conditions Toggle

MTBF	50,000 hour
Temperature range (storage)	-10 ~ 60 °C
Altitude	0 ~ 3000 m
Humidity range (storage) [RH]	10-85%
Temperature range (operation)	0 ~ 40 °C
Humidity range (operation)[RH]	30-80%

Picture/Display Toggle

Viewing angle (horizontal)	160 degree
Aspect ratio	16:10
Operating system	Android 13
Response time (typical)	35 ms
Panel resolution	1280 x 800
Diagonal screen size (inch)	10.1'' inch
Contrast ratio (typical)	1000:1
Viewing angle (vertical)	160 degree
Optimum resolution	1280 x 800
Display colours	16.7 million
Diagonal screen size (metric)	25.6 cm
Brightness	350 cd/m²

Interactivity Toggle

Touchpoints	10 simultaneous touch points
Multi-touch technology	Projected capacitive
Protection glass	0.7 mm tempered safety glass, Tempered safety glass 7 MOHS,
