65BDL3511Q/02
3000 Series / Q-Line
Inform and enthral with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need.
Size: 65”
Connectivity
| External control | IR 3.5 mm jack, RJ45, RS232C 2.5 mm jack, |
|---|---|
| Video input | DVI-I, HDMI 2.0, USB 2.0, |
| Audio input | 3.5 mm jack |
| Audio output | 3.5 mm jack |
Convenience
| Keyboard control | Hidden, Lockable, |
|---|---|
| Signal loop through | RS232, IR Loop through, |
| Start-up | Switch on delay, Switch on status, Boot on source, |
| Placement | Landscape, Portrait, |
| Energy-saving functions | Smart Power |
| Tiled Matrix | Up to 10 x 15 |
| Network controllable | RS232, RJ45, |
| Remote control signal | Lockable |
| Start-up window | enable/disable Philips logo |
| Ease of installation | Smart Insert |
Accessories
| Included Accessories | IR sensor cable, Philips logo, AC power cord, AC Switch Cover, Quick start guide, Remote control and AAA batteries, RS232 daisy chain cable, USB Cover and screw x 1, Wire Clamper, |
|---|
Dimensions
| Bezel width | 14.9 mm |
|---|---|
| Product weight (lb) | 61.29 lb |
| Set Height (inch) | 32.96 inch |
| Set Width | 1462.3 mm |
| Set Width (inch) | 57.57 inch |
| Product weight | 27.80 kg |
| Set Depth | 68.9 mm/89.9 mm mm |
| Set Depth (inch) | 2.71 / 3.54 inch |

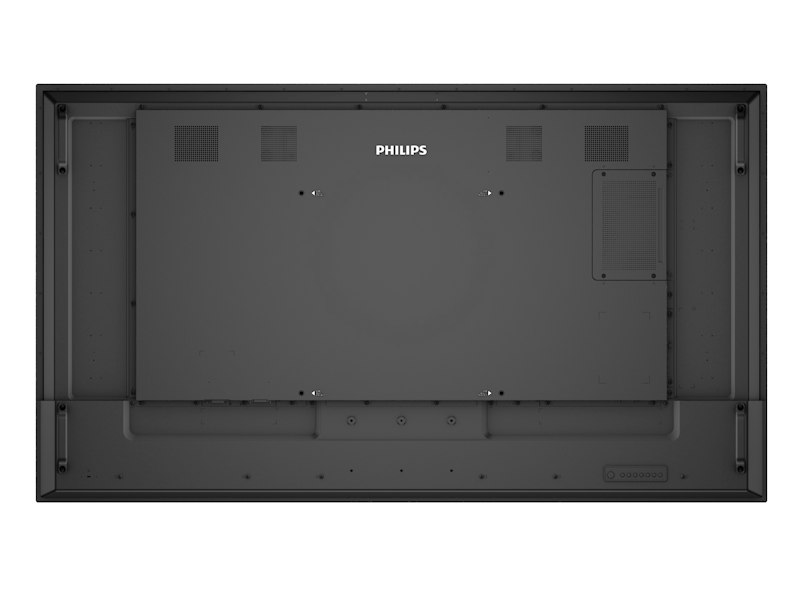

| Wall Mount | 400 x 400 mm, M8 |
| Set Height | 837.3 mm |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Power
| Mains power | 100–240 V~, 50/60 Hz |
|---|---|
| Standby power consumption | <0.5 W |
| Energy Label Class | G |
| Power Saving Features | Smart Power |
| Consumption (Typical) | 165 W |
| Consumption (Max) | 220 W |
Multimedia Applications
| USB Playback Picture | BMP, JPEG, PNG, |
|---|---|
| USB Playback Video | H.264, JPEG, MPEG, WMV3, |
| USB Playback Audio | AAC, WMA, MPEG, HEAAC, |
Operating conditions
| Temperature range (storage) | -20 ~ 60 °C |
|---|---|
| Altitude | 0 ~ 3000 m |
| Humidity range (operation)[RH] | 20~80% RH |
| Humidity range (storage) [RH] | 5~95% RH |
| Temperature range (operation) | 0 ~ 40 °C |
| MTBF | 50,000 hour |
Miscellaneous
| Warranty | 3 year warranty |
|---|---|
| Regulatory approvals | CE, FCC, Class A, CB, BSMI, VCCI, CU, ETL, EMF, PSB, |
| On-Screen Display Languages | Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese, |
Picture/Display
| Response time (typical) | 8 ms |
|---|---|
| Diagonal screen size (inch) | 64.5 inch |
| Haze | 25% |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle (vertical) | 178 degree |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Display colours | 1.07 Billion |
| Panel technology | IPS |
| Dynamic contrast ratio | 500,000:1 |
| Viewing angle (horizontal) | 178 degree |
| Aspect ratio | 16:9 |
| Pixel pitch | 0.372 x 0.372 mm |
| Panel resolution | 3840 x 2160 |
| Diagonal screen size (metric) | 163.9 cm |
| Brightness | 400 cd/m² |
| Clinical image | D-Image preset |
Supported Display Resolution
| Video formats | 480i, 60 Hz, 480p, 60 Hz, 576p, 50 Hz, 576i, 50 Hz, 720p, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, 3840 x 2160, 30Hz, 3840 x 2160, 60 Hz, |
|---|---|
| Computer formats | 640 x 480, 60, 67, 72, 75 Hz, 720 x 400, 70 Hz, 800 x 600, 56, 60, 72, 75 Hz, 832 x 624, 75 Hz, 1024 x 768, 60, 70, 75 Hz, 1152 x 864, 75 Hz, 1152 x 870, 75 Hz, 1280 x 720, 60 Hz, 1280 x 800, 60 Hz, 1280 x 1024, 60 Hz, 1440 x 900, 60 Hz, 1600 x 1200, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, |
