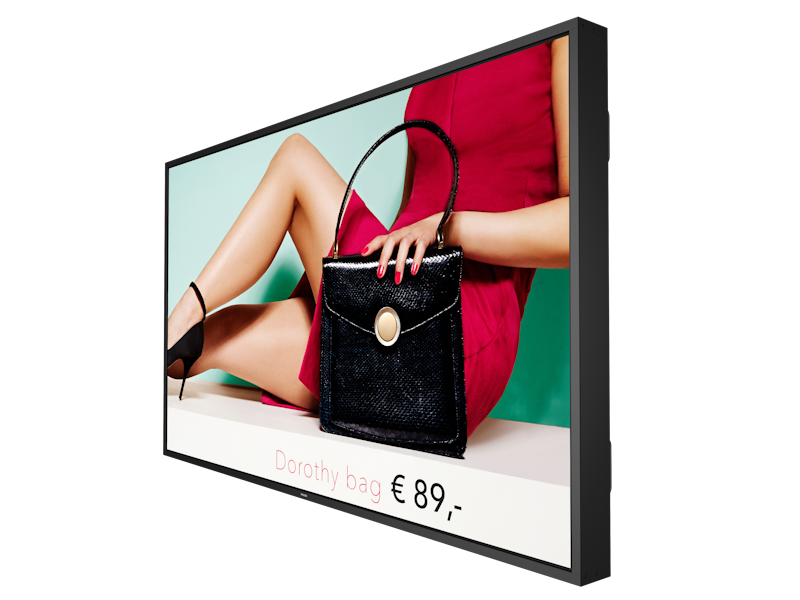

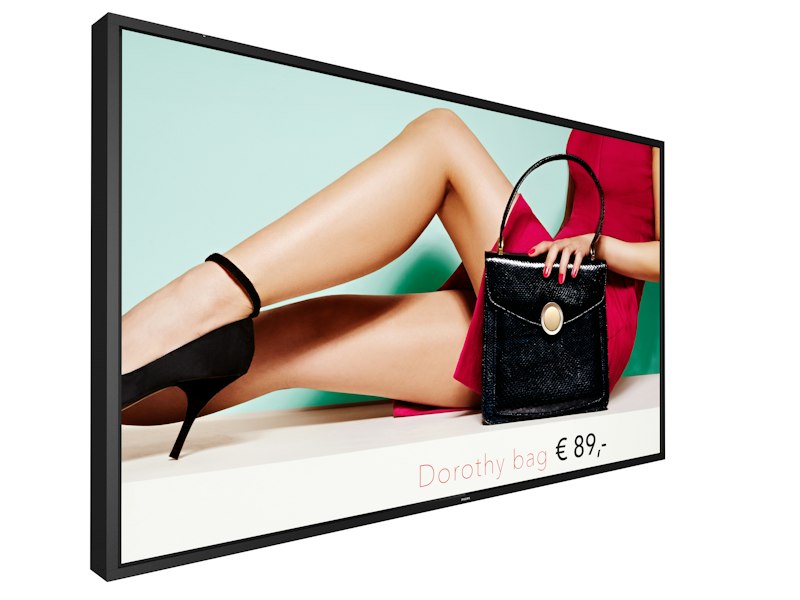

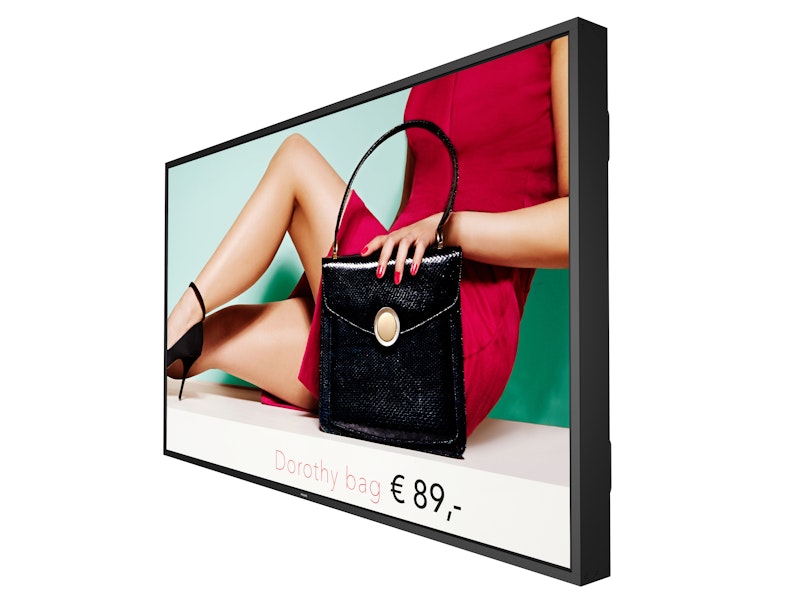

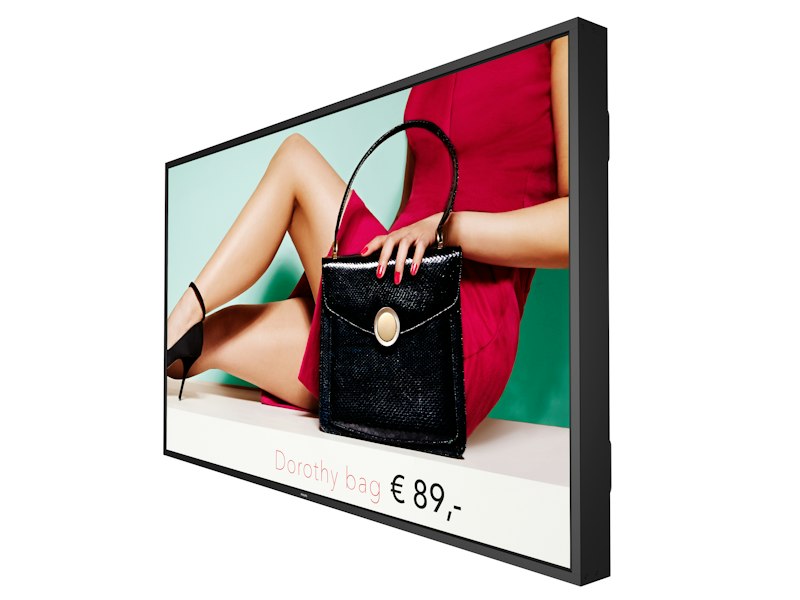

4000 Series / H-Line
Stay visible day and night with Philips H-Line high bright displays. Astonishing clarity and contrast make these a perfect solution to showcase engaging content in windows and lighter locations, from airports to shopping centres and more.
Size: 75”
Connectivity
| Video output | DisplayPort 1.2, HDMI 2.0, |
|---|---|
| External control | IR 3.5 mm jack, RJ45, RS232C 2.5 mm jack, |
| Audio output | 3.5 mm jack |
| Other connections | OPS, USB 2.0, |
| Audio input | 3.5 mm jack |
| Video input | DisplayPort, DVI-I 1x, HDMI 2.0, |
Convenience
| Remote control signal | Lockable |
|---|---|

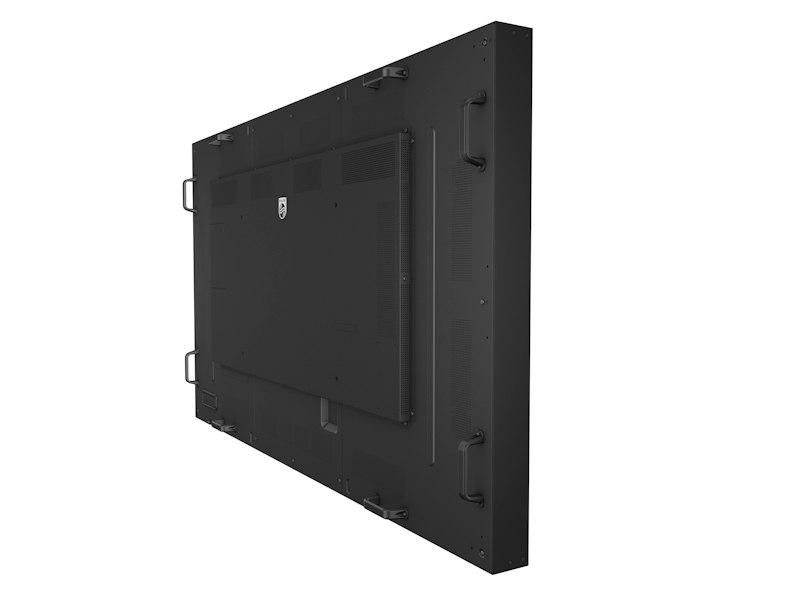

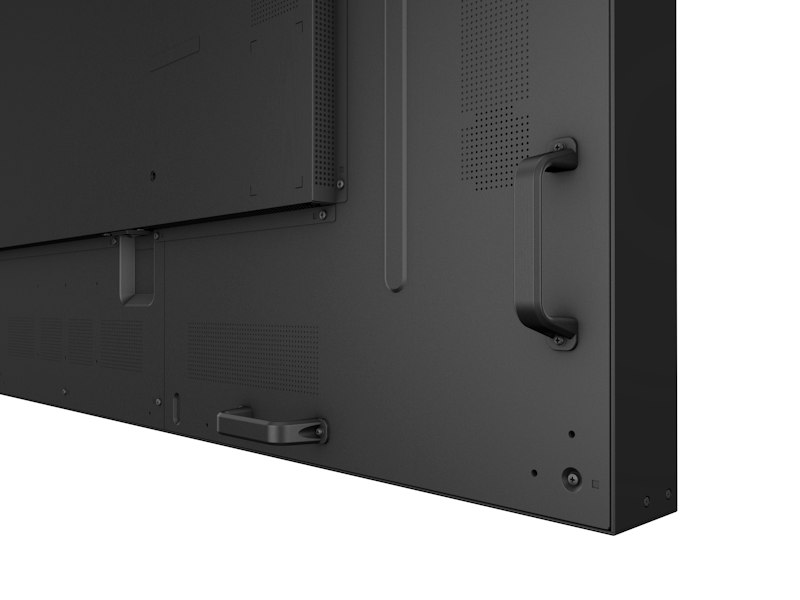

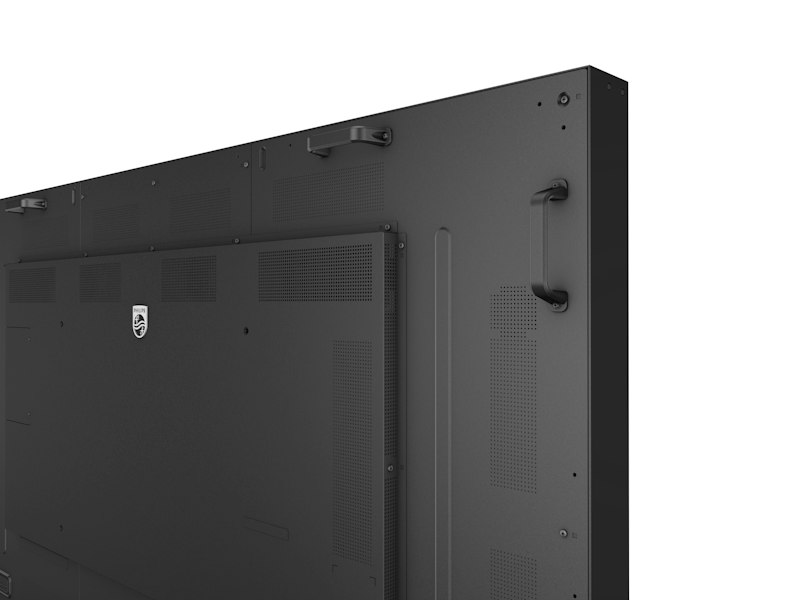

| Ease of installation | Carrying Handles, Smart Insert, |

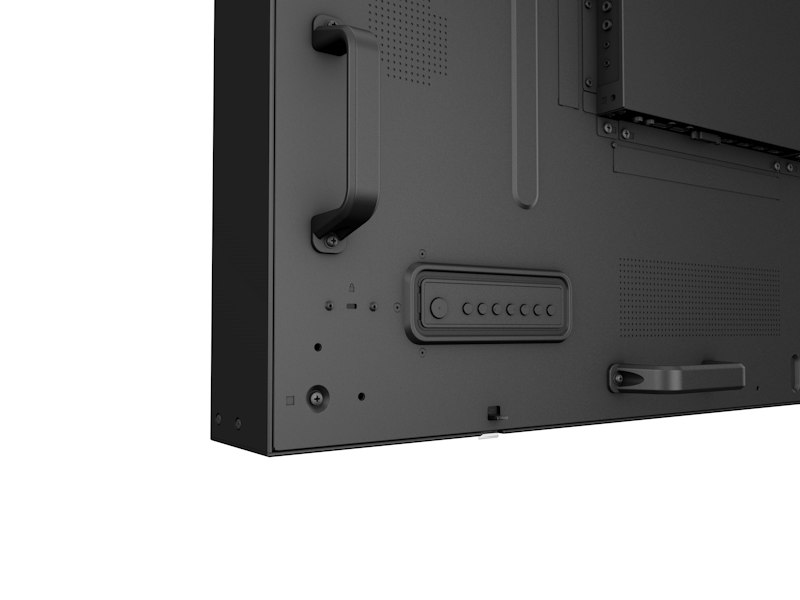

| Keyboard control | Hidden, Lockable, |
| Signal loop through | DisplayPort, RS232, HDMI, IR Loop through, |
| Network controllable | RS232, LAN, |
| Energy-saving functions | Smart Power |

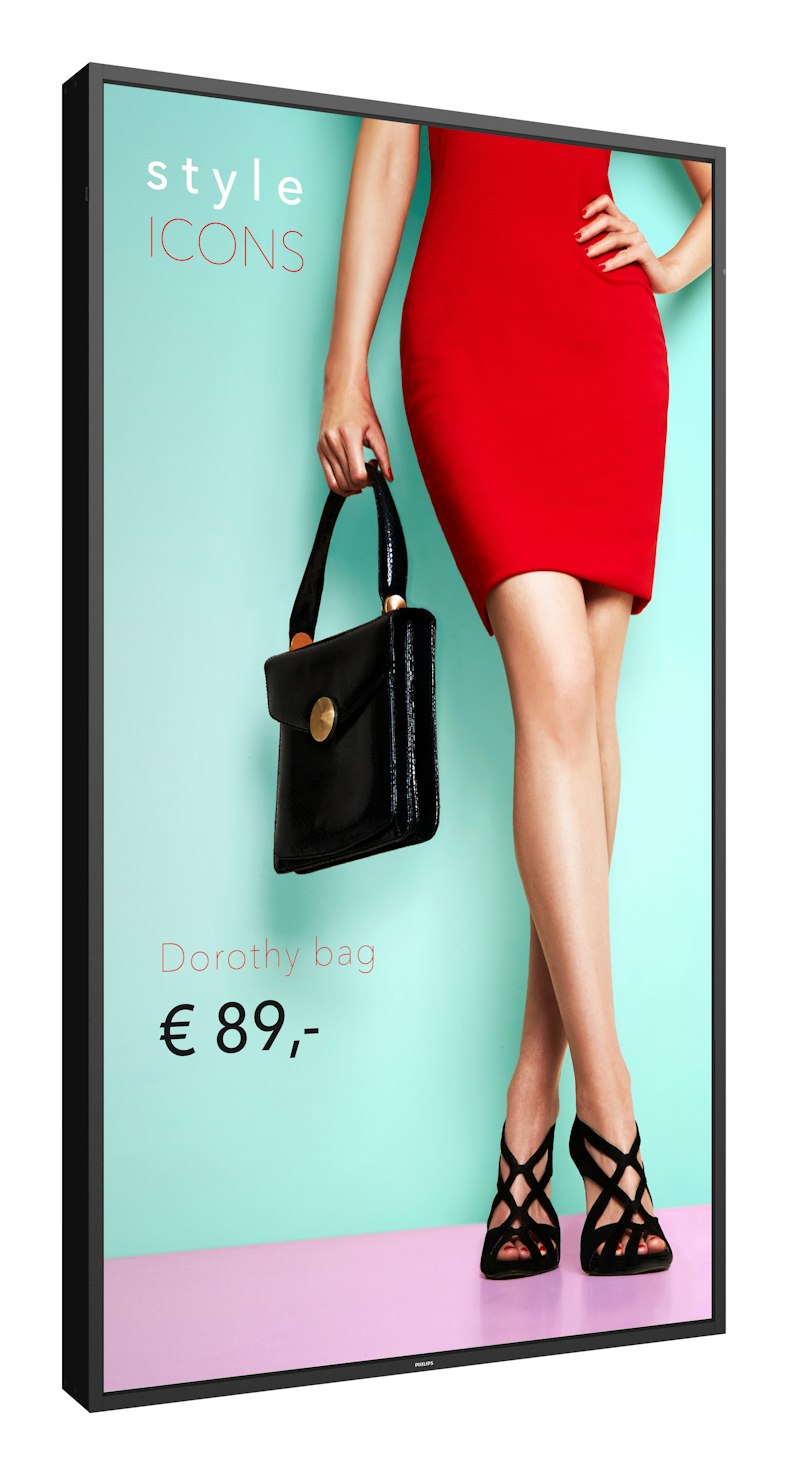

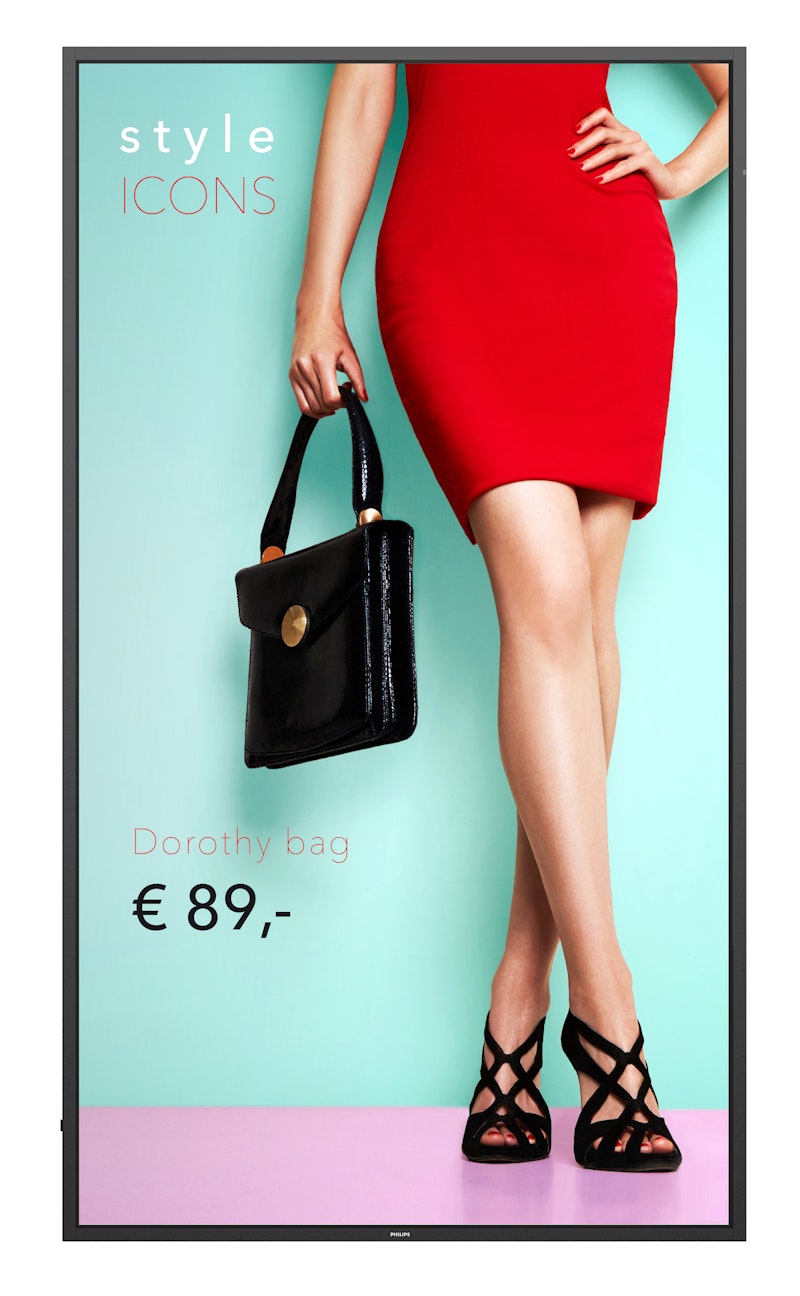

| Placement | Landscape, Portrait, |
| Screen-saving functions | Pixel Shift, Low Brightness |
Accessories
| Included Accessories | Edge Alignment Kit, Philips logo, RS232 daisy-chain cable, Wire Clamper, AC switch cover and Screw x 1, USB cover and screws, AC Power Cord, HDMI cable, IR sensor cable, Open-frame kit, Quick start guide, Remote control and AAA batteries, RS232 cable, |
|---|
Dimensions
| Set Width (inch) | 66.46 inch |
|---|---|
| Product weight | 54.1 kg |

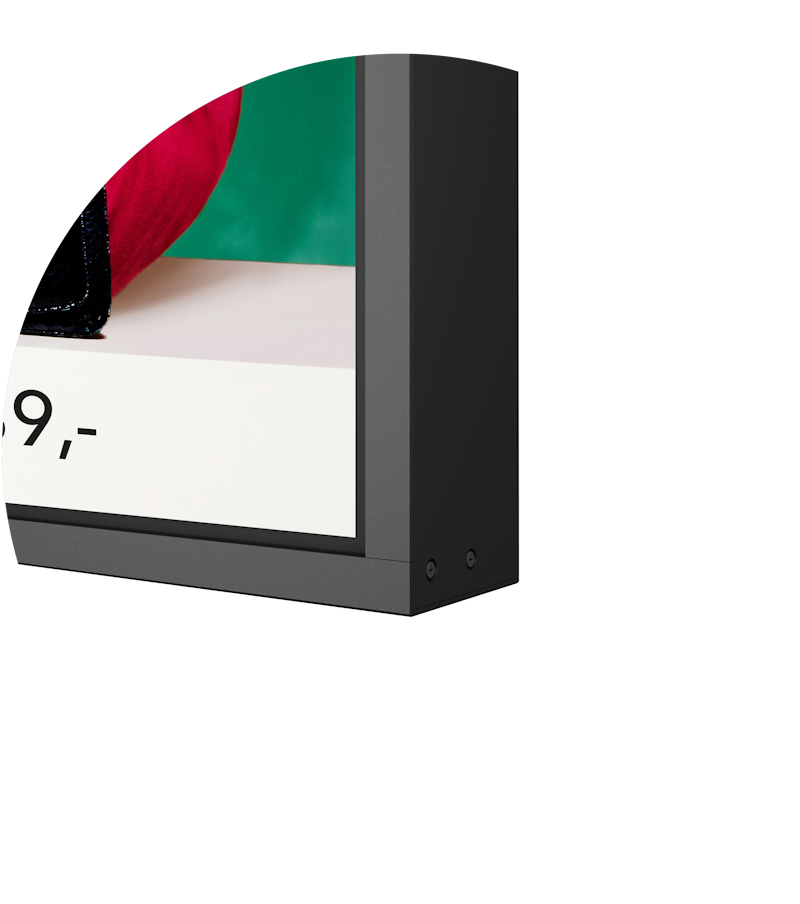

| Bezel width | 18.8 |
| Smart insert height | 300 mm |

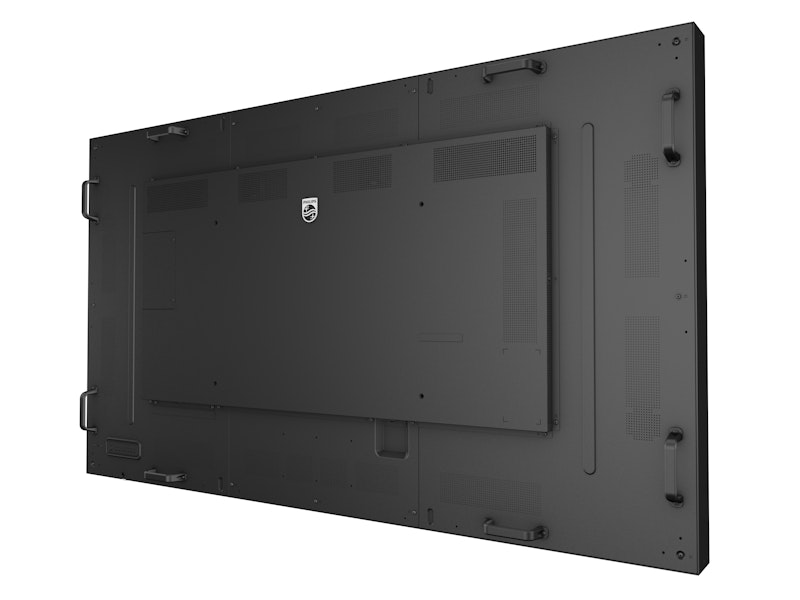

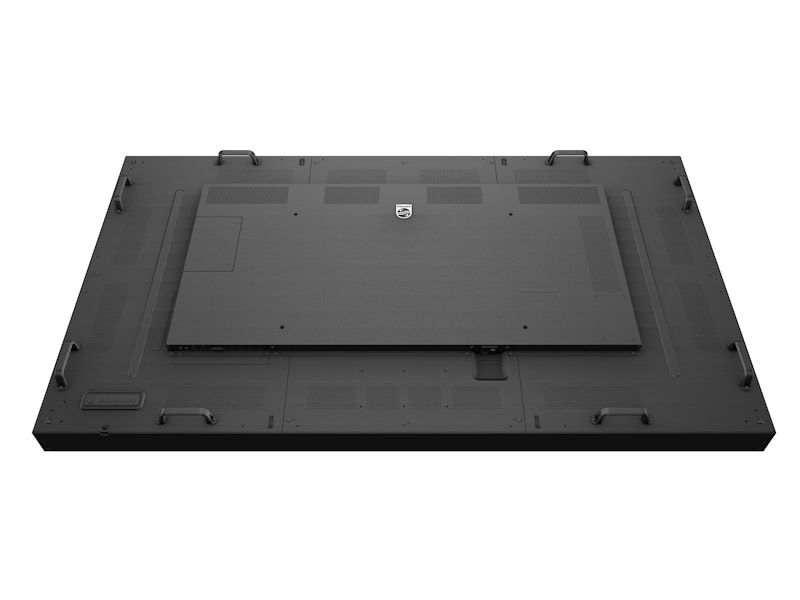

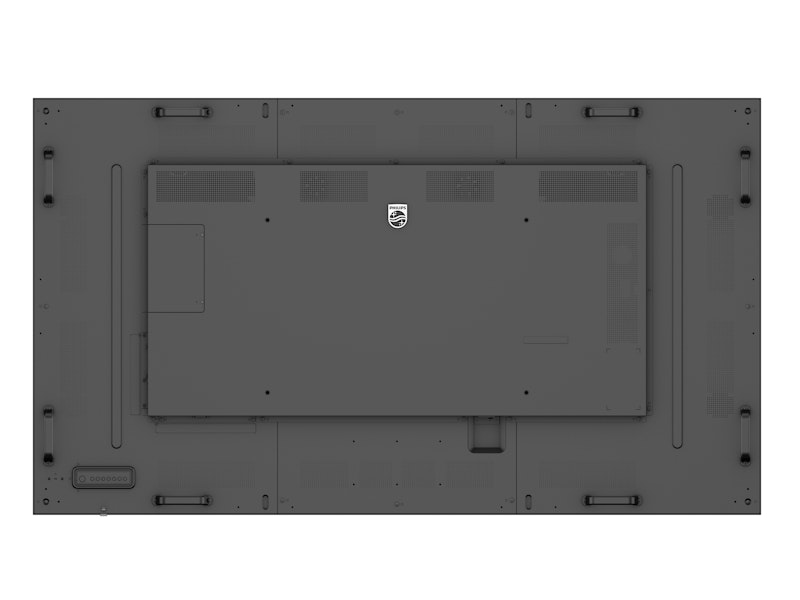

| Wall Mount | 600 x 400 mm, M8 |
| Set Height (inch) | 38.06 inch |
| Smart insert width | 180 mm |
| Product weight (lb) | 119.27 lb |
| Set Depth (inch) | 4.37 inch |
| Set Width | 1688.2 mm |
| Set Height | 966.6 mm |
| Set Depth | 111.1 mm |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Power
| Consumption (Max) | 790 |
|---|---|
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Consumption (Typical) | 510 W |
Multimedia Applications
| USB Playback Picture | BMP, JPEG, PNG, |
|---|---|
| USB Playback Video | AVI, MP4, MPEG, MPG, TTS, VOB, |
Miscellaneous
| On-Screen Display Languages | Arabic, English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese, |
|---|---|
| Warranty | 3 year warranty |
| Regulatory approvals | CE, CB, EAC, UL, |
Operating conditions
| Temperature range (storage) | -20 ~ 60 °C |
|---|---|
| MTBF | 50,000 hour |
| Temperature range (operation) | 0 ~ 40 °C |
| Relative humidity | 20 ~ 80 % |
| Altitude | 0 ~ 3000 m |
| Warning | Do not operate in direct sunlight without additional protective measures. |
Picture/Display
| Panel resolution | 3840 x 2160 |
|---|---|
| Pixel pitch | 0.429 x 0.429 mm |
| Panel technology | IPS |
| Response time (typical) | 8 ms |
| Brightness | 3000 cd/m² |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle (vertical) | 178 degree |
| Diagonal screen size (inch) | 74.5 inch |
| Aspect ratio | 16:9 |
| Dynamic contrast ratio | 500,000:1 |
| Display colours | 1.07 Billion |
| Picture enhancement | 3/2 - 2/2 motion pull down, Progressive scan, Dynamic contrast enhancement, |
| Diagonal screen size (metric) | 189.3 cm |
| Viewing angle (horizontal) | 178 degree |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
Supported Display Resolution
| Video formats | 480i, 30, 60 Hz, 480p, 60 Hz, 576p, 50 Hz, 576i, 25, 50 Hz, 1080i, 25, 30 Hz, 1080p, 50, 60 Hz, 3840 x 2160, 30Hz, 3840 x 2160, 60 Hz, |
|---|---|
| Computer formats | 640 x 480, 60, 67, 72, 75 Hz, 720 x 400, 70 Hz, 800 x 600, 60, 72, 75 Hz, 1024 x 768, 60 Hz, 1280 x 768, 60 Hz, 1280 x 800, 60 Hz, 1280 x 1024, 60 Hz, 1360 x 768, 60 Hz, 1600 x 1200, 60 Hz, 1920 x 1080, 60 Hz, 1920 x 1200, 60 Hz, 3840 x 2160, 30Hz, 3840 x 2160, 60 Hz, |
